galvanised

Display variants as list
Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

  • For brace assembly in combination with pipe clamps

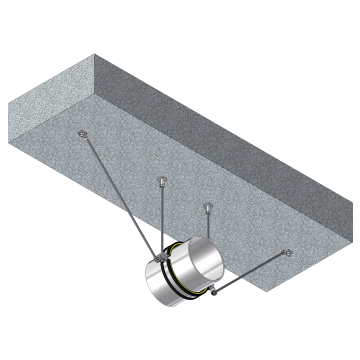

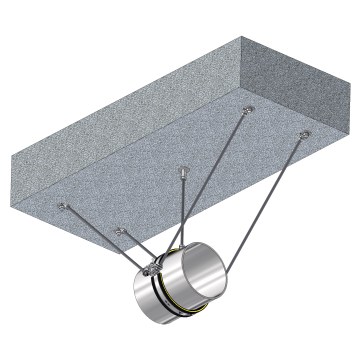

  • For the seismic bracing of pipe supports using threaded rods
  • For use in dry interiors

Advantages

  • For brace assembly in new and retrofit constructions
  • Easy installation: after closing the pipe clamp, the bracing angles are mounted on the protruding threads of the locking screws in the pipe clamp flange and fixed by a locknut
  • High load-bearing capacity and optimum transmission of longitudinal and shear forces
  • Can be combined with single bossed clamps and single bossed clamps heavy-duty version
  • Only slightly tightened, bracing angle can still be rotated

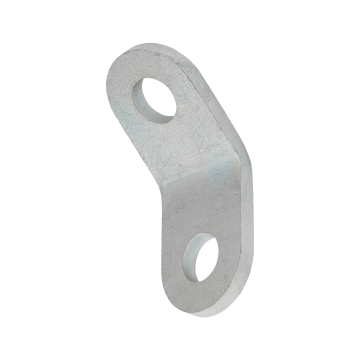

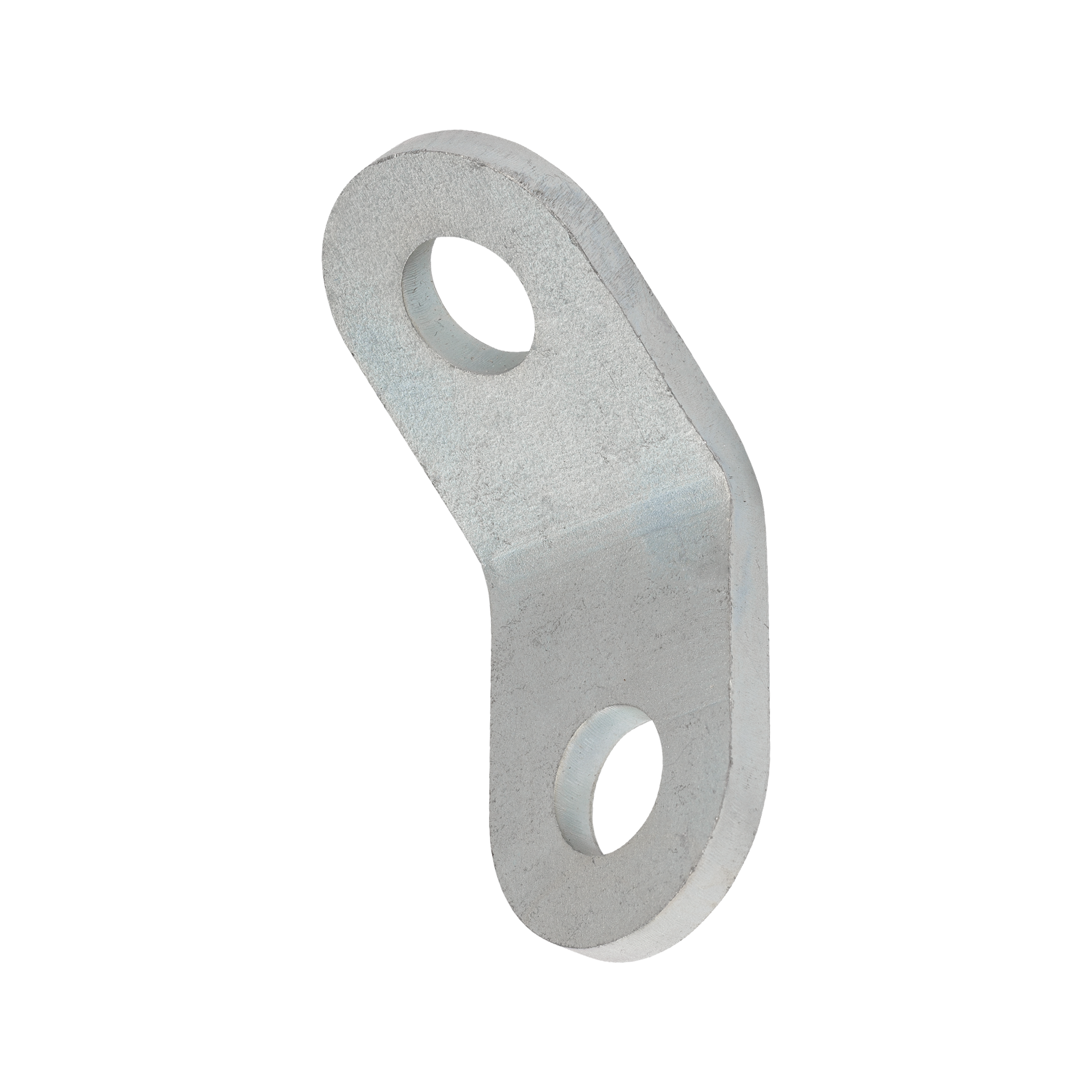

Product type
Angle
Material
Steel
Surface
galvanised
Max. recommended tensile load
3,000 N
Weitere technische Details finden Sie im Datenblatt.
