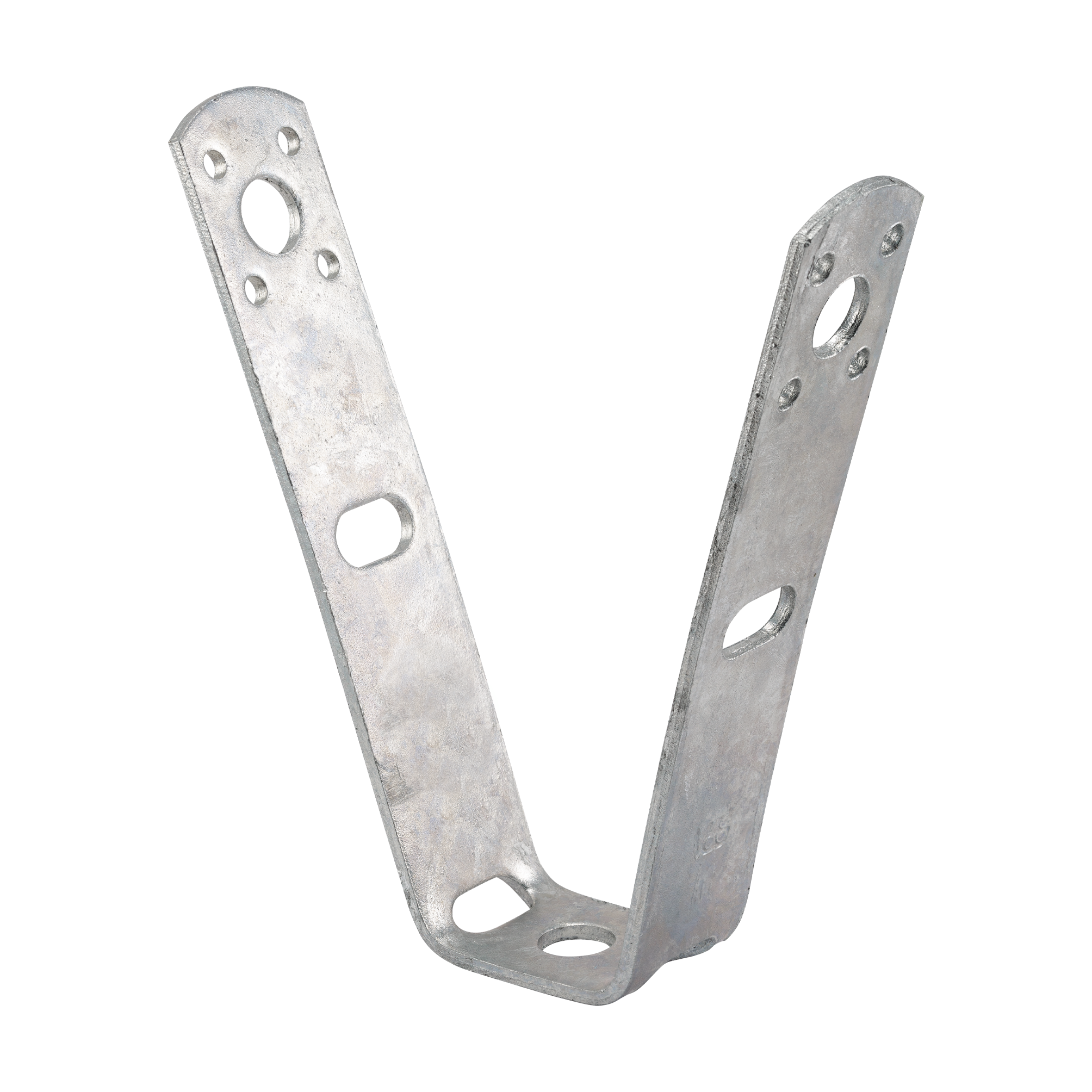

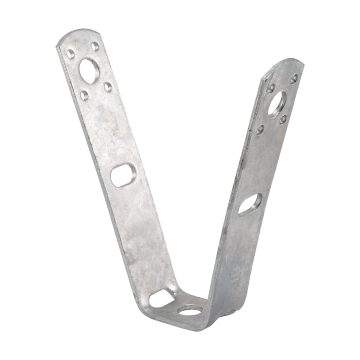

Trapezoid-sheet hanger

Trapezoid-sheet hanger

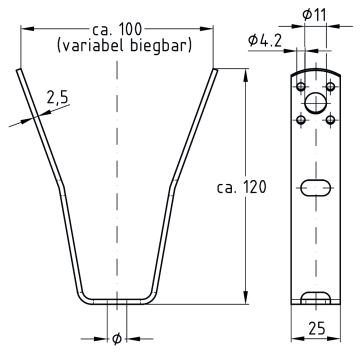

Trapezoid-sheet hanger with unthreaded through-hole 10,5mm, hot-dip galvanised

Art.no.: 130195
Sales unit: 1 Pieces
Weight/item: 0.116 kg
Pieces

Field of application

  • For the professional attachment of installations to trapezoidal sheets

Advantages

  • Attachment using sealing rivets or self-drilling screws to the stays of the corrugations
  • Easy to adapt to different trapezoidal sheet sections due to predetermined bending points
Basic data text:
Trapezoid-sheet hanger with unthreaded through-hole 10,5mm, hot-dip galvanised
Type:
M10
Product type:
Trapezoid-sheet hanger
Material:
Steel
Surface:
hot-dip galvanised
eCl@ss 11.1:
23-15-25-08
eCl@ss 7.1:
23-15-90-05
Max. recommended load:
1,300 N
Customs tariff number:
73269060
