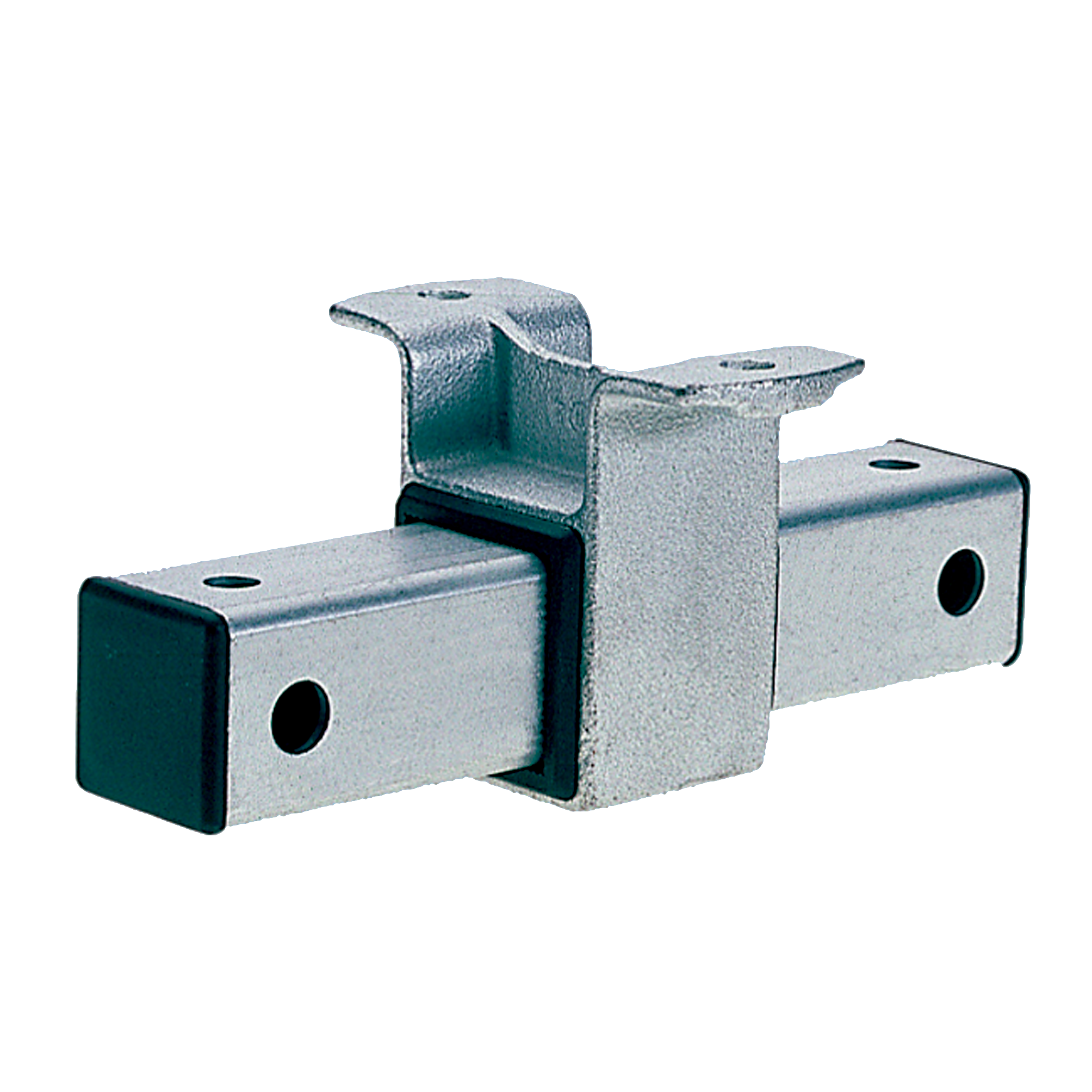

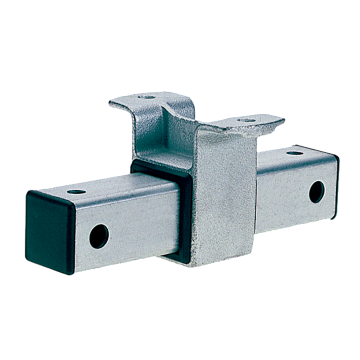

Box-section heavy slide guide 7.8 kN

Box-section heavy slide guide 7.8 kN

Display variants as list

Field of application

  • Suitable for wall fixing with horizontal or vertical pipes
  • Attachment of pipes with thermal, axial expansion
  • Variety of installation possibilities (floor-mount, ceiling-mount, wallmount, rail-mount, cross stay)
  • Suitable for pipes mounted from above and from below

Advantages

  • Smooth-running slide guide for heavy loads
  • Tilt-proof load distribution in standing and suspended installations
  • Variable, height-adjustable pipe clamp attachments using threaded pins
  • Two pipe clamps prevent jamming and misalignment
  • Connection holes for M12 and M16
Product type:
Expansion points
