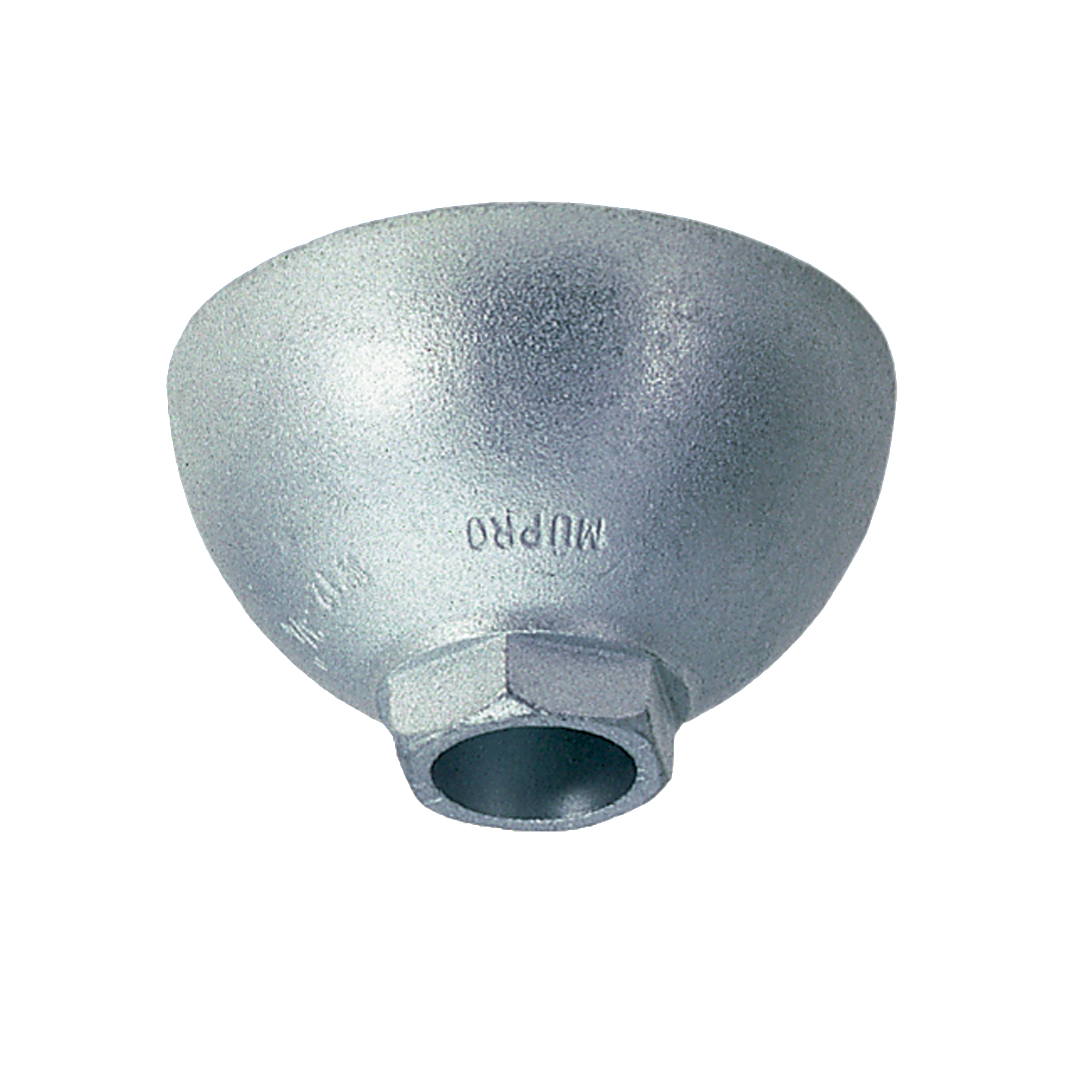

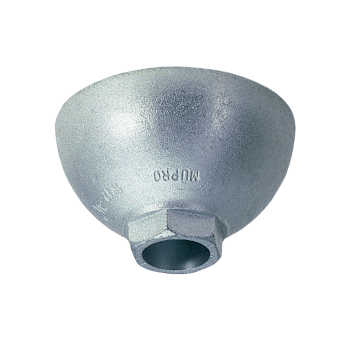

Dome supports

Dome supports

galvanised

Display variants as list

Connecting thread:

M10 M12

Field of application

  • Strong attachment for greater distances from the building structure
  • Version ¾″ suitable for shockresistant attachment of pipes
  • Suitable as anchor point with pipe nipple and single bossed clamp with connecting socket
  • Suitable as expansion point for large distance to wall with pipe nipple and socket adapter

Advantages

  • Bend-proof design even under great axial and radial forces on the pipe
  • Efficient attachment with only one plug
  • Variable mounting distance can be determined on site by the length of the threaded pipe nipple
  • Easy installation using spanner size SW 36
  • Can be combined with pipe clamps with connecting socket
  • Stable extension by means of socket adapters for the connection of single bossed clamps with M10 or M12 thread
Product type:
Anchor points
