PHONOLYT® Anchor points

PHONOLYT® Anchor points

single kit, galvanised

Display variants as list

Type:

dB(A) 27 dB(A) 40

Clamping range:

14 - 18 mm 20 - 22 mm 25 - 28 mm 31 - 35 mm 40 - 43 mm 48 - 52 mm 53 - 57 mm 58 - 61 mm

Field of application

The ideal component for vibration controlled anchor points for pipes to meet the vibration control requirements of DIN 4109 and VDI 4100
Variety of installation possibilities (floor-mount, ceiling-mount, wallmount, rail-mount, cross stay)
Floor mounting of pipe and duct lines
Ideal as vibration-isolated pipeline anchor point for downpipe support or riser pipes

Advantages

Acoustically decouples the pipe from the building structure and reduces the structure-borne noise by up to 40 dB(A)
Practical design facilitates installation
Practical construction for a 2-point fastening of the pipe
Special feature: Also approved for alternating load directions on plastic piping
Continuously adjustable distance from the wall
Silicone-free

Product type:: Anchor points
Vibration control tested:: Yes

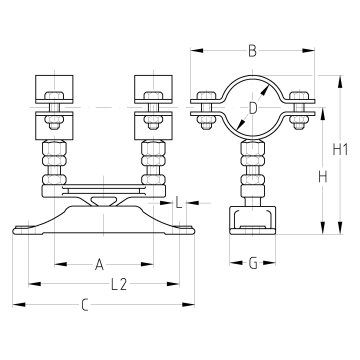

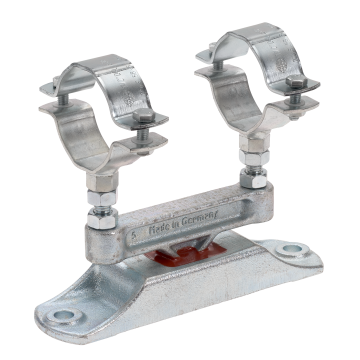

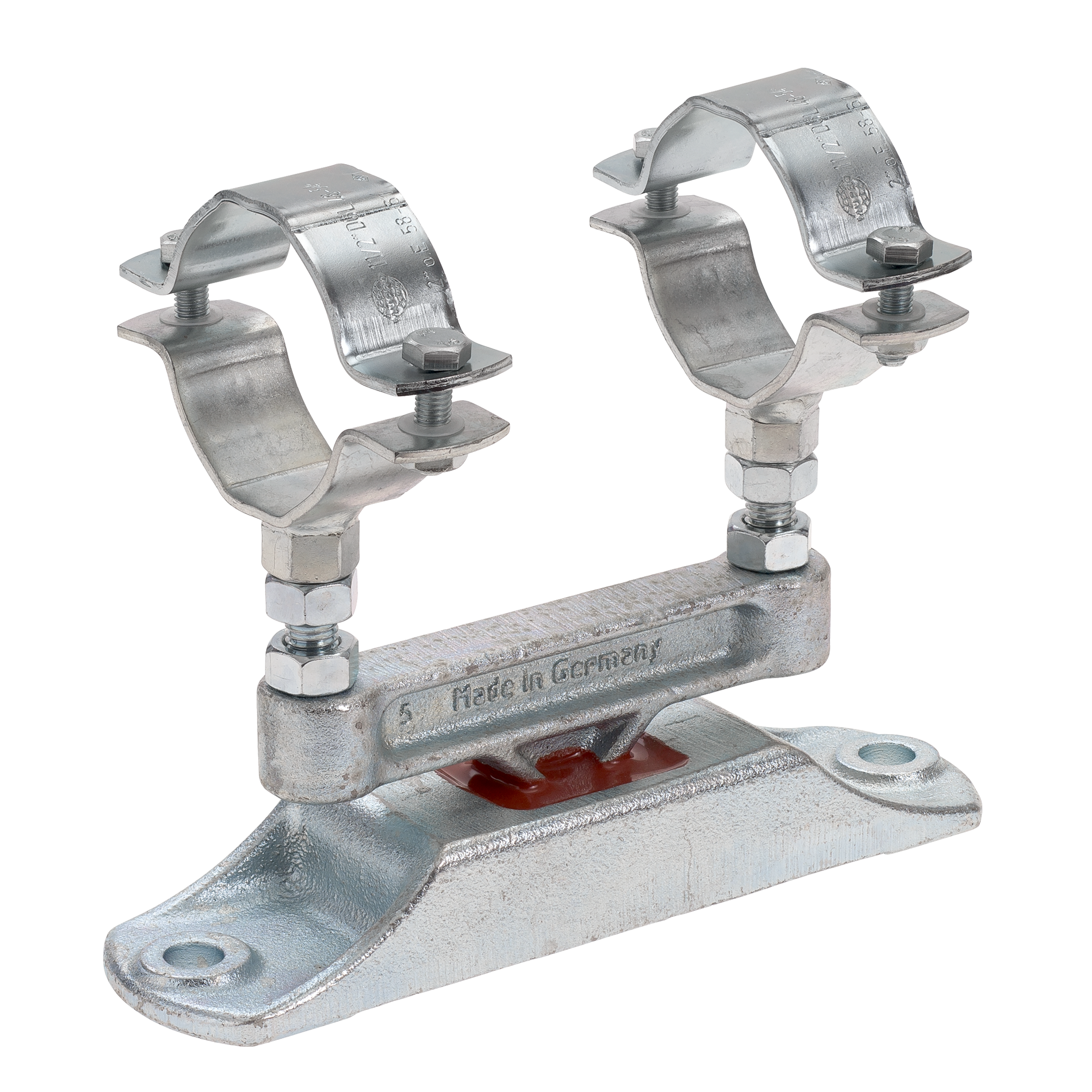

PHONOLYT® Anchor points, single kit, galvanised

	Product number	Type	Clamping range	Action
	120348	dB(A) 27	14 - 18 mm	Pieces
	120340	dB(A) 27	20 - 22 mm	Pieces
	120344	dB(A) 27	25 - 28 mm	Pieces
	120308	dB(A) 27	31 - 35 mm	Pieces
	120304	dB(A) 27	40 - 43 mm	Pieces
	120316	dB(A) 27	48 - 52 mm	Pieces
	120332	dB(A) 27	53 - 57 mm	Pieces
	120312	dB(A) 40	31 - 35 mm	Pieces
	120324	dB(A) 40	40 - 43 mm	Pieces
	120320	dB(A) 40	48 - 52 mm	Pieces
	120336	dB(A) 40	53 - 57 mm	Pieces
	120328	dB(A) 40	58 - 61 mm	Pieces
