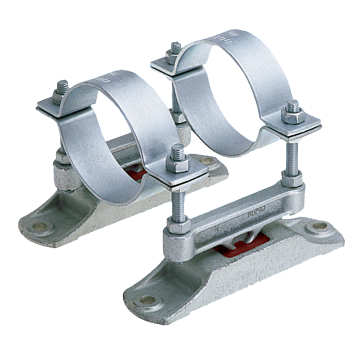

PHONOLYT® Anchor points

double kit, galvanised

Display variants as list

Type:

dB(A) 27 dB(A) 40

Clamping range:

Field of application

The ideal component for vibration controlled anchor points for pipes to meet the vibration control requirements of DIN 4109 and VDI 4100
Variety of installation possibilities (floor-mount, ceiling-mount, wallmount, rail-mount, cross stay)
Floor mounting of pipe and duct lines
Ideal as vibration-isolated pipeline anchor point for downpipe support or riser pipes

Advantages

Isolates the pipe acoustically from the building structure
Practical downpipe support with perfect vibration decoupling
Double kit for high loadings
Special feature: Also approved for alternating load directions on plastic piping
Lowest possible distance from the building structure attainable
Continuously adjustable wall distance due to threaded pins
Practical design made for easy installation
Fixed point for all pipe types, regardless of pipe flanges and bushings
Sound level reduction by up to 40 dB(A)
Silicone-free

Product number	Type	Clamping range	Action
120352	dB(A) 27	32 - 35 mm	Pieces
120356	dB(A) 27	40 - 42.4 mm	Pieces
120360	dB(A) 27	48.3 - 50 mm	Pieces
120371	dB(A) 27	56 - 60.3 mm	Pieces
120408	dB(A) 40	60.3 - 61 mm	Pieces
120413	dB(A) 40	76.1 - 80 mm	Pieces
168462	dB(A) 40	80 - 83 mm	Pieces
120375	dB(A) 40	88 - 90 mm	Pieces
120391	dB(A) 40	110 - 112 mm	Pieces
120365	dB(A) 40	125 - 127 mm	Pieces
120395	dB(A) 40	133 - 135 mm	Pieces
168464	dB(A) 40	137 - 140 mm	Pieces
120399	dB(A) 40	159 - 166 mm	Pieces
168465	dB(A) 40	199 - 202 mm	Pieces
120403	dB(A) 40	210 - 212 mm	Pieces
