STATO® Brackets Slim version | galvanised

STATO® Brackets

STATO® Bracket, small version, galvanised

Display variants as list
Reset selection
Art.no.: 129171
Design: Slim version
Surface: galvanised
Sales unit: 1 Pieces
Weight/item: 3.574 kg
Pieces

Field of application

  • Stable support system with high load-bearing capacity for pipe installations

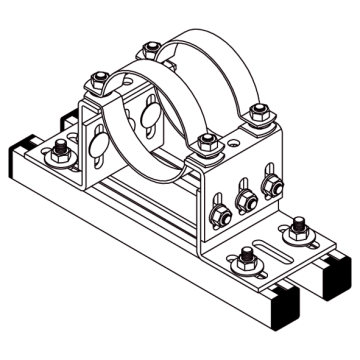

  • Ideal pipe anchor point in combination with STATO® Clamps without lining

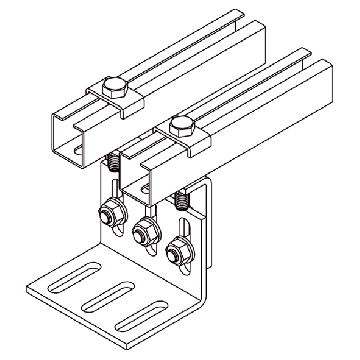

  • Ideal as height adjustable subframe for anchor and expansion assemblies
  • Ideal as an anchor point for insulated chilled water pipes in combination with MÜPRO® Wooden blocks and STATO® Clamps

Advantages

  • Continuously adjustable in height and slope
  • Can be fitted with up to 3 STATO® Clamps in case of heavy loads
  • Especially suitable for heavy pipes with large wall clearances
  • Can be used as a bearing block, adjustable in height and slope
Basic data text:
STATO® Bracket, small version, galvanised
Design:
Slim version

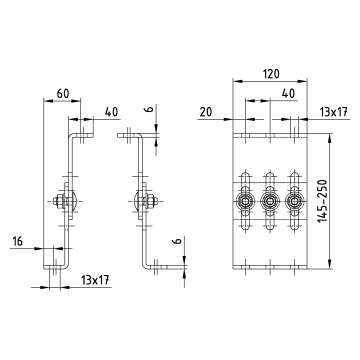

Overall height [mm]:
145 - 250 mm
Product type:
Anchor points
Material:
Steel
Surface:
galvanised
eCl@ss 7.1:
23-35-01-90
eCl@ss 11.1:
23-35-01-90
Scope of supply:

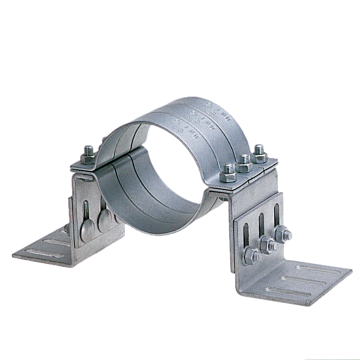

STATO® Brackets 1 kit consisting of: 4 STATO® Angle pieces, 6 Coach bolts M12, 6 Hexagonal nuts M12, 6 Washers for M12. All parts are galvanised.
Adjustment range:
105 mm
Customs tariff number:
73269060
