STATO® clamp, two-piece

galvanised

Display variants as list

Vibration control lining:

DÄMMGULAST® yellow without lining

Pipe outer Ø D:

60.3 mm 70 mm 76.1 mm 82.5 mm 88.9 mm 101.6 mm 108 - 110 mm 114.3 mm 125 - 127 mm 129 mm 133 mm 139.7 mm 145 mm 148.9 mm 152.4 mm 159 mm 165 mm 168.3 mm 177.8 mm 212 mm 219.1 mm 244.5 mm 267 mm 273 mm

Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

Attachment of pipelines with higher load requirements
In combination with the STATO® Bracket useable as the ideal pipeline anchor point

Advantages

High-duty, two-part clamp
The 2 locking screws allow adjustment to accommodate a greater variation in pipe diameter
The matching clamp for STATO® Bracket
Supplied with connecting screws, nuts and captive washers

Product type: Anchor point pipe clamps

Weitere technische Details finden Sie im Datenblatt.

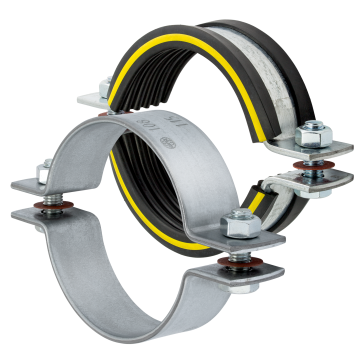

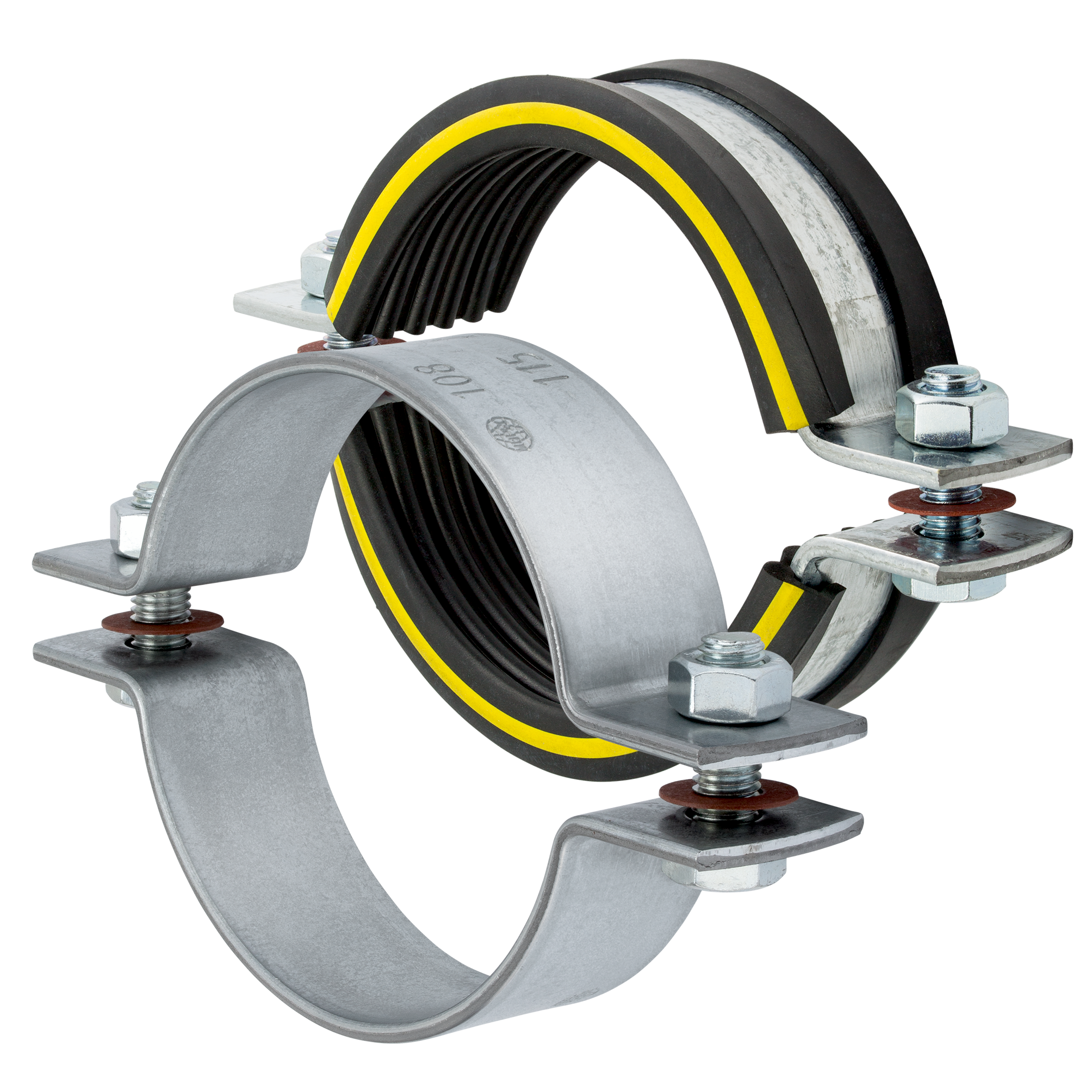

STATO® Clamps, two-piece, with DÄMMGULAST® yellow, galvanised

STATO® Clamps, two piece, without lining, galvanised

Product number	Vibration control lining	Pipe outer Ø D	Action
168050	without lining	60.3 mm	Pieces
168051	without lining	70 mm	Pieces
168052	without lining	76.1 mm	Pieces
168053	without lining	82.5 mm	Pieces
168054	without lining	88.9 mm	Pieces
168055	without lining	101.6 mm	Pieces
168056	without lining	108 - 110 mm	Pieces
168057	without lining	114.3 mm	Pieces
168058	without lining	125 - 127 mm	Pieces
168290	without lining	129 mm	Pieces
168059	without lining	133 mm	Pieces
168060	without lining	139.7 mm	Pieces
147107	without lining	145 mm	Pieces
153945	without lining	148.9 mm	Pieces
168061	without lining	152.4 mm	Pieces
168062	without lining	159 mm	Pieces
168063	without lining	165 mm	Pieces
168064	without lining	168.3 mm	Pieces
168065	without lining	177.8 mm	Pieces
168066	without lining	212 mm	Pieces
168067	without lining	219.1 mm	Pieces
168068	without lining	244.5 mm	Pieces
168069	without lining	267 mm	Pieces
168070	without lining	273 mm	Pieces
129214	DÄMMGULAST® yellow	60.3 mm	Pieces
129263	DÄMMGULAST® yellow	70 mm	Pieces
129215	DÄMMGULAST® yellow	76.1 mm	Pieces
129267	DÄMMGULAST® yellow	82.5 mm	Pieces
129235	DÄMMGULAST® yellow	88.9 mm	Pieces
129187	DÄMMGULAST® yellow	101.6 mm	Pieces
129191	DÄMMGULAST® yellow	108 - 110 mm	Pieces
129243	DÄMMGULAST® yellow	114.3 mm	Pieces
129195	DÄMMGULAST® yellow	125 - 127 mm	Pieces
129199	DÄMMGULAST® yellow	133 mm	Pieces
129255	DÄMMGULAST® yellow	139.7 mm	Pieces
129202	DÄMMGULAST® yellow	152.4 mm	Pieces
129205	DÄMMGULAST® yellow	159 mm	Pieces
129260	DÄMMGULAST® yellow	165 mm	Pieces
129211	DÄMMGULAST® yellow	168.3 mm	Pieces
129212	DÄMMGULAST® yellow	177.8 mm	Pieces
129221	DÄMMGULAST® yellow	212 mm	Pieces
129224	DÄMMGULAST® yellow	219.1 mm	Pieces
129227	DÄMMGULAST® yellow	244.5 mm	Pieces
129231	DÄMMGULAST® yellow	267 mm	Pieces
129233	DÄMMGULAST® yellow	273 mm	Pieces
