Slide guide 4 kN for crisscross arrangement

Slide guide 4 kN for crisscross arrangement

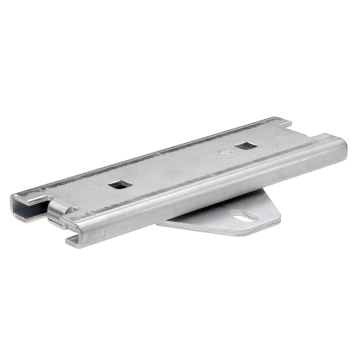

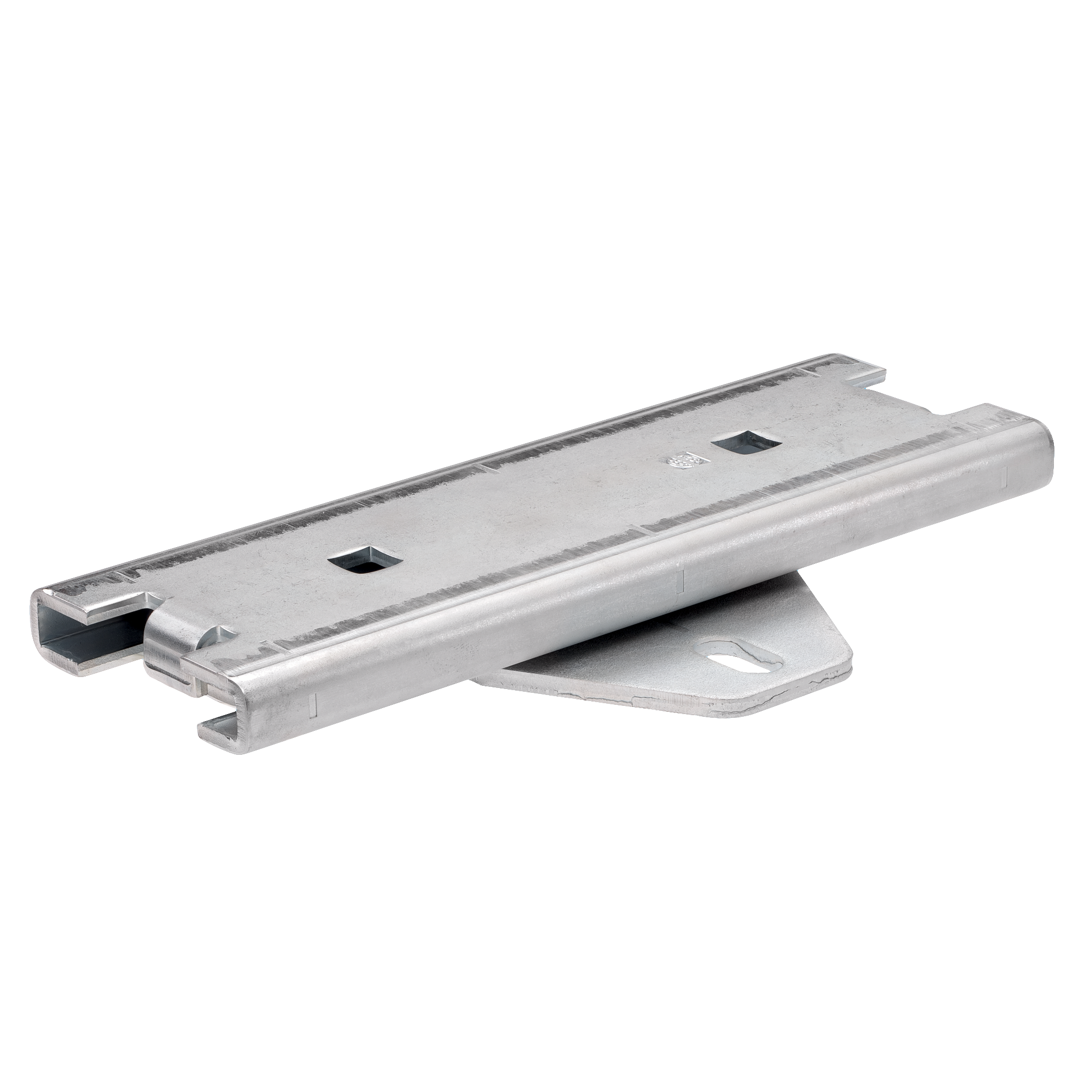

Adapter slide guide 4 kN, for cross combination, galvanised

Art.no.: 139947
Sales unit: 1 Pieces
Weight/item: 2.054 kg
Pieces

Field of application

  • Attachment of pipes with thermal, axial expansion
  • A variety of installation possibilities (floor-mount, ceiling-mount, wallmount)
  • Suitable for pipes mounted from above and from below
  • Expansion assembly attachment as cross connection for pipe movement in axial and lateral directions

Advantages

  • Smooth-running slide guide for heavy loads
  • Flat, compact design for secure mounting in cramped mounting situations
  • Large slide travel of up to 216 mm
  • Highly flexible use due to triple connection possibility with internal threads M12, M16 and external thread ½″
  • One or two pipe clamps can be mounted depending on the application
  • Quick and easy assembly due to center line and mounting marks
  • Base plate compatible with MPC, MPR and MPT-Support channel systems
  • Fire-proof design for application in escape routes and emergency routes
  • For installation situations where both axial and radial movement needs to be accommodated, a 4 kN slide guide and a 4 kN adapter slide guide can be mounted together as a cross connection
Basic data text:
Adapter slide guide 4 kN, for cross combination, galvanised
Product type:
Accessorie anchor points / expansion points
Surface:
galvanised
eCl@ss 7.1:
23-30-16-04
eCl@ss 11.1:
23-05-01-01
Max. slide travel:
216 mm
Customs tariff number:
73269060
