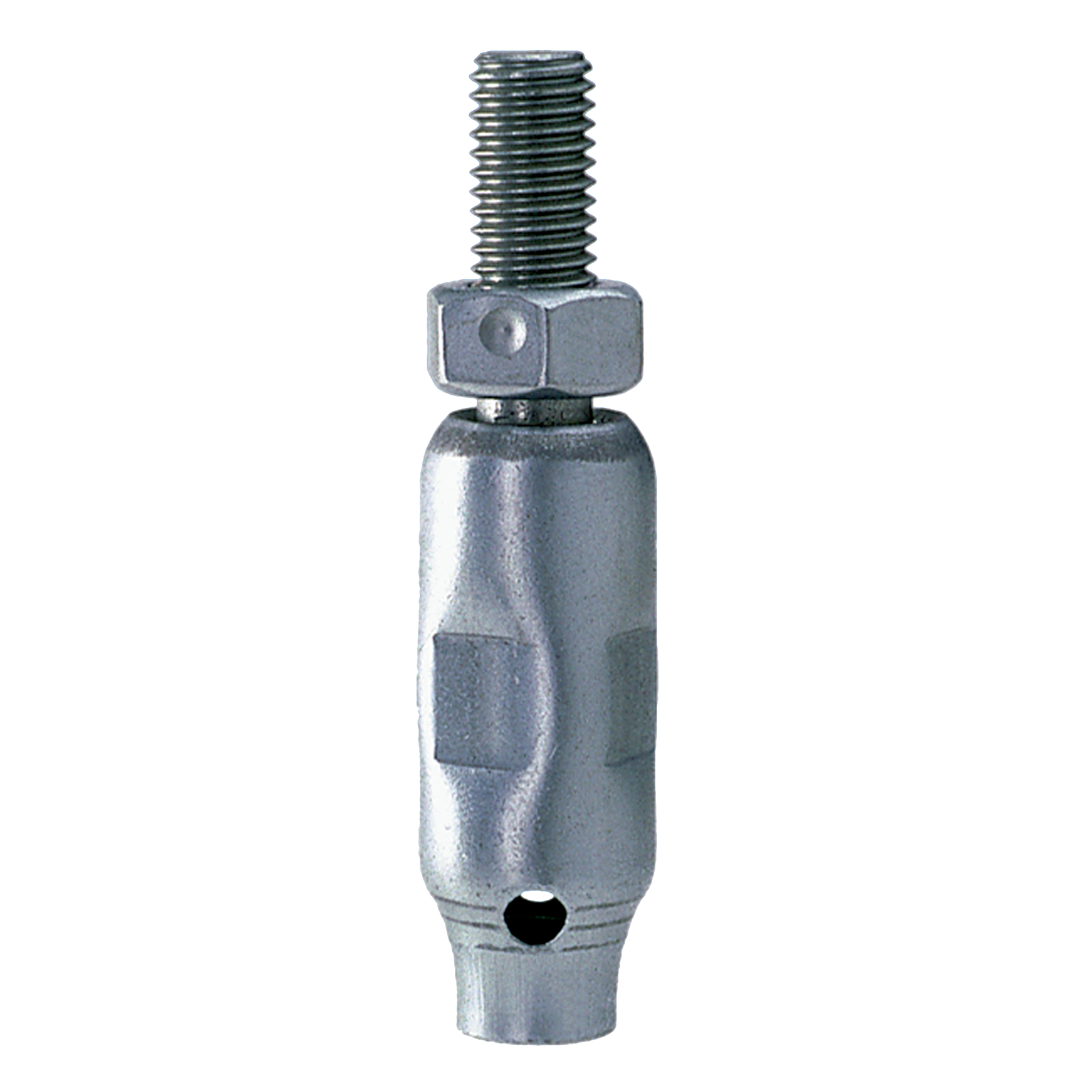

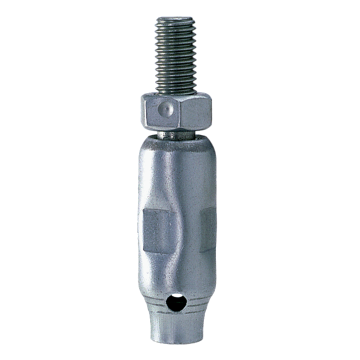

Swivel hangers

Swivel hangers

galvanised

Display variants as list

Connecting thread:

M8 M10 M12

Design:

long, greater deflection long, with inspection hole short

Field of application

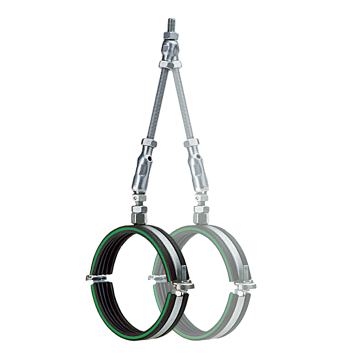

Attachment solution for suspended pipes - allows axial and lateral pipe movements
Attachment of pipes with thermal, axial expansion
Especially suitable for large ceiling distances
For the installation of swivel hangers together with MPR-Quick fasteners please follow the installation instructions accompanying the product

Advantages

360° degree of freedom
Large deflection from the vertical
Appropriate threaded rod lengths allow the pipes to be set to the desired height
Screw-in depth of thread hanger allows precise height adjustment
Screw-in depth visible through inspection hole (long version)
Short version for low overall height

Product type:: Expansion points

Swivel hangers, galvanised

	Product number	Connecting thread	Design	Action
	120231	M8	short	Pieces
	120223	M8	long, with inspection hole	Pieces
	120227	M10	short	Pieces
	120204	M10	long, with inspection hole	Pieces
	120208	M10	long, with inspection hole	Pieces
	120196	M10	long, greater deflection	Pieces
	120211	M12	long, with inspection hole	Pieces
