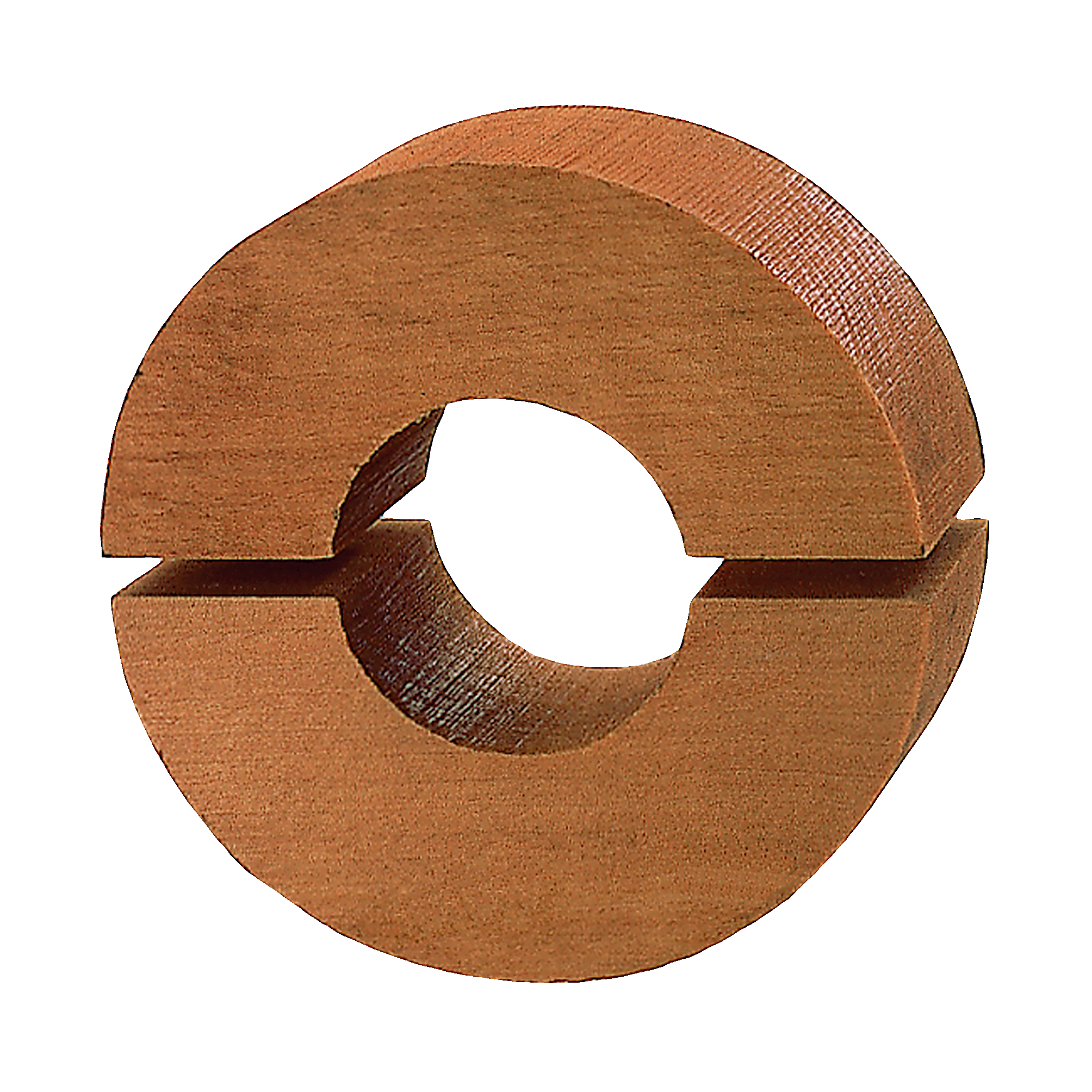

Wooden blocks

Display variants as list

Insulation thickness:

20 mm 30 mm

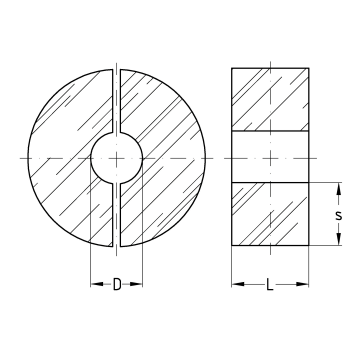

Pipe outer Ø D:

Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

Advantages

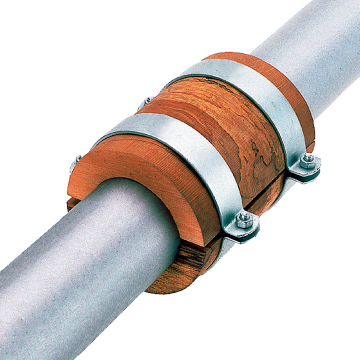

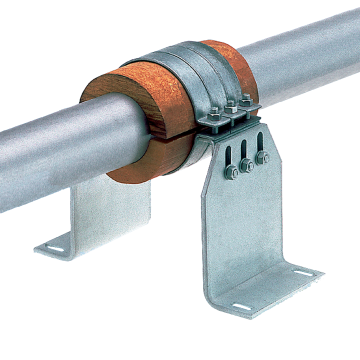

Direct between pipe clamp and cold pipe: decreased heat flux between pipe and environment
Simple attachment to the pipe insulation
Suitable for all pipe materials
Attachment possible at any point on a smooth pipe

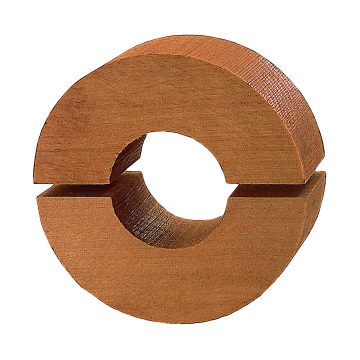

Wooden blocks

Product number	Insulation thickness	Pipe outer Ø D	Action
115874	20 mm	21.3 mm	Pieces
115951	20 mm	26.9 mm	Pieces
116174	20 mm	33.7 mm	Pieces
116286	20 mm	42.4 mm	Pieces
116325	20 mm	48.3 mm	Pieces
116445	20 mm	60.3 mm	Pieces
116484	20 mm	64 mm	Pieces
116526	20 mm	76.1 mm	Pieces
116565	20 mm	88.9 mm	Pieces
115495	20 mm	102 mm	Pieces
115531	20 mm	108 mm	Pieces
115566	20 mm	110 mm	Pieces
115602	20 mm	114.3 mm	Pieces
115638	20 mm	125 mm	Pieces
115673	20 mm	133 mm	Pieces
115709	20 mm	139.7 mm	Pieces
115748	20 mm	159 mm	Pieces
115787	20 mm	168.3 mm	Pieces
115910	20 mm	219.1 mm	Pieces
115987	20 mm	267 mm	Pieces
116023	20 mm	273 mm	Pieces
115883	30 mm	21.3 mm	Pieces
115960	30 mm	26.9 mm	Pieces
116183	30 mm	33.7 mm	Pieces
116295	30 mm	42.4 mm	Pieces
116334	30 mm	48.3 mm	Pieces
116454	30 mm	60.3 mm	Pieces
116493	30 mm	64 mm	Pieces
116538	30 mm	76.1 mm	Pieces
116574	30 mm	88.9 mm	Pieces
115504	30 mm	102 mm	Pieces
115540	30 mm	108 mm	Pieces
115575	30 mm	110 mm	Pieces
115611	30 mm	114.3 mm	Pieces
115647	30 mm	125 mm	Pieces
115682	30 mm	133 mm	Pieces
115718	30 mm	139.7 mm	Pieces
115757	30 mm	159 mm	Pieces
115796	30 mm	168.3 mm	Pieces
115919	30 mm	219.1 mm	Pieces
115996	30 mm	267 mm	Pieces
116032	30 mm	273 mm	Pieces
