Box-section heavy slide guide 7.8 kN galvanised

Box-section heavy slide guide 7.8 kN

Box section heavy slide guide, for M12/M16, galvanised

Art.no.: 105309
Sales unit: 1 Pieces
Weight/item: 2.420 kg
Pieces

Field of application

  • Suitable for wall fixing with horizontal or vertical pipes
  • Attachment of pipes with thermal, axial expansion

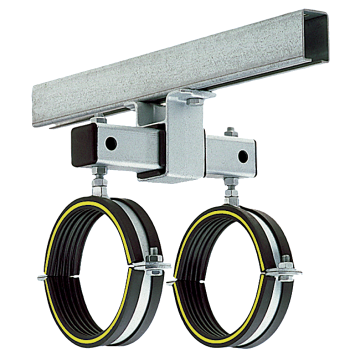

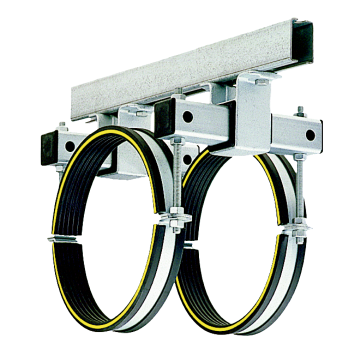

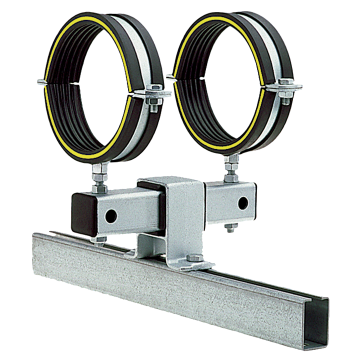

  • Variety of installation possibilities (floor-mount, ceiling-mount, wallmount, rail-mount, cross stay)
  • Suitable for pipes mounted from above and from below

Advantages

  • Smooth-running slide guide for heavy loads
  • With long slide travel up to 125 mm for pipelines with large changes in length
  • Tilt-proof load distribution in standing and suspended installations
  • Variable, height-adjustable pipe clamp attachments using threaded pins
  • Two pipe clamps prevent jamming and misalignment
  • Connection holes for M12 and M16
Basic data text
Box section heavy slide guide, for M12/M16, galvanised
Product type
Expansion points
Material
Steel
Surface
galvanised
eCl@ss 7.1
23-30-16-04
eCl@ss 11.1
23-05-01-01
Fire protection certified
Yes
Max. recommended load
7,800 N
Max. slide travel
125 mm
Customs tariff number
73269060
Weitere technische Details finden Sie im Datenblatt.
