MPT-Angle connectors 90° Q100-2.5, Q100-3.5

MPT-Angle connectors 90°

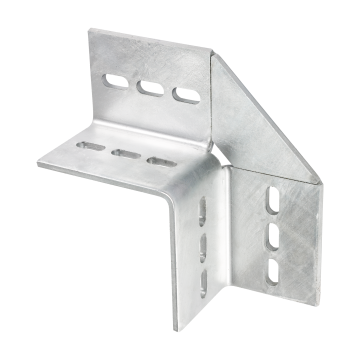

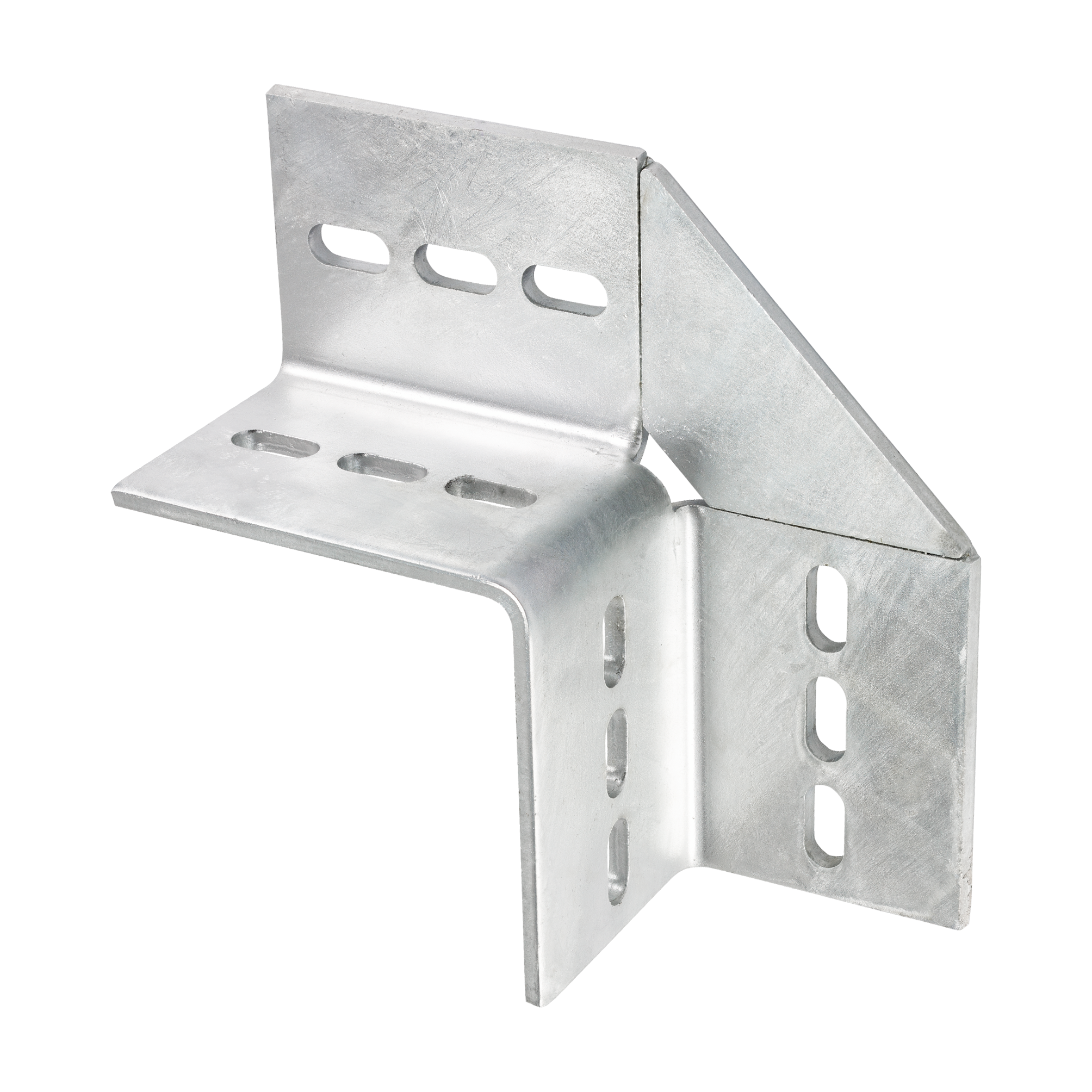

MPT-Angle connector for MPT-Support profile Q100, hot-dip galvanised

Art.no.: 176742
Sales unit: 1 Pieces
Weight/item: 3.564 kg
Pieces

Field of application

  • Connecting element for shelves and rail constructions in heavy-duty building technology, industrial construction and plant engineering

Advantages

  • Fast and simple installation of 90° angled joints
  • Quick attachment using MPT-Hammer head fasteners for secure transmission of high forces
  • Time and cost savings thanks to easy handling and assembly on the construction site
  • High-quality hot-dip galvanising for universal implementation outdoors and indoors
Basic data text:
MPT-Angle connector for MPT-Support profile Q100, hot-dip galvanised
Support channels:
for MPT-Profiles
Product type:
Connecting parts
For profiles:
Q100-2.5, Q100-3.5
Material:
Steel
Surface:
hot-dip galvanised
eCl@ss 7.1:
23-15-92-90
eCl@ss 11.1:
23-36-02-90
Customs tariff number:
73089098
