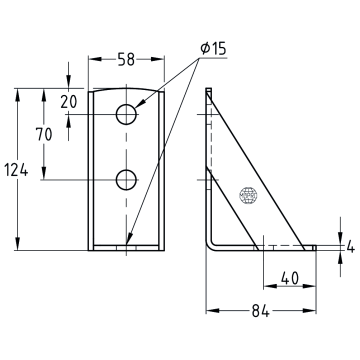

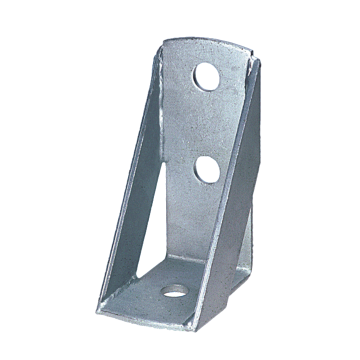

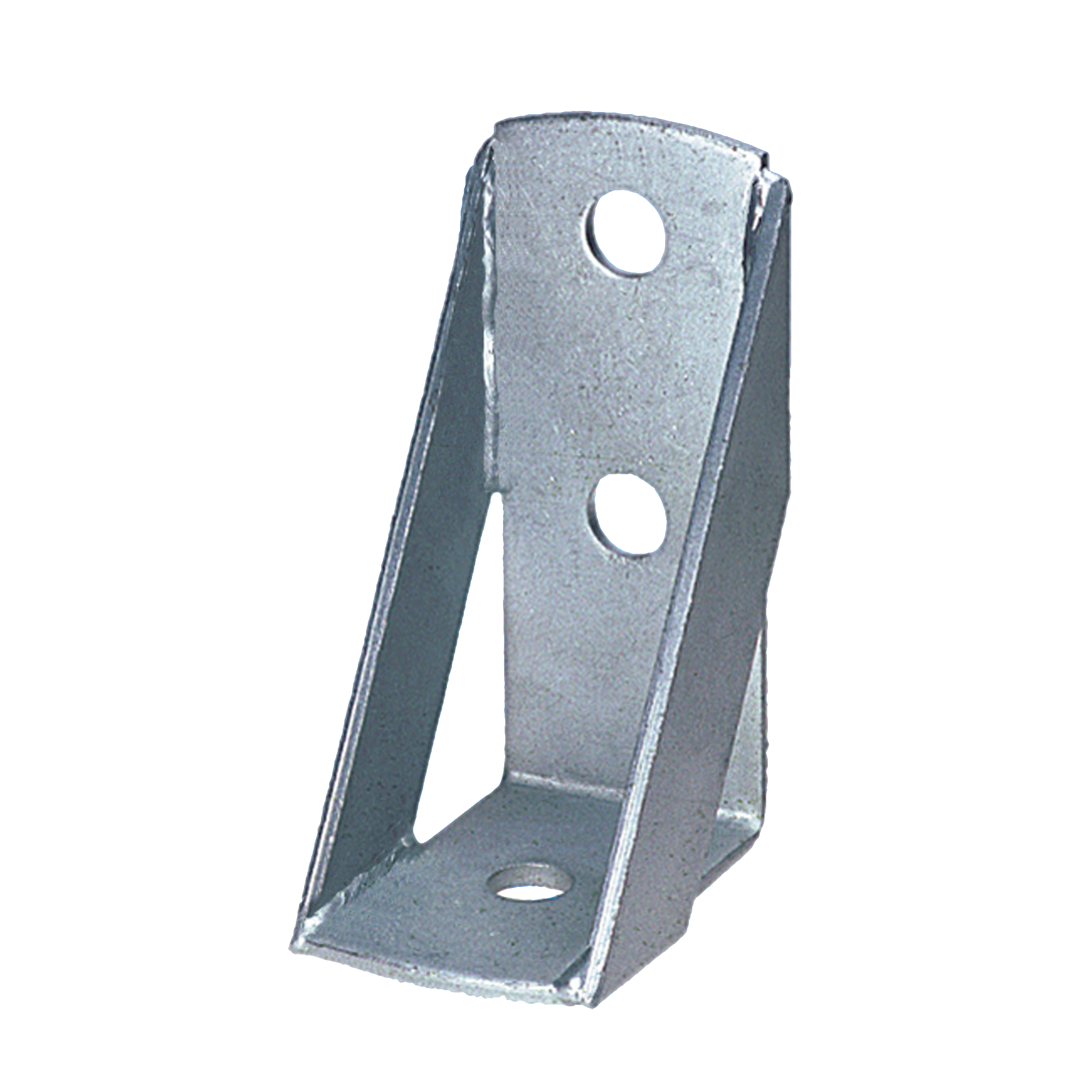

Supporting angle without DÄMMGULAST® Resilient pad | hot-dip galvanised

Supporting angle

Supporting angle without resilient pad, hot-dip galvanised

Art.no.: 127801
Sales unit: 1 Pieces
Weight/item: 0.530 kg
Pieces

Field of application

  • For lateral suspension of pipelines on reinforced concrete beams
  • As substructure for the attachment of fittings, e.g. water meters

Advantages

  • Angle element for higher requirements for stability of mounting structures
  • Usable as bracket for supporting heavy loads close to a wall
  • For supporting cross-beams in confined spaces
Basic data text
Supporting angle without resilient pad, hot-dip galvanised
Design
without DÄMMGULAST® Resilient pad
Product type
Connecting parts
Material
Steel
Surface
hot-dip galvanised
eCl@ss 11.1
23-36-02-90
eCl@ss 7.1
23-36-02-90
DNV approval
Yes
Max. recommended load
5,000 N
Customs tariff number
73269060
Weitere technische Details finden Sie im Datenblatt.
