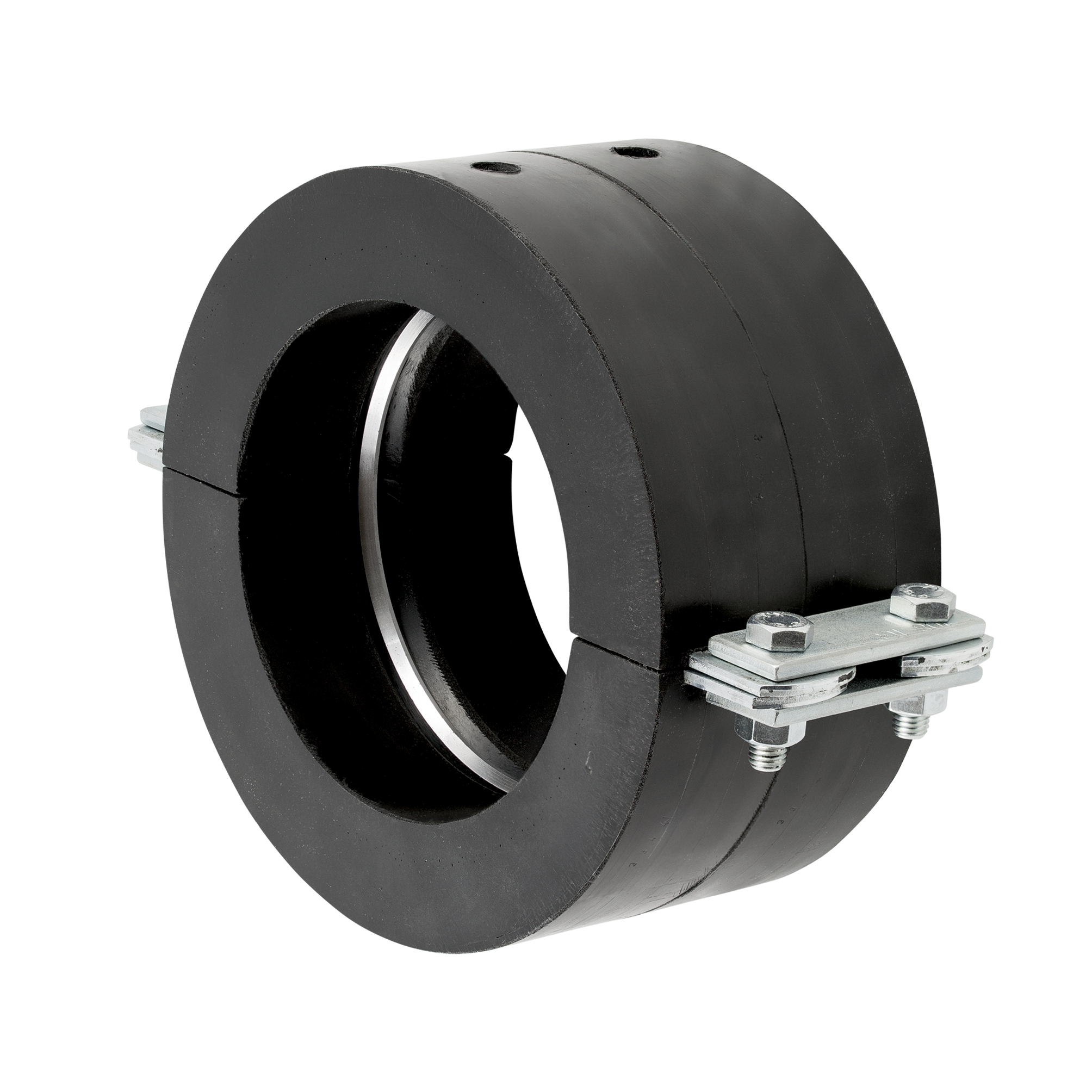

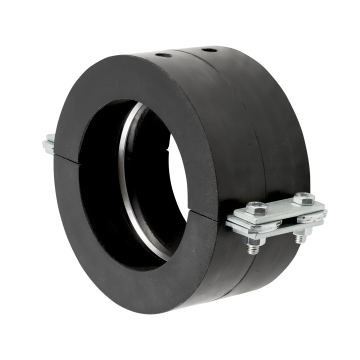

Anchor point pipe clamps type 170 FL

Anchor point pipe clamps type 170 FL

galvanised

Display variants as list

Pipe outer Ø D:

76.1 mm 88.9 mm 114.3 mm 133 mm 139.7 mm 168.3 mm 219.1 mm 273 mm 323.9 mm 355.6 mm

Field of application

Thermal decoupled pipe attachment in the field of refrigeration
Complete anchor point pipe clamp for chilled water pipes
For form-locking attachments taking up axial pipe forces
For indoor use
In particular for large nominal sizes

Advantages

Direct between pipe clamp and cold pipe: decreased heat flux between pipe and environment
Low thermal transfer with the insulation shells and internal clamp bracket used
Simplified integration in sectional pipe insulation
Specially suitable for attachments of steel pipelines according to DIN EN 10022

Product type:: Anchor point pipe clamps

Anchor point pipe clamps type 170 FL, galvanised

	Product number	Pipe outer Ø D	Action
	150707	76.1 mm	Pieces
	150708	88.9 mm	Pieces
	150709	114.3 mm	Pieces
	167131	133 mm	Pieces
	150710	139.7 mm	Pieces
	152055	168.3 mm	Pieces
	159107	219.1 mm	Pieces
	156831	273 mm	Pieces
	165046	323.9 mm	Pieces
	160913	355.6 mm	Pieces
