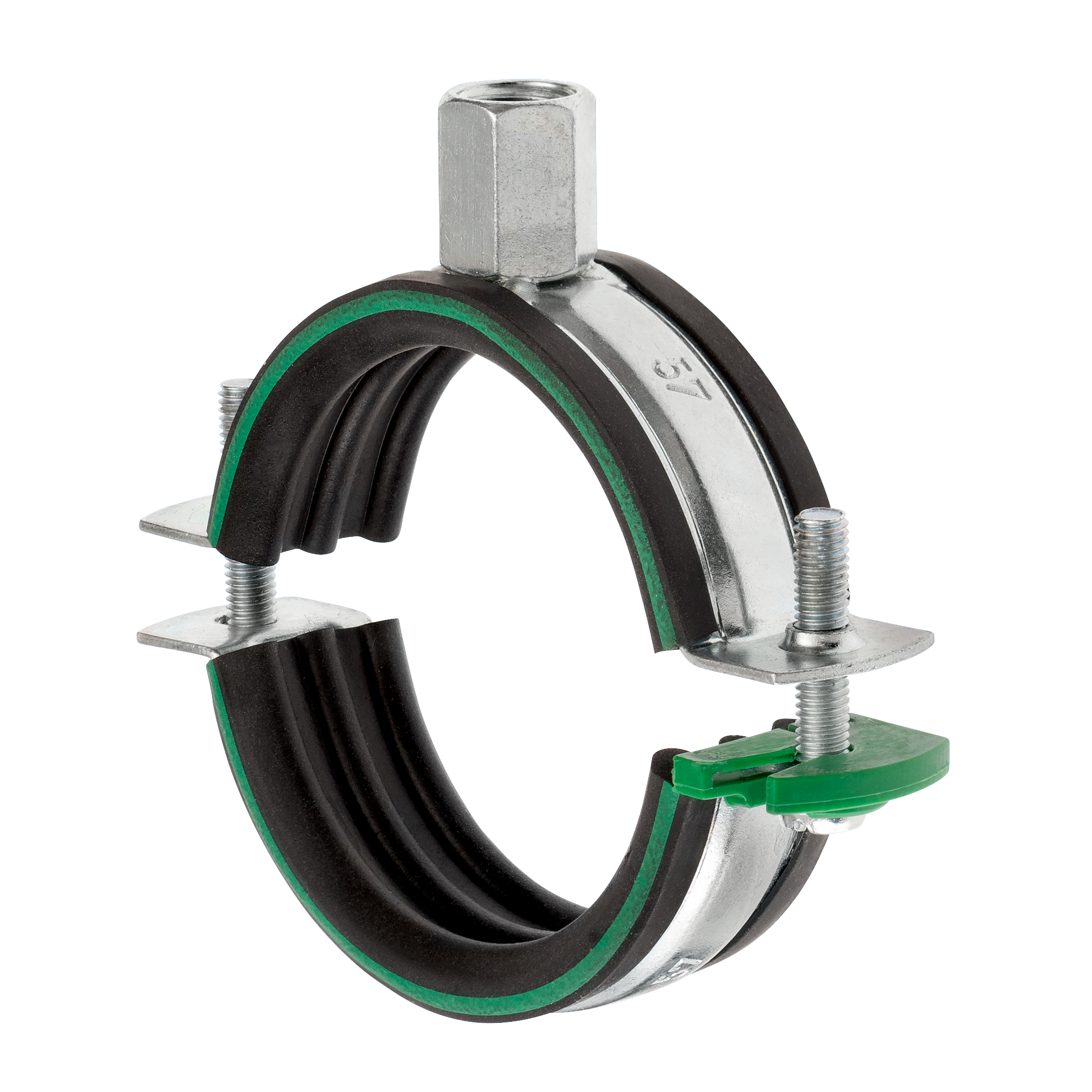

Duo

Duo

galvanised

Display variants as list

Clamping range:

12 - 15 mm 15 - 19 mm 20 - 25 mm 25 - 30 mm 33 - 37 mm 42 - 46 mm 47 - 52 mm 54 - 58 mm 59 - 63 mm 68 - 73 mm 72 - 80 mm 82 - 85 mm 89 - 92 mm 99 - 103 mm 108 - 112 mm 112 - 118 mm

Field of application

Suitable for pipe attachments in industrial areas
Suitable for fastening of drinking water and heating pipes
For indoor use

Advantages

The easy to install quick fastening enables the efficient pipe support in any position
Quick and reliable snapping in of the fastener once the clamp is closed, holding the pipe securely

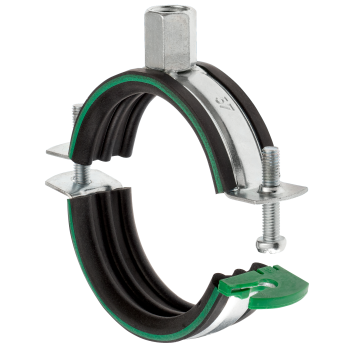

The easy to swivel lower clamp half allows opening and closing of the pipe clamp with only one hand
Captive fastening bolts
Wide opening of the clamp due to the swivelling ability of the lower clamp half
Low vibration entry and exit areas due to the ribbed profile of the DÄMMGULAST® lining

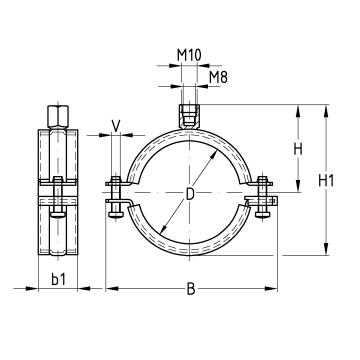

Connection thread M8/M10 for suspended, floor or wall mounting

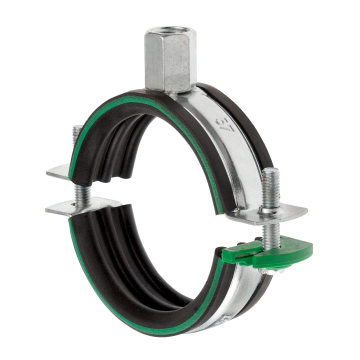

DÄMMGULAST® vibration control lining with green identification stripe: average sound level improvement up to 18 dB(A)

Product type:: Pipe clamps medium load range
Material:: Steel
Surface:: galvanised
Average vibration reduction:: 18 dB(A)
Locking technology:: Quick locking

Duo, galvanised

	Product number	Clamping range	Action
	142938	12 - 15 mm	Pieces
	142939	15 - 19 mm	Pieces
	142940	20 - 25 mm	Pieces
	142941	25 - 30 mm	Pieces
	142942	33 - 37 mm	Pieces
	142943	42 - 46 mm	Pieces
	142944	47 - 52 mm	Pieces
	142945	54 - 58 mm	Pieces
	142946	59 - 63 mm	Pieces
	142947	68 - 73 mm	Pieces
	142948	72 - 80 mm	Pieces
	142949	82 - 85 mm	Pieces
	142950	89 - 92 mm	Pieces
	142951	99 - 103 mm	Pieces
	142952	108 - 112 mm	Pieces
	142953	112 - 118 mm	Pieces
