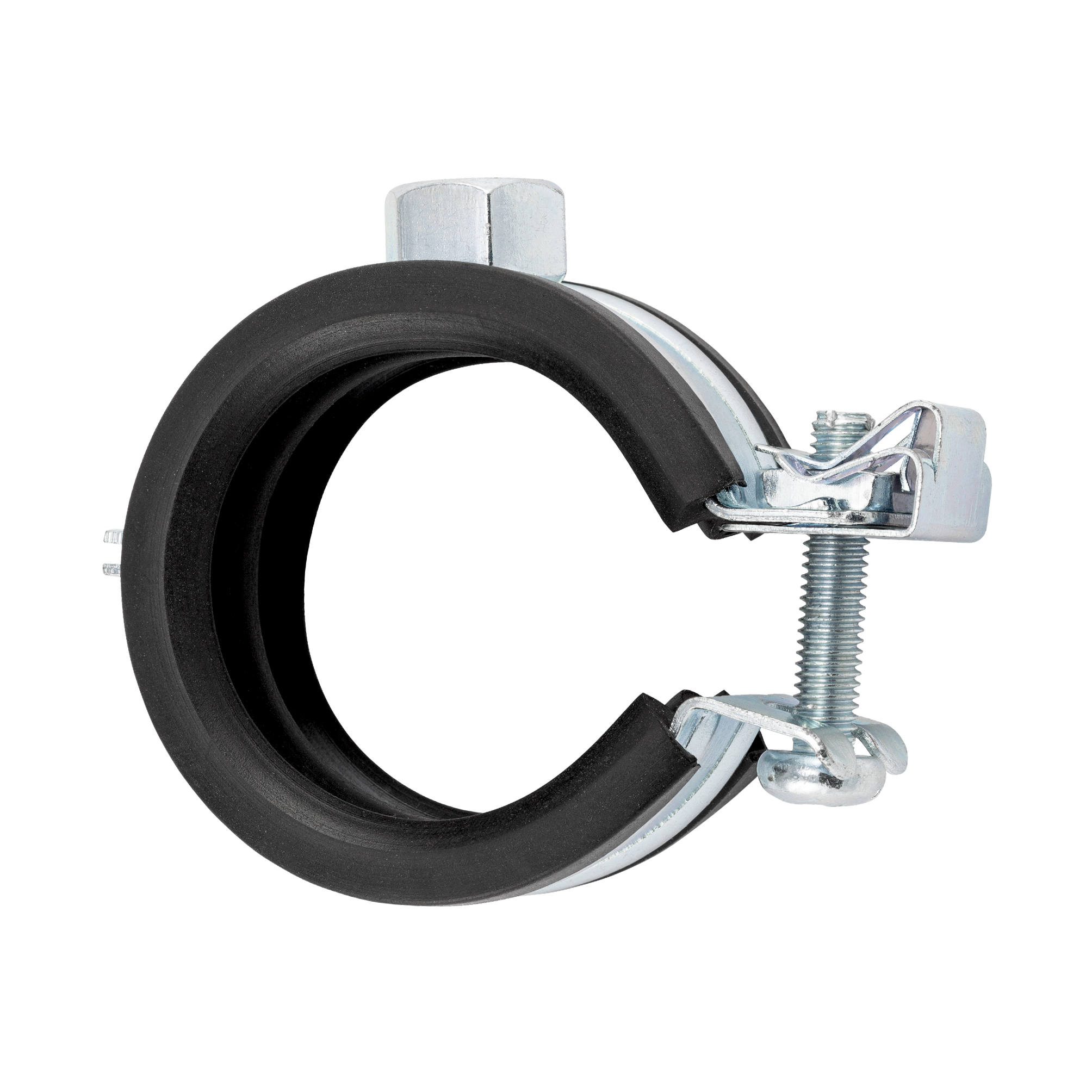

OPTIMAL Junior® Easy

with DÄMMGULAST®, galvanised

Display variants as list

Connecting thread:

M8 M8/M10

Clamping range:

Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

Advantages

Practical latching fastener

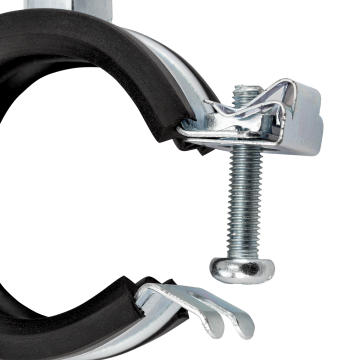

The pipe is free to move during the installation
Quick installation due to the single fastening bolt
Captive fastening bolt
DÄMMGULAST® vibration control lining with green identification stripe: average sound level improvement up to 17 dB(A)

Product number	Connecting thread	Clamping range	Action
175045	M8	12 - 14 mm	Pieces
175046	M8	15 - 19 mm	Pieces
175047	M8	21 - 23 mm	Pieces
175048	M8	26 - 28 mm	Pieces
175049	M8	32 - 35 mm	Pieces
175050	M8	40 - 43 mm	Pieces
175051	M8	48 - 51 mm	Pieces
175052	M8	52 - 56 mm	Pieces
175053	M8	57 - 61 mm	Pieces
175124	M8/M10	12 - 14 mm	Pieces
175125	M8/M10	15 - 19 mm	Pieces
175126	M8/M10	21 - 23 mm	Pieces
175127	M8/M10	26 - 28 mm	Pieces
175128	M8/M10	32 - 35 mm	Pieces
175129	M8/M10	40 - 43 mm	Pieces
175130	M8/M10	48 - 51 mm	Pieces
175131	M8/M10	52 - 56 mm	Pieces
175132	M8/M10	57 - 61 mm	Pieces
175054	M8/M10	63 - 67 mm	Pieces
175055	M8/M10	70 - 73 mm	Pieces
175056	M8/M10	74 - 80 mm	Pieces
175057	M8/M10	83 - 91 mm	Pieces
175058	M8/M10	101 - 106 mm	Pieces
175059	M8/M10	108 - 114 mm	Pieces
