OPTIMAL

galvanised

Display variants as list

Connecting thread:

M8 M8/M10

Clamping range:

Content:

50 pieces 100 pieces

Field of application

Advantages

Economical solution due to advanced technology:

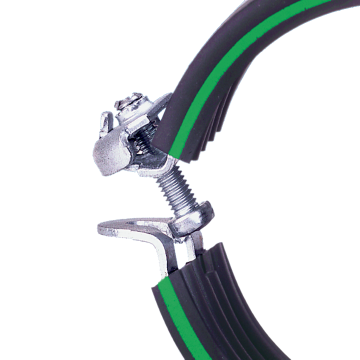

Practical latching fastener
The 2 locking screws allow adjustment to accommodate a greater variation in pipe diameter
Installation advantages of an one-piece clamp
High safety due to the positive-fit edge hook-in opening
The pipe is free to move during the installation
No inadvertent opening once it has clicked in, due to the safety latching fastener
Tightening bolts with combination, captive cross-head convenient for power driver
DÄMMGULAST® vibration control lining with green identification stripe: average sound level improvement up to 18 dB(A)
Optimum handling due to injury-proof design

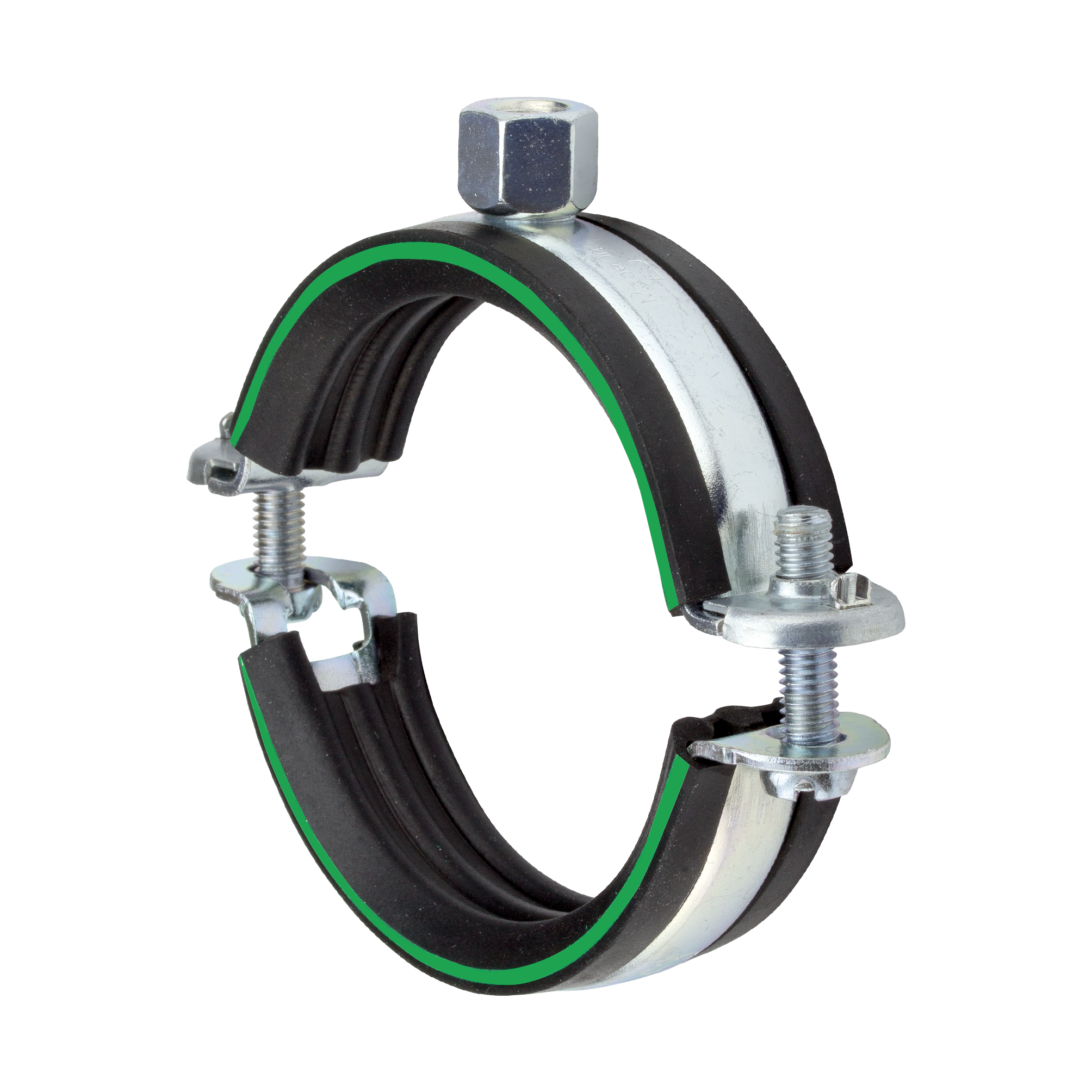

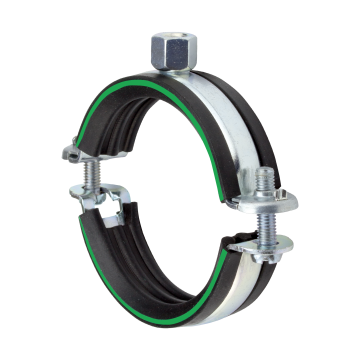

OPTIMAL, galvanised

Product number	Connecting thread	Clamping range	Content	Action
119822	M8	13 - 15 mm	100 pieces	Pieces
119838	M8	16 - 18 mm	100 pieces	Pieces
119818	M8	19 - 24 mm	100 pieces	Pieces
119834	M8	25 - 30 mm	100 pieces	Pieces
119806	M8	32 - 37 mm	100 pieces	Pieces
119814	M8	41 - 44 mm	50 pieces	Pieces
119810	M8	48 - 51 mm	50 pieces	Pieces
119842	M8	53 - 58 mm	50 pieces	Pieces
119826	M8	60 - 63 mm	50 pieces	Pieces
119846	M8	69 - 73 mm	50 pieces	Pieces
119830	M8	74 - 78 mm	50 pieces	Pieces
119866	M8/M10	13 - 15 mm	100 pieces	Pieces
119882	M8/M10	16 - 18 mm	100 pieces	Pieces
119862	M8/M10	19 - 24 mm	100 pieces	Pieces
119878	M8/M10	25 - 30 mm	100 pieces	Pieces
119850	M8/M10	32 - 37 mm	100 pieces	Pieces
119858	M8/M10	41 - 44 mm	50 pieces	Pieces
119854	M8/M10	48 - 51 mm	50 pieces	Pieces
119886	M8/M10	53 - 58 mm	50 pieces	Pieces
119870	M8/M10	60 - 63 mm	50 pieces	Pieces
119894	M8/M10	69 - 73 mm	50 pieces	Pieces
119874	M8/M10	74 - 78 mm	50 pieces	Pieces
119898	M8/M10	80 - 84 mm	50 pieces	Pieces
119794	M8/M10	88 - 90 mm	50 pieces	Pieces
119770	M8/M10	99 - 103 mm	50 pieces	Pieces
119774	M8/M10	108 - 112 mm	50 pieces	Pieces
119798	M8/M10	113 - 117 mm	50 pieces	Pieces
119778	M8/M10	116 - 120 mm	50 pieces	Pieces
119782	M8/M10	125 - 129 mm	50 pieces	Pieces
119786	M8/M10	133 - 137 mm	50 pieces	Pieces
119802	M8/M10	137 - 141 mm	50 pieces	Pieces
119790	M8/M10	159 - 162 mm	50 pieces	Pieces
119890	M8/M10	164 - 168 mm	50 pieces	Pieces
