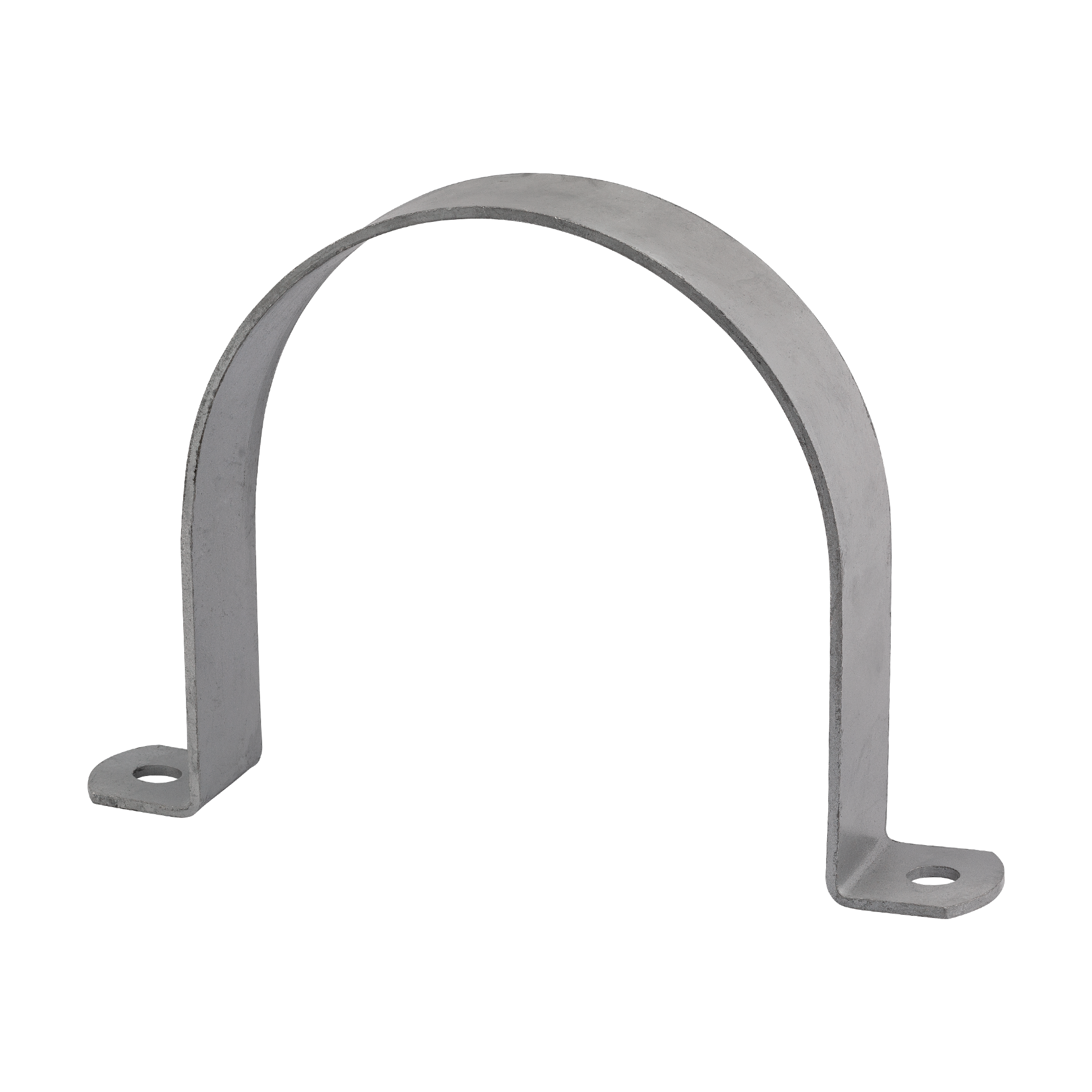

Saddle clamps

Saddle clamps

hot-dip galvanised

Display variants as list

Pipe outer Ø D:

17.2 mm 21.3 mm 26.9 mm 33.7 mm 42.4 mm 48.3 mm 60.3 mm 76.1 mm 88.9 mm 114.3 mm 139.7 mm 168.3 mm 219.1 mm 273 mm 323.9 mm

Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

Fastening uninsulated pipes to support channels, consoles and frame structures in commercial and industrial applications
Execution according to VdS CEA 4001 for water extinguishing systems
Suitable for outdoor use

Advantages

Suitable for standing and hanging installations

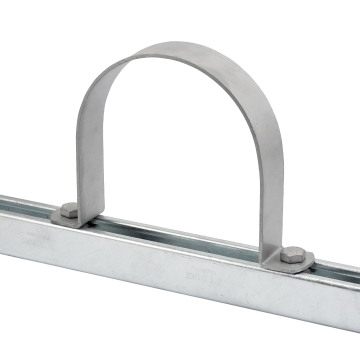

Easy installation into the rail slot using hexagon head bolts and rail nuts
High corrosion protection
Alternative to U-bolts
For use in retrofit and new construction applications

Product type: Pipe clamps medium load range

Weitere technische Details finden Sie im Datenblatt.

Saddle clamps, hot-dip galvanised

	Product number	Pipe outer Ø D	Action
	176687	17.2 mm	Pieces
	176688	21.3 mm	Pieces
	176689	26.9 mm	Pieces
	176690	33.7 mm	Pieces
	176691	42.4 mm	Pieces
	176692	48.3 mm	Pieces
	176693	60.3 mm	Pieces
	176694	76.1 mm	Pieces
	176695	88.9 mm	Pieces
	176696	114.3 mm	Pieces
	176697	139.7 mm	Pieces
	176698	168.3 mm	Pieces
	176699	219.1 mm	Pieces
	176700	273 mm	Pieces
	176701	323.9 mm	Pieces
