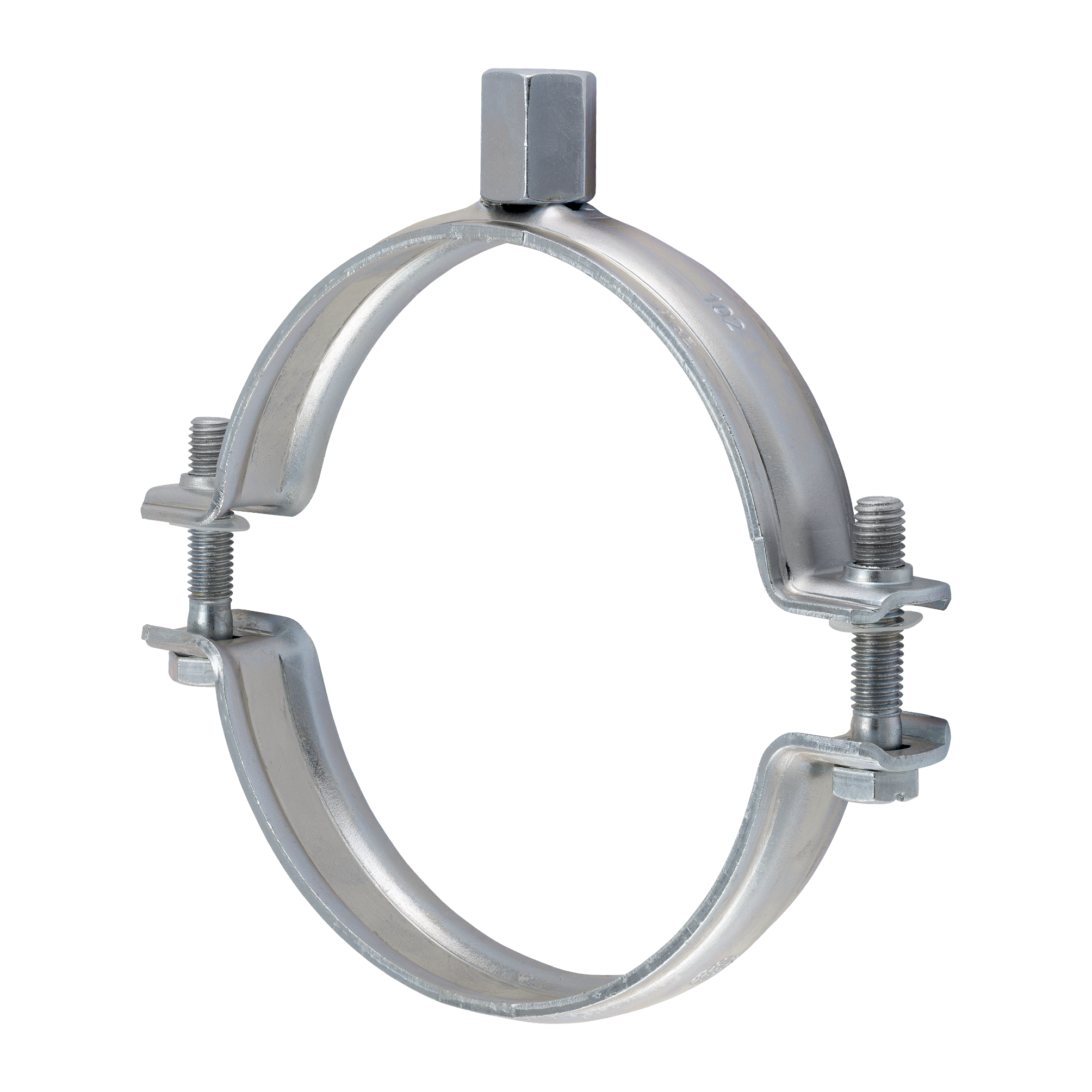

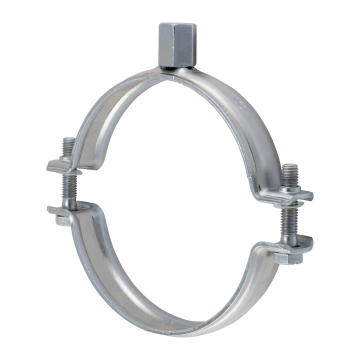

Single bossed clamps

Single bossed clamps

without lining, VdS/FM approval, galvanised

Display variants as list

Clamping range:

14 - 18 mm 19 - 25 mm 26 - 30 mm 31 - 37 mm 38 - 42 mm 43 - 47 mm 47 - 52 mm 53 - 57 mm 58 - 63 mm 64 - 71 mm 72 - 78 mm 79 - 85 mm 85 - 90 mm 94 - 99 mm 99 - 104 mm 108 - 115 mm 118 - 123 mm 125 - 130 mm 133 - 140 mm 142 - 148 mm 148 - 153 mm 154 - 160 mm 160 - 169 mm 218 - 226 mm

Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

For fastening sprinkler pipes as per VdS and FM Guidelines
For indoor use

Advantages

Suitable for the attachment of sprinkler pipes
Approved by VdS and FM
Easy and time-saving assembly of sprinkler pipes
Tightening bolts with combination cross-head convenient for power driver
Tightening bolts secured with captive washers
Flexible connection thread depending on the application

Product type: Pipe clamps medium load range
Surface: galvanised
VdS: Yes

Weitere technische Details finden Sie im Datenblatt.

Single bossed clamps, without lining, VdS/FM approval, galvanised

	Product number	Clamping range	Action
	173451	14 - 18 mm	Pieces
	173452	19 - 25 mm	Pieces
	173453	26 - 30 mm	Pieces
	173454	31 - 37 mm	Pieces
	173455	38 - 42 mm	Pieces
	173456	43 - 47 mm	Pieces
	173457	47 - 52 mm	Pieces
	173458	53 - 57 mm	Pieces
	173459	58 - 63 mm	Pieces
	173474	64 - 71 mm	Pieces
	173475	72 - 78 mm	Pieces
	173476	79 - 85 mm	Pieces
	173477	85 - 90 mm	Pieces
	173478	94 - 99 mm	Pieces
	173479	99 - 104 mm	Pieces
	173480	108 - 115 mm	Pieces
	173481	118 - 123 mm	Pieces
	173482	125 - 130 mm	Pieces
	173483	133 - 140 mm	Pieces
	173484	142 - 148 mm	Pieces
	173485	148 - 153 mm	Pieces
	173486	154 - 160 mm	Pieces
	173487	160 - 169 mm	Pieces
	173493	218 - 226 mm	Pieces
