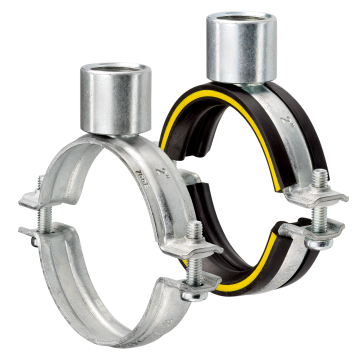

Single bossed clamps with connecting socket

with / without DÄMMGULAST® lining

Display variants as list

Connecting thread [inch]:

½" ¾"

Vibration control lining:

DÄMMGULAST® yellow without lining

Clamping range:

21 - 26 mm 26 - 30 mm 31 - 37 mm 31 - 38 mm 38 - 41 mm 40 - 47 mm 42 - 46 mm 47 - 52 mm 48 - 54 mm 53 - 57 mm 54 - 60 mm 58 - 63 mm 60 - 66 mm 64 - 71 mm 68 - 73 mm 72 - 78 mm 73 - 80 mm 79 - 85 mm 82 - 87 mm 85 - 90 mm 87 - 94 mm 99 - 104 mm 105 - 112 mm 108 - 115 mm 112 - 118 mm 118 - 123 mm 122 - 128 mm 125 - 130 mm 132 - 137 mm 133 - 140 mm 137 - 142 mm 142 - 148 mm 148 - 153 mm 149 - 156 mm 154 - 160 mm 159 - 164 mm 160 - 169 mm 164 - 169 mm 169 - 172 mm 177 - 183 mm 197 - 203 mm

Field of application

Applicable as a pipeline anchor point
Suitable for pipe attachments in industrial areas
Suitable for fixings in air-conditioning, ventilation and sanitary areas
For indoor use

Advantages

Proven, two-piece single bossed clamp in heavy-duty design
For bending-resistant fastening at greater distances from the building structure
Ideal combination when used with pipe nipple and base plate or socket adapter

Product type:: Pipe clamps medium load range

Single bossed clamps, with connection socket and DÄMMGULAST® yellow, galvanised

Single bossed clamps, with connecting socket, without lining, galvanised

Product number	Connecting thread [inch]	Vibration control lining	Clamping range	Action
154945	½"	DÄMMGULAST® yellow	21 - 26 mm	Pieces
154946	½"	DÄMMGULAST® yellow	26 - 30 mm	Pieces
154947	½"	DÄMMGULAST® yellow	31 - 38 mm	Pieces
154948	½"	DÄMMGULAST® yellow	40 - 47 mm	Pieces
154949	½"	DÄMMGULAST® yellow	48 - 54 mm	Pieces
154950	½"	DÄMMGULAST® yellow	54 - 60 mm	Pieces
154951	½"	DÄMMGULAST® yellow	60 - 66 mm	Pieces
154816	½"	DÄMMGULAST® yellow	68 - 73 mm	Pieces
154817	½"	DÄMMGULAST® yellow	73 - 80 mm	Pieces
154818	½"	DÄMMGULAST® yellow	82 - 87 mm	Pieces
154819	½"	DÄMMGULAST® yellow	87 - 94 mm	Pieces
154820	½"	DÄMMGULAST® yellow	99 - 104 mm	Pieces
154821	½"	DÄMMGULAST® yellow	105 - 112 mm	Pieces
154822	½"	DÄMMGULAST® yellow	112 - 118 mm	Pieces
154823	½"	DÄMMGULAST® yellow	122 - 128 mm	Pieces
154824	½"	DÄMMGULAST® yellow	132 - 137 mm	Pieces
154825	½"	DÄMMGULAST® yellow	137 - 142 mm	Pieces
154826	½"	DÄMMGULAST® yellow	142 - 148 mm	Pieces
154827	½"	DÄMMGULAST® yellow	149 - 156 mm	Pieces
154828	½"	DÄMMGULAST® yellow	159 - 164 mm	Pieces
154829	½"	DÄMMGULAST® yellow	164 - 169 mm	Pieces
154832	½"	DÄMMGULAST® yellow	197 - 203 mm	Pieces
154954	¾"	DÄMMGULAST® yellow	60 - 66 mm	Pieces
154833	¾"	DÄMMGULAST® yellow	68 - 73 mm	Pieces
154834	¾"	DÄMMGULAST® yellow	73 - 80 mm	Pieces
154835	¾"	DÄMMGULAST® yellow	82 - 87 mm	Pieces
154836	¾"	DÄMMGULAST® yellow	87 - 94 mm	Pieces
154837	¾"	DÄMMGULAST® yellow	99 - 104 mm	Pieces
154838	¾"	DÄMMGULAST® yellow	105 - 112 mm	Pieces
154839	¾"	DÄMMGULAST® yellow	112 - 118 mm	Pieces
154840	¾"	DÄMMGULAST® yellow	122 - 128 mm	Pieces
154841	¾"	DÄMMGULAST® yellow	132 - 137 mm	Pieces
154842	¾"	DÄMMGULAST® yellow	137 - 142 mm	Pieces
154843	¾"	DÄMMGULAST® yellow	142 - 148 mm	Pieces
154844	¾"	DÄMMGULAST® yellow	149 - 156 mm	Pieces
154845	¾"	DÄMMGULAST® yellow	159 - 164 mm	Pieces
154846	¾"	DÄMMGULAST® yellow	164 - 169 mm	Pieces
154847	¾"	DÄMMGULAST® yellow	169 - 172 mm	Pieces
154848	¾"	DÄMMGULAST® yellow	177 - 183 mm	Pieces
154849	¾"	DÄMMGULAST® yellow	197 - 203 mm	Pieces
154978	½"	without lining	31 - 37 mm	Pieces
154979	½"	without lining	38 - 41 mm	Pieces
154980	½"	without lining	42 - 46 mm	Pieces
154981	½"	without lining	47 - 52 mm	Pieces
154982	½"	without lining	53 - 57 mm	Pieces
154983	½"	without lining	58 - 63 mm	Pieces
154984	½"	without lining	64 - 71 mm	Pieces
154931	½"	without lining	72 - 78 mm	Pieces
154932	½"	without lining	79 - 85 mm	Pieces
154933	½"	without lining	85 - 90 mm	Pieces
154934	½"	without lining	99 - 104 mm	Pieces
154935	½"	without lining	108 - 115 mm	Pieces
159190	½"	without lining	118 - 123 mm	Pieces
154936	½"	without lining	125 - 130 mm	Pieces
154937	½"	without lining	133 - 140 mm	Pieces
159191	½"	without lining	142 - 148 mm	Pieces
159192	½"	without lining	148 - 153 mm	Pieces
154938	½"	without lining	154 - 160 mm	Pieces
154939	½"	without lining	160 - 169 mm	Pieces
