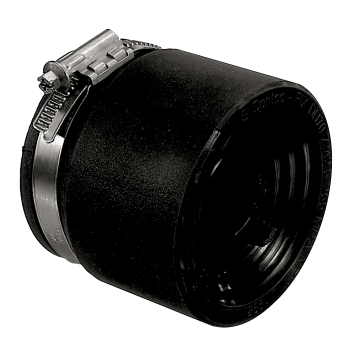

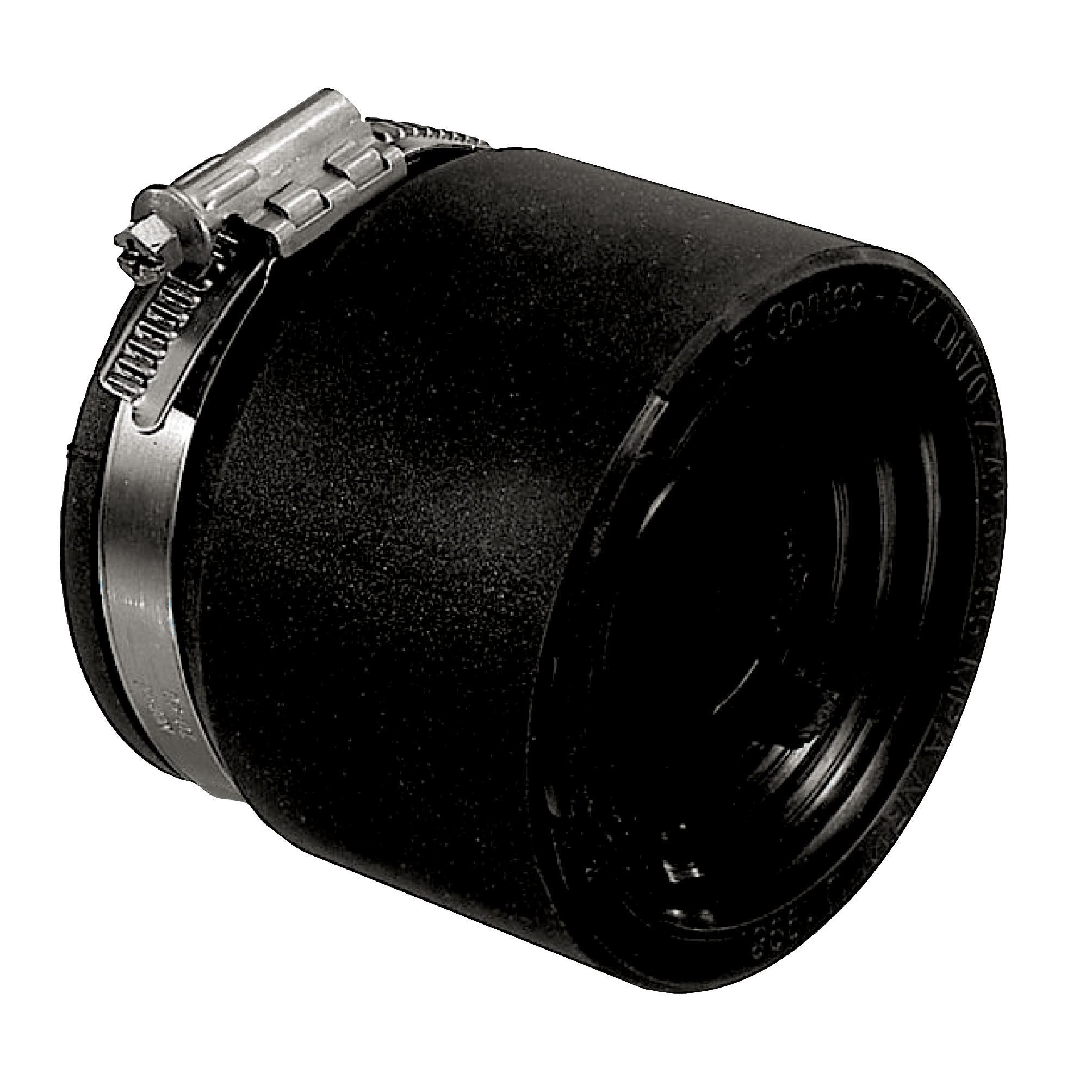

Reducing couplings

Display variants as list

Nominal size DN:

50 70 80 100 125

Field of application

For the coupling of SML pipe systems according to DIN 19522/ EN 877 with other pipe systems according to DIN 19560 (PE-HD pipes) and DIN 19535 (PP pipes) as well as for use as end caps in pipe systems

Advantages

The end cap can be easily removed by pulling on the tongue (with pliers, if necessary) - no cutting out of the coupling required, therefore: time and cost saving, no danger of damaging the sealing lip
Two sealing lips guarantee stable guidance of the pipe
A wide central fastener allows uniform tightening
Highly elastic material with a great wall thickness guarantees a long life cycle and permanent connection
High-stability of coupling due to the large insertion depth
Can be used with an internal pressure of pipe up to 0.5 bar
Tested and approved by the Material Testing Institute of North Rhine-Westphalia, supervision contract Nr. 117430
Approved by the building authorities

Reducing couplings
