Heavy-duty anchors BZ M12 | 220 | galvanised

Heavy-duty anchors BZ

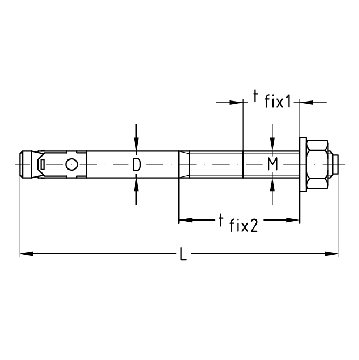

BZ Heavy-duty anchor, M12 x 220 mm, clamping range 125 mm, galvanised

Display variants as list
Reset selection
Art.no.: 116712
Connecting thread: M12
Length L [mm]: 220
Surface: galvanised
Sales unit: 25 Pieces
Weight/item: 0.197 kg
Pieces

Field of application

  • For anchorages of medium-weight to heavy loads in cracked and non-cracked concrete
  • Attachment of wall hanger brackets, support channels, base plates, constructions made of metal and wood, cable trays, railings, etc.
  • Also applicable in hard natural stone

Advantages

  • Secure anchorage due to slit splaying sleeve with serrations
  • Force-controlled splaying from the tightening torque
  • Secure splaying due to taper with slide coating
  • European Technical Assessment (ETA) for cracked concrete (tensile zone) and non-cracked concrete (compression zone)
  • Higher loading possible when used in the compression zone
  • Two effective anchorage depths for greater flexibility (maximum anchor length 210 mm)
  • Approved for seismic loads, performance categories C1 and C2 (maximum anchor length 210 mm)
Basic data text
BZ Heavy-duty anchor, M12 x 220 mm, clamping range 125 mm, galvanised
Field of application
concrete cracked (approval for multiple attachment) | Natural stone, hard | concrete non-cracked (approval for multiple attachment)
Type
BZ 12-125/220
Product type
metal plugs
Material
Steel
Surface
galvanised
Connecting thread
M12
Length L [mm]
220
Anchoring depth standard anchorage depth
70 mm
Drilling diameter D
12 mm
eCl@ss 7.1
23-15-21-01
Setting depth Standard anchorage depth
80 mm
eCl@ss 11.1
23-15-21-01
Admissible tensile load cracked concrete standard anchorage depth
7.6 kN
Fire protection certified
Yes
ETA approval
Yes
FM
Yes
Sprinkler
Yes
Drilling depth standard anchorage depth
90 mm
Admissible tensile load uncracked concrete standard anchorage depth
11.9 kN
Clamping thickness standard anchorage depth
125 mm
Customs tariff number
73181595
Further technical details can be found in the data sheet.
