MPC-Mounting anchors

MPC-Mounting anchors

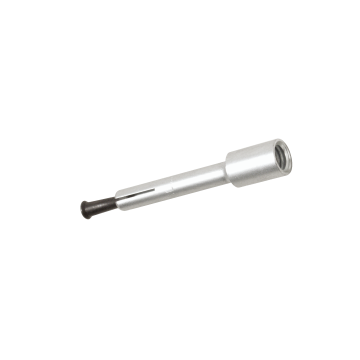

MPC-Mounting anchor, type K6, with internal thread M8, galvanised

Art.no.: 118161
Sales unit: 100 Pieces
Weight/item: 0.015 kg
Pieces

Field of application

  • For multiple fixings in concrete, single attachments of pipe lines and air ducts, etc.
  • Also applicable in hard natural stone
  • For the suspension of air ducts by means of threaded rods

Advantages

  • All components are matched to each other to form a system
  • Mistakes in mounting are nearly excluded
  • Precise drilling depth due to headed drill - drilling only as deep as necessary
  • The setting tool and the anchor to be driven-in are simply placed on the headed drill. The headed drill rotates within the setting tool and the MPC-Mounting anchor is driven into the structure by the blows of the hammer drill. This enables quick and efficient work
  • European Technical Assessment (ETA) for multiple fixing for non-load bearing systems
  • Easy to withdraw, facilitates corrections during installation
Basic data text:
MPC-Mounting anchor, type K6, with internal thread M8, galvanised
Field of application:
concrete cracked (approval for multiple attachment) | concrete non-cracked (approval for multiple attachment)
Product type:
metal plugs
Material:
Steel
Surface:
galvanised
Connecting thread:
M8
Drilling depth:
42 mm
eCl@ss 11.1:
23-15-21-16
eCl@ss 7.1:
23-15-21-16
Fire protection certified:
Yes
ETA approval:
Yes
Sprinkler:
Yes
Permissible loads use of multiple attachment of non-load bearing systems concrete:
1.4 kN
Customs tariff number:
73181900
