Screws for concrete MMS-plus

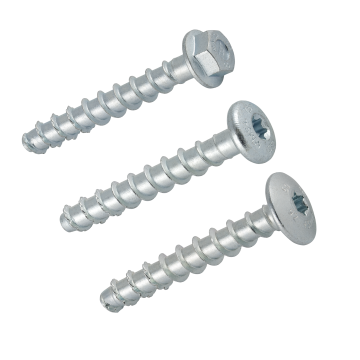

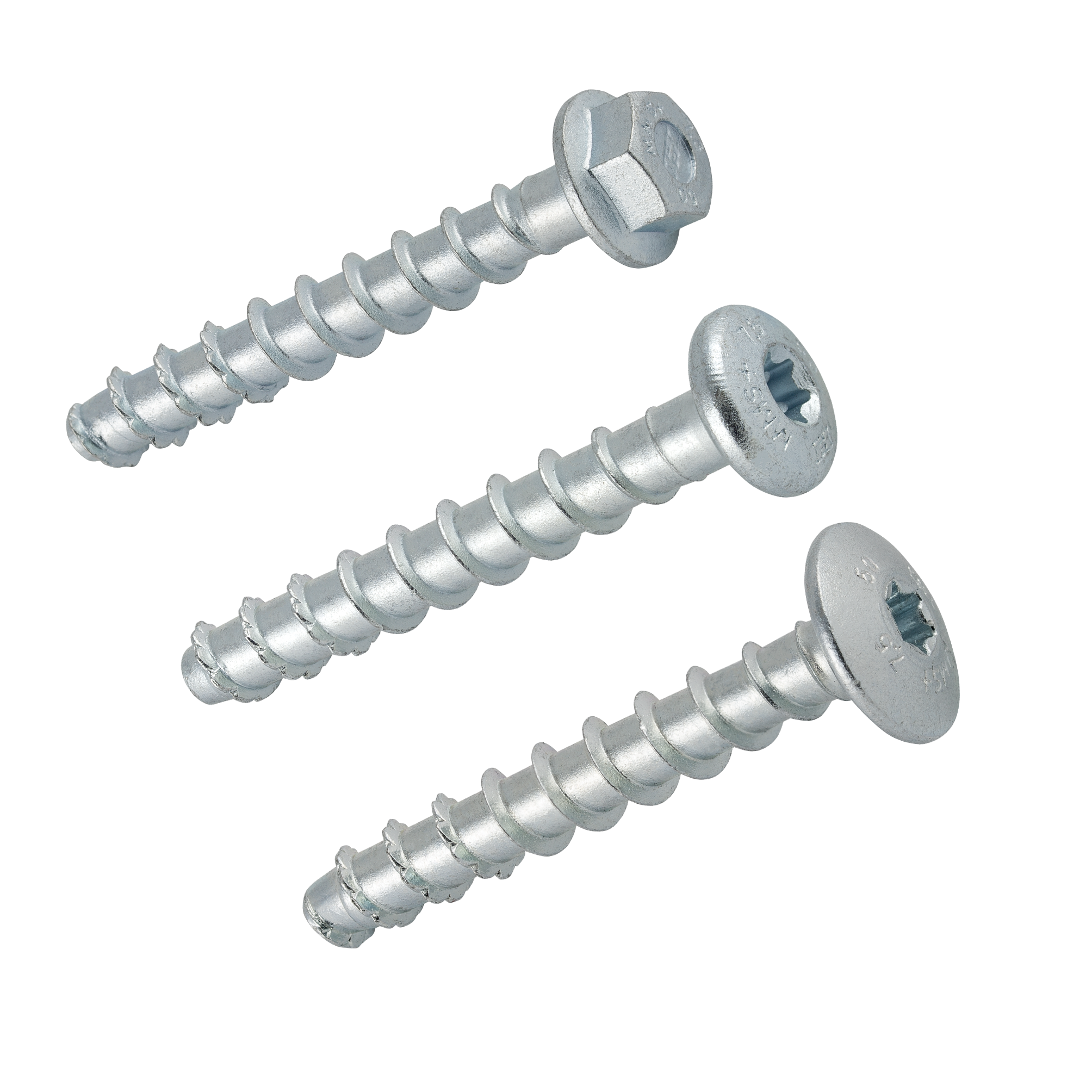

type Multi-Monti®-plus (with heaxonal head and with panhead), galvanised

Display variants as list

Type:

Length L [mm]:

40 50 60 70 80 90 100 120

Thread diameter:

7.5 mm 10 mm 12 mm

Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

For anchorages free of expansion pressure in cracked and non-cracked concrete
Direct mounting of attachment parts, such as brackets, support channels, base plates, etc.
Also applicable in lime sand brick, solid brick, clinker and natural stone
For anchorages in prestressed concrete hollow core slab ceilings

Advantages

More than 25 % reduction of assembly time per attachment point
Versatile use in concrete and other solid building materials
High security, no splaying effect - thus can be placed close to the edge and to other screws
High load capacity due to form lock
Easy to withdraw, facilitates corrections during installation
No additional mounting or setting tools required
European Technical Assessment for cracked and uncracked concrete
Fire protection in concrete
Suitable for the installation of gas mains according to the TRGI (Technical Rules for Gas Installations)
Two effective anchorage depths for greater flexibility
European Technical Assessment for anchorages in prestressed concrete hollow core slab ceilings
European Technical Assessment for anchorages in masonry

Field of application: Lime sand brick | Solid brick | Natural stone, hard | concrete non-cracked (ETA) | concrete cracked (ETA)
Product type: metal plugs
Material: Steel
Surface: galvanised
Fire protection certified: Yes
Sprinkler: Yes

Product number	Type	Length L [mm]	Thread diameter	Action
166632	With hexagonal head and pressed washer type SS	40	7.5 mm	Pieces
166646	With panhead (small) type P	40	7.5 mm	Pieces
166640	With panhead (large) type MS	40	7.5 mm	Pieces
166633	With hexagonal head and pressed washer type SS	50	7.5 mm	Pieces
166647	With panhead (small) type P	50	7.5 mm	Pieces
166641	With panhead (large) type MS	50	7.5 mm	Pieces
166634	With hexagonal head and pressed washer type SS	60	7.5 mm	Pieces
166648	With panhead (small) type P	60	7.5 mm	Pieces
166635	With hexagonal head and pressed washer type SS	80	7.5 mm	Pieces
166636	With hexagonal head and pressed washer type SS	100	7.5 mm	Pieces
166637	With hexagonal head and pressed washer type SS	70	10 mm	Pieces
166638	With hexagonal head and pressed washer type SS	100	10 mm	Pieces
166639	With hexagonal head and pressed washer type SS	120	10 mm	Pieces
172692	With hexagonal head and pressed washer type SS	90	12 mm	Pieces
