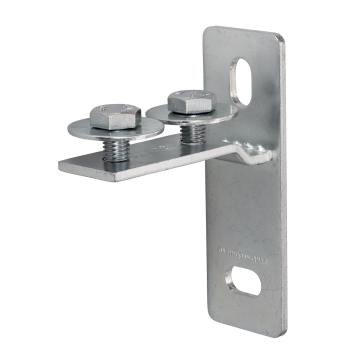

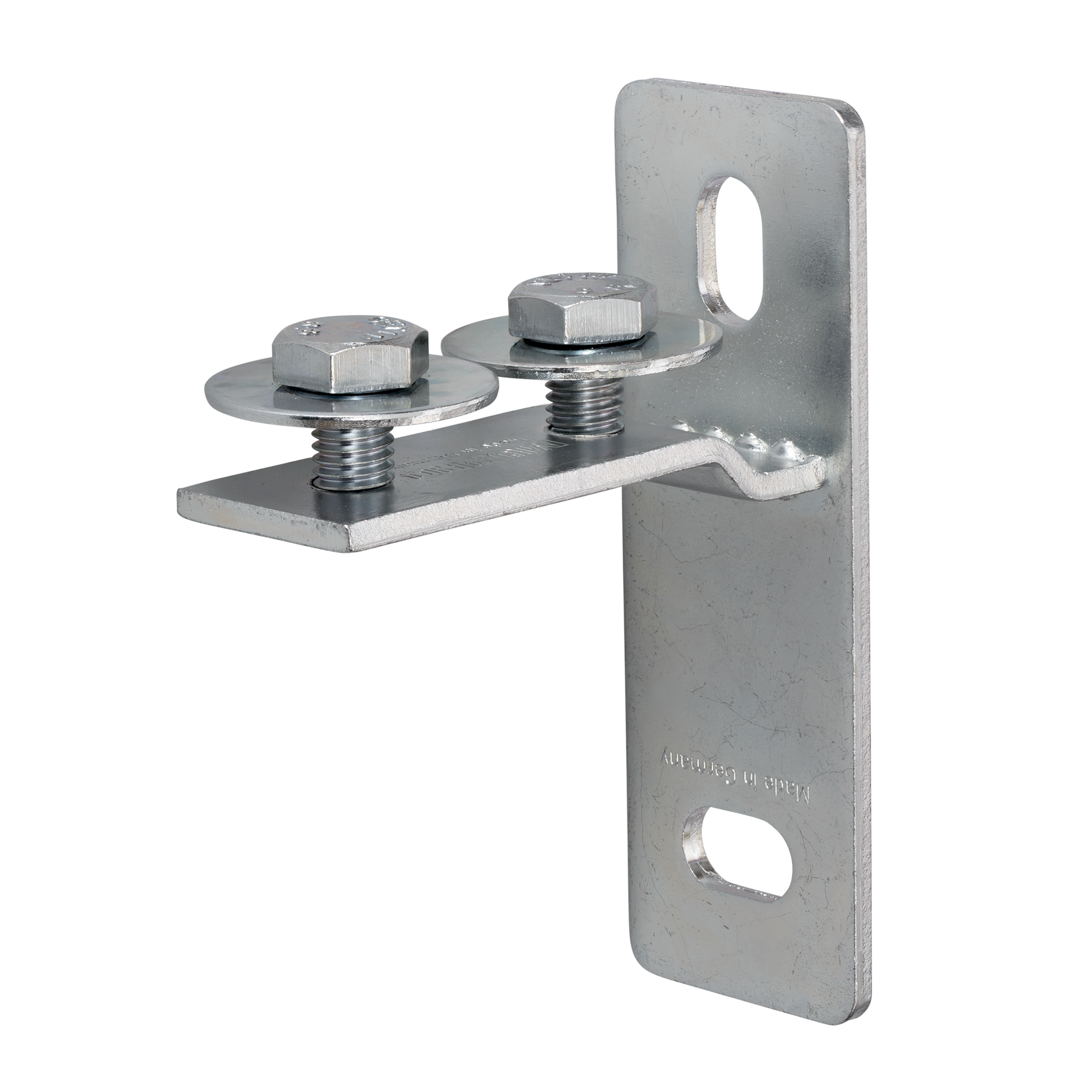

MPC-Channel support brackets

stainless steel

Display variants as list

Design:

cross lengthwise

For profiles:

27/18, 28/30 38/40

Surface:

V2A V4A

Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

Ideal for attachment of MPC-Support channels as a cross-beam in shafts and ducts
For right-angled connection of two channels where section slots do not have the same alignment
Applicable as floor or ceiling mounting for vertical MPC-Support channels

Advantages

The vertical and horizontal holes in the base plate enable easy height adjustment of the MPC-Channel support bracket
Supplied with two clamping bolts, pre-installed

Product number	Design	For profiles	Surface	Action
156801	cross	27/18, 28/30	V2A	Pieces
156803	cross	38/40	V2A	Pieces
156800	lengthwise	27/18, 28/30	V2A	Pieces
156802	lengthwise	38/40	V2A	Pieces
156805	cross	27/18, 28/30	V4A	Pieces
156807	cross	38/40	V4A	Pieces
156804	lengthwise	27/18, 28/30	V4A	Pieces
156806	lengthwise	38/40	V4A	Pieces
