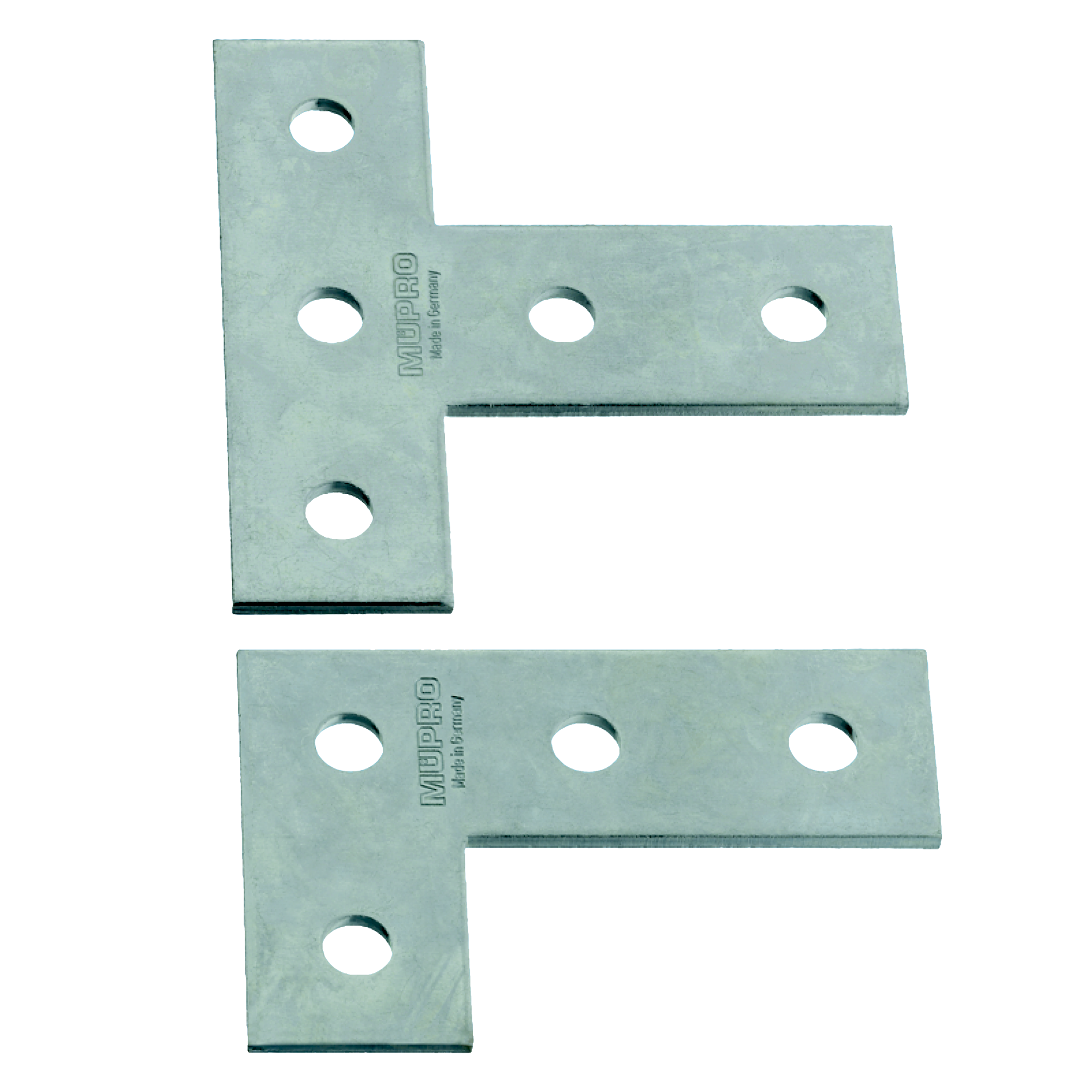

Angle- and T-connection plates

Angle- and T-connection plates

Display variants as list
Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

  • Strong connection elements for frames and pre-wall installations using the MPC- and MPR-System components

Advantages

  • Simple and quick connection of angles and T-connections
  • The mounting plates enable frame construction in one plane in which the channel slots have the same alignment
  • Good adaptation to rail widths; in the case of frame constructions, the corners remain free
  • Quick and simple attachment in combination with the MPC-Quick fastener for angle mounting
  • Hole spacings allow pass-through mounting using the MPC- and MPR-Support channels
Support channels
for MPC- and MPR-Profiles
Product type
Connecting parts
Surface
hot-dip galvanised | galvanised | V2A | V4A
Weitere technische Details finden Sie im Datenblatt.
