Angle rail

Angle rail

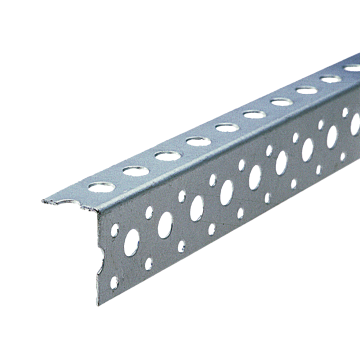

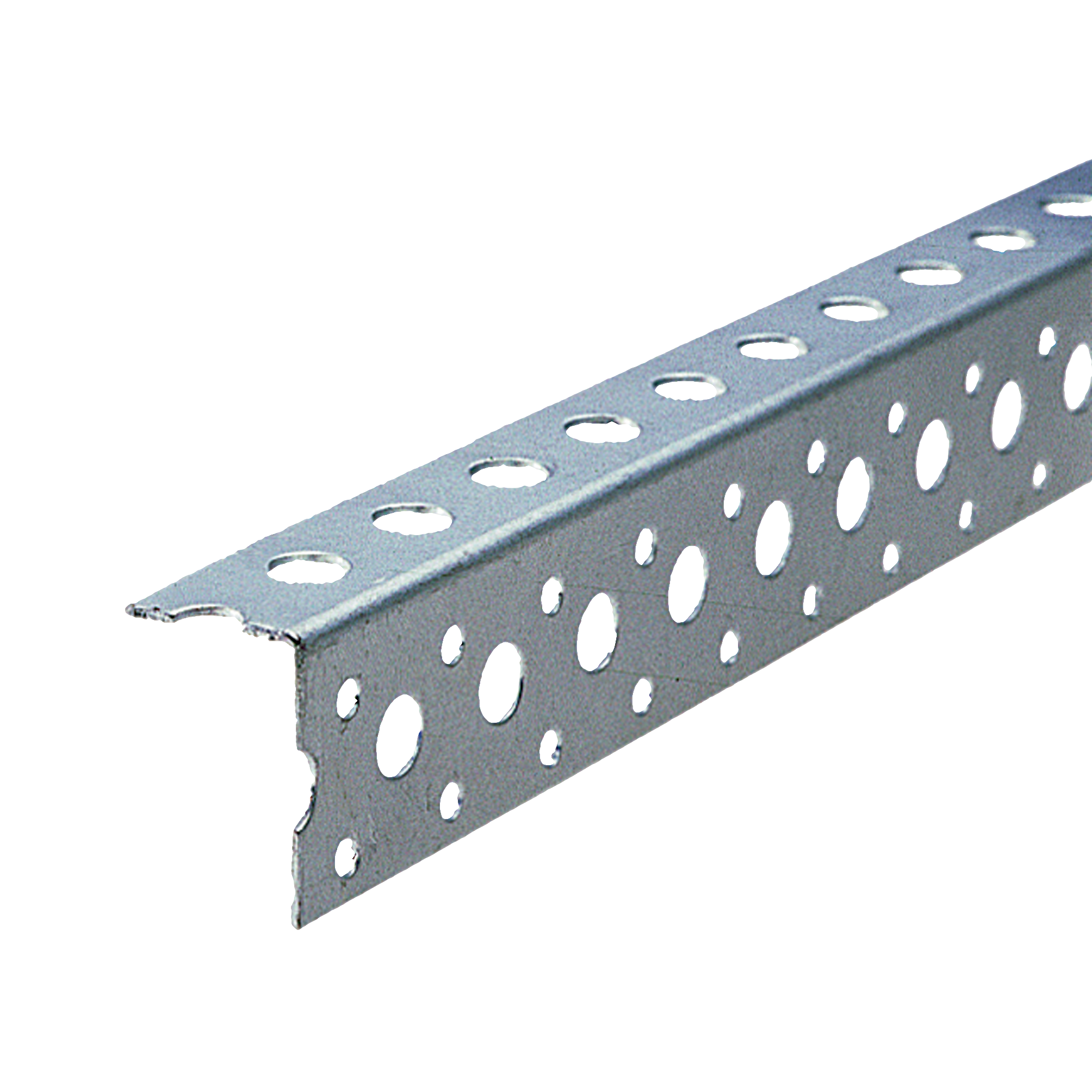

Angle rail, length: 1.000 mm, galvanised

Art.no.: 127858
Sales unit: 25 Pieces
Weight/item: 0.390 kg
Pieces

Field of application

  • For the attachment of pipelines in dry building construction
  • For screwing or riveting on metal supports of drywalls

Advantages

  • Versatile use at restaurations or renovations
  • Connection options via 4.1 mm and 8.5 mm perforation

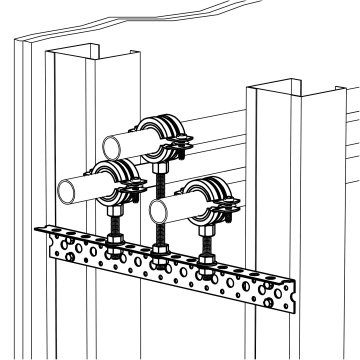

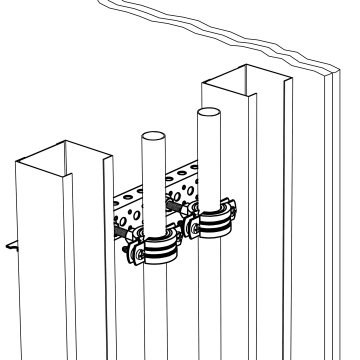

  • Attachment for vertical and horizontal pipe routings
Basic data text
Angle rail, length: 1.000 mm, galvanised
Support channels
for StaboFix@ fastening systems
Product type
Accessories support channels
Material
Steel
Surface
galvanised
eCl@ss 7.1
23-15-91-01
eCl@ss 11.1
23-36-01-90

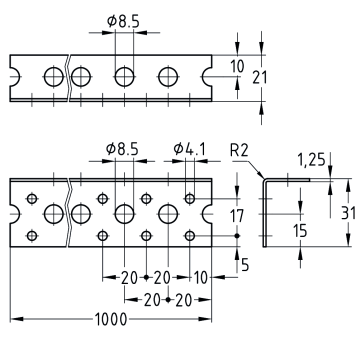

Length
1,000 mm
Perforation
4.1 mm for screws and rivets, 8.5 mm for pipe fastenings
Customs tariff number
72166110
Weitere technische Details finden Sie im Datenblatt.
