MPC-Girder support

MPC-Girder support

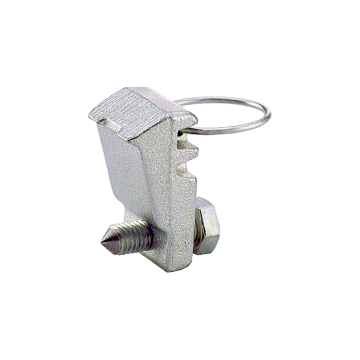

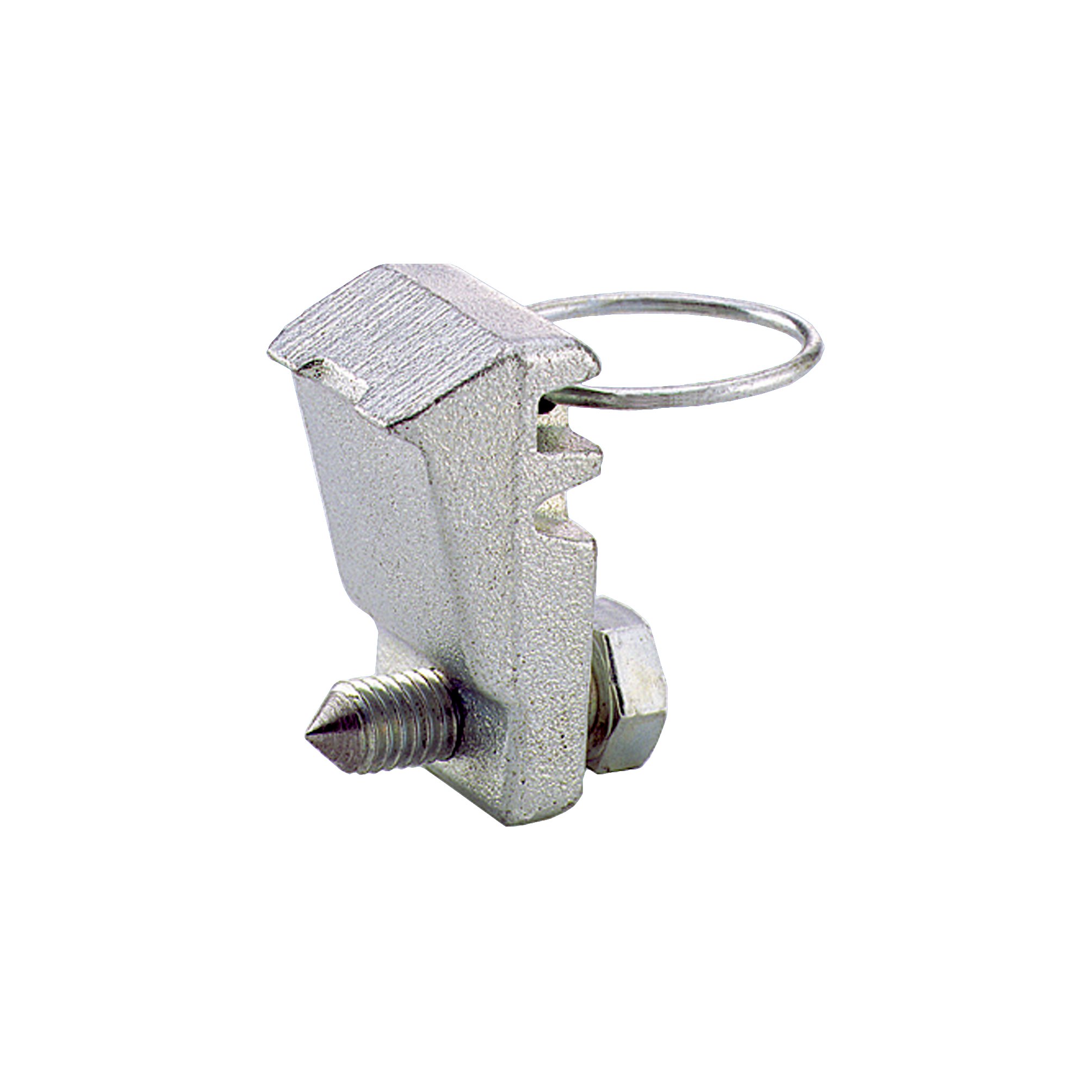

MPC-Girder support for profiles 27/18-28/30, galvanised

Art.no.: 130286
Sales unit: 10 Pieces
Weight/item: 0.094 kg
Pieces

Field of application

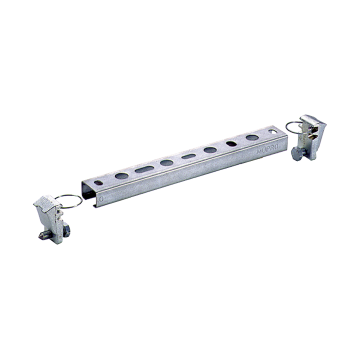

  • Clamping element for fastening MPC-Support channel sections between the flanges of structural steel sections

Advantages

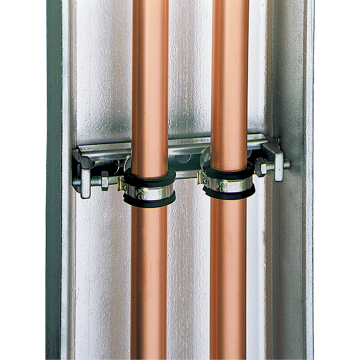

  • Ideal for attachment of pipelines and electrical systems to steel girders
  • Attachment on girder without welding or drilling
  • Tight hold due to 3‑point load transfer on both sides
  • Lock washer for a secure hold in the channel section during installation

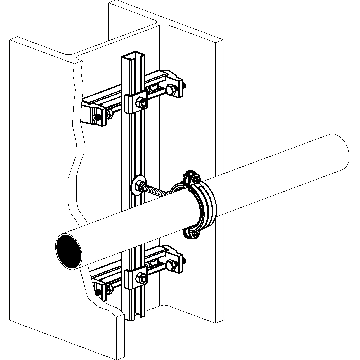

  • Simple attachment of pipelines using MPC-Hammer head fasteners

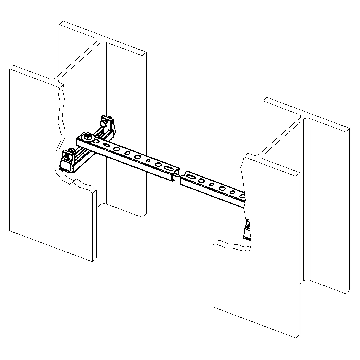

  • Adaptable to all girder widths on site by the length of the channel section
Basic data text:
MPC-Girder support for profiles 27/18-28/30, galvanised
Support channels:
for MPC-Profiles
Product type:
Accessories support channels
For profiles:
27/18, 28/30

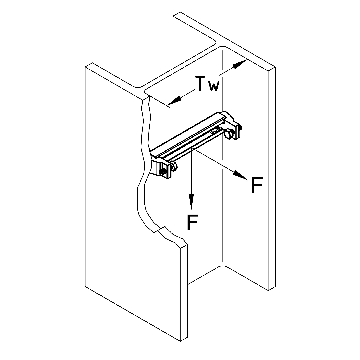

For girder flange expanses Tw:
90-350 mm
Material:
Steel
Surface:
galvanised
eCl@ss 7.1:
23-15-92-90
eCl@ss 11.1:
23-36-01-91
Max. recommended load:
850 N
Cut length L of the channel section:
L = Tw - 25 mm
Customs tariff number:
73269060
