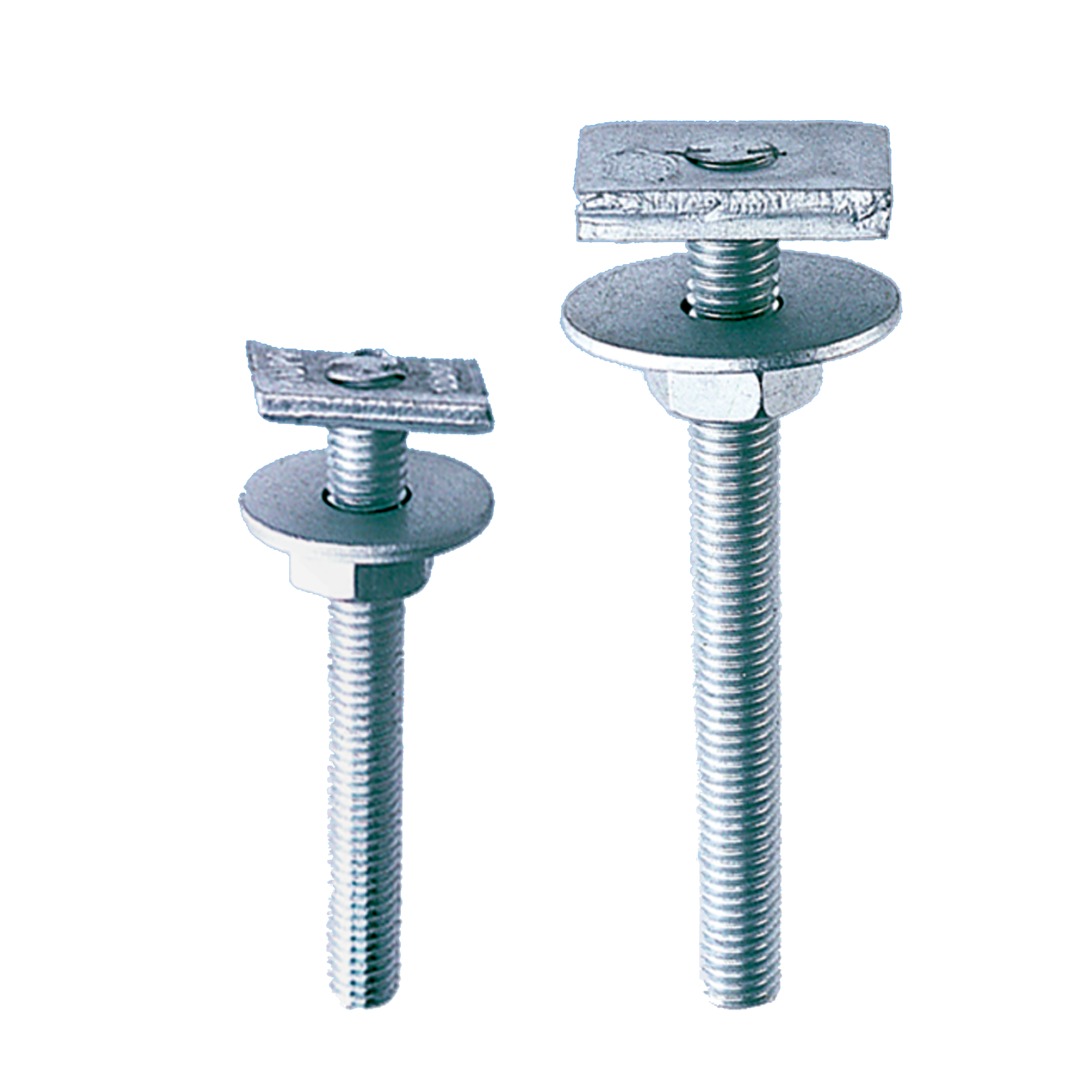

MPC-Hammer-head fasteners

Display variants as list

Surface:

galvanised V2A V4A

For profiles:

27/18, 28/30 38/24-40/120 38/40, 40/60

Connecting thread:

M8 M10 M12

Length:

20 mm 25 mm 30 mm 35 mm 40 mm 50 mm 55 mm 60 mm 70 mm 80 mm 90 mm 100 mm 120 mm 140 mm 160 mm 180 mm

Field of application

For time-saving, efficient attachment of pipe clamps to MPC-Support channels

Advantages

Practical range of lengths
For insertion at any point into the slot of channel support profiles 27/18 and 28/30
Lateral adjustment at any time, allows perfect alignment of the pipeline after installation
Various lengths and thread diameters can be combined within the same channel
Supplied with with washers and hexagonal nuts

Support channels:: for MPC-Profiles
Product type:: Connecting parts
Surface:: V4A | galvanised | V2A

MPC-Hammer-head fasteners, stainless steel

MPC-Hammer-head fasteners, galvanised

Product number	Surface	For profiles	Connecting thread	Length	Action
115129	galvanised	27/18, 28/30	M8	20 mm	Pieces
115134	V2A	27/18, 28/30	M8	25 mm	Pieces
115152	galvanised	27/18, 28/30	M8	30 mm	Pieces
115104	galvanised	27/18, 28/30	M10	35 mm	Pieces
115166	galvanised	27/18, 28/30	M8	40 mm	Pieces
115175	galvanised	27/18, 28/30	M8	50 mm	Pieces
114999	galvanised	38/24-40/120	M10	55 mm	Pieces
115178	galvanised	27/18, 28/30	M8	60 mm	Pieces
115181	galvanised	27/18, 28/30	M8	70 mm	Pieces
115190	galvanised	27/18, 28/30	M8	80 mm	Pieces
115193	galvanised	27/18, 28/30	M8	90 mm	Pieces
115113	galvanised	27/18, 28/30	M8	100 mm	Pieces
115116	galvanised	27/18, 28/30	M8	120 mm	Pieces
115119	galvanised	27/18, 28/30	M8	140 mm	Pieces
115122	galvanised	27/18, 28/30	M8	160 mm	Pieces
115125	galvanised	27/18, 28/30	M8	180 mm	Pieces
115056	galvanised	38/24-40/120	M8	30 mm	Pieces
115074	galvanised	38/24-40/120	M8	35 mm	Pieces
115080	galvanised	38/24-40/120	M8	40 mm	Pieces
115092	galvanised	38/24-40/120	M8	50 mm	Pieces
115101	galvanised	38/24-40/120	M8	80 mm	Pieces
115035	galvanised	38/24-40/120	M8	100 mm	Pieces
115038	galvanised	38/24-40/120	M8	120 mm	Pieces
115041	galvanised	38/24-40/120	M8	140 mm	Pieces
115044	galvanised	38/24-40/120	M8	160 mm	Pieces
115047	galvanised	38/24-40/120	M8	180 mm	Pieces
114990	galvanised	38/24-40/120	M10	35 mm	Pieces
115002	galvanised	38/24-40/120	M10	80 mm	Pieces
114963	galvanised	38/24-40/120	M10	100 mm	Pieces
114966	galvanised	38/24-40/120	M10	120 mm	Pieces
114969	galvanised	38/24-40/120	M10	140 mm	Pieces
114972	galvanised	38/24-40/120	M10	160 mm	Pieces
114975	galvanised	38/24-40/120	M10	180 mm	Pieces
115014	galvanised	38/24-40/120	M12	35 mm	Pieces
115143	V2A	27/18, 28/30	M8	30 mm	Pieces
115157	V2A	27/18, 28/30	M8	40 mm	Pieces
115169	V2A	27/18, 28/30	M8	50 mm	Pieces
115184	V2A	27/18, 28/30	M8	80 mm	Pieces
115139	V4A	27/18, 28/30	M8	25 mm	Pieces
115148	V4A	27/18, 28/30	M8	30 mm	Pieces
115160	V4A	27/18, 28/30	M8	40 mm	Pieces
115172	V4A	27/18, 28/30	M8	50 mm	Pieces
115187	V4A	27/18, 28/30	M8	80 mm	Pieces
115050	V2A	38/40, 40/60	M8	25 mm	Pieces
115053	V2A	38/40, 40/60	M8	35 mm	Pieces
115098	V2A	38/40, 40/60	M8	50 mm	Pieces
114978	V2A	38/40, 40/60	M10	35 mm	Pieces
115008	V2A	38/40, 40/60	M12	35 mm	Pieces
115059	V4A	38/40, 40/60	M8	25 mm	Pieces
115077	V4A	38/40, 40/60	M8	35 mm	Pieces
115095	V4A	38/40, 40/60	M8	50 mm	Pieces
114993	V4A	38/40, 40/60	M10	35 mm	Pieces
115017	V4A	38/40, 40/60	M12	35 mm	Pieces
