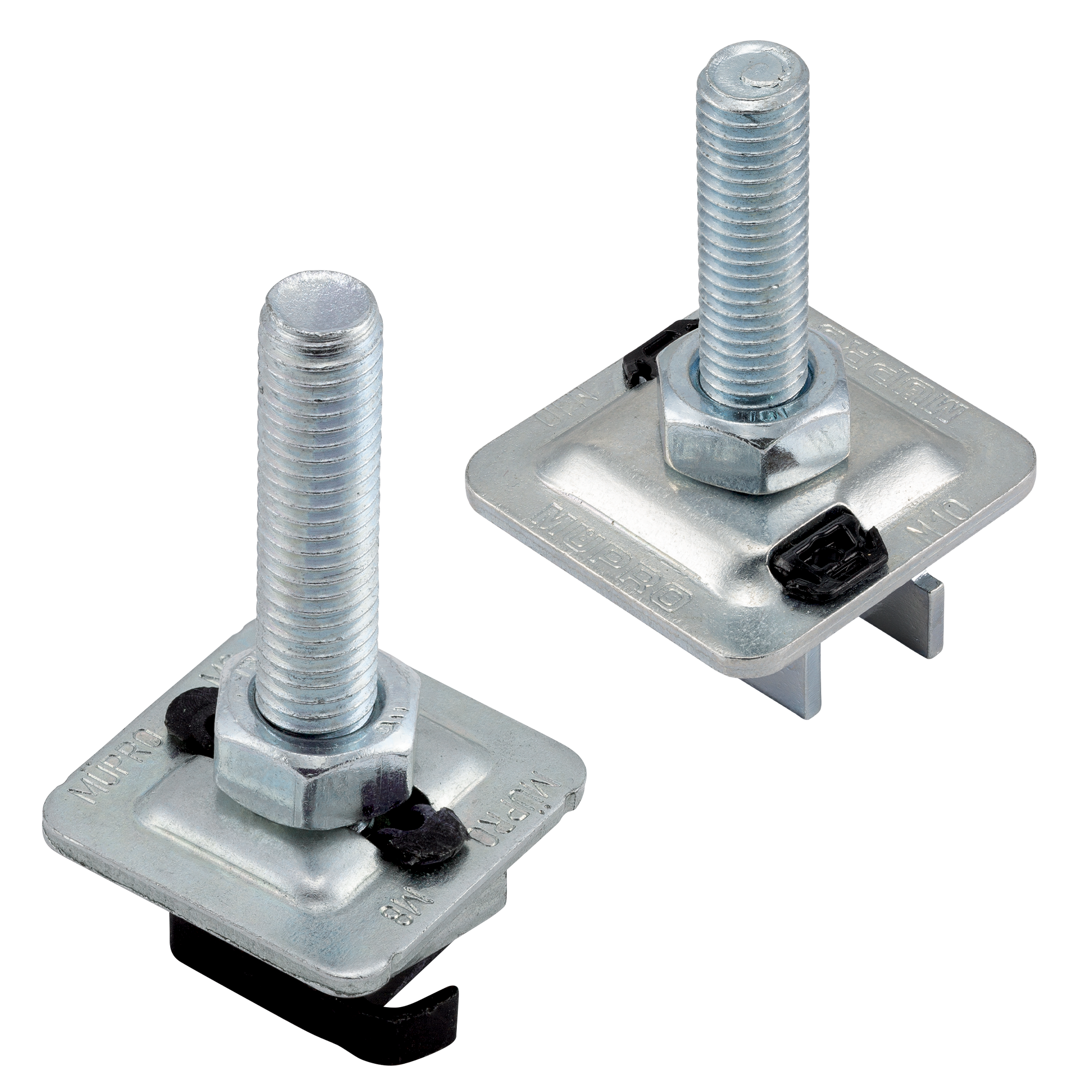

MPC-Quick fasteners+

MPC-Quick fasteners+

with external thread, galvanised

Display variants as list

Connecting thread:

M8 M10

For profiles:

27/18, 28/30 38/24-40/120

Usable thread length L:

7 mm 25 mm 30 mm 40 mm 45 mm 50 mm 65 mm

Field of application

Secure and easy installation in slot of MPC-Support channel in order to connect pipe clamps
For use in dry interiors

Advantages

Time-saving attachment in the channel slot, even if subsequently fitted between existing pipe sections
Simple and secure handling: insert in the MPC-Support channels - turn - and the MPC-Quick fastener is fixed. No slipping, no falling out
High quality and load capacity
Threaded pins are secured against unscrewing

Support channels:: for MPC-Profiles
Product type:: Connecting parts
Material:: Steel
Surface:: galvanised

MPC-Quick fasteners+, with external thread, galvanised

	Product number	Connecting thread	For profiles	Usable thread length L	Action
	175767	M8	27/18, 28/30	7 mm	Pieces
	175773	M8	38/24-40/120	7 mm	Pieces
	175768	M8	27/18, 28/30	25 mm	Pieces
	175774	M8	38/24-40/120	30 mm	Pieces
	175775	M8	38/24-40/120	40 mm	Pieces
	175769	M8	27/18, 28/30	45 mm	Pieces
	175770	M8	27/18, 28/30	65 mm	Pieces
	175776	M10	38/24-40/120	7 mm	Pieces
	175777	M10	38/24-40/120	25 mm	Pieces
	175772	M10	27/18, 28/30	30 mm	Pieces
	175778	M10	38/24-40/120	50 mm	Pieces
