MPC-Saddle support type 3

MPC-Saddle support type 3

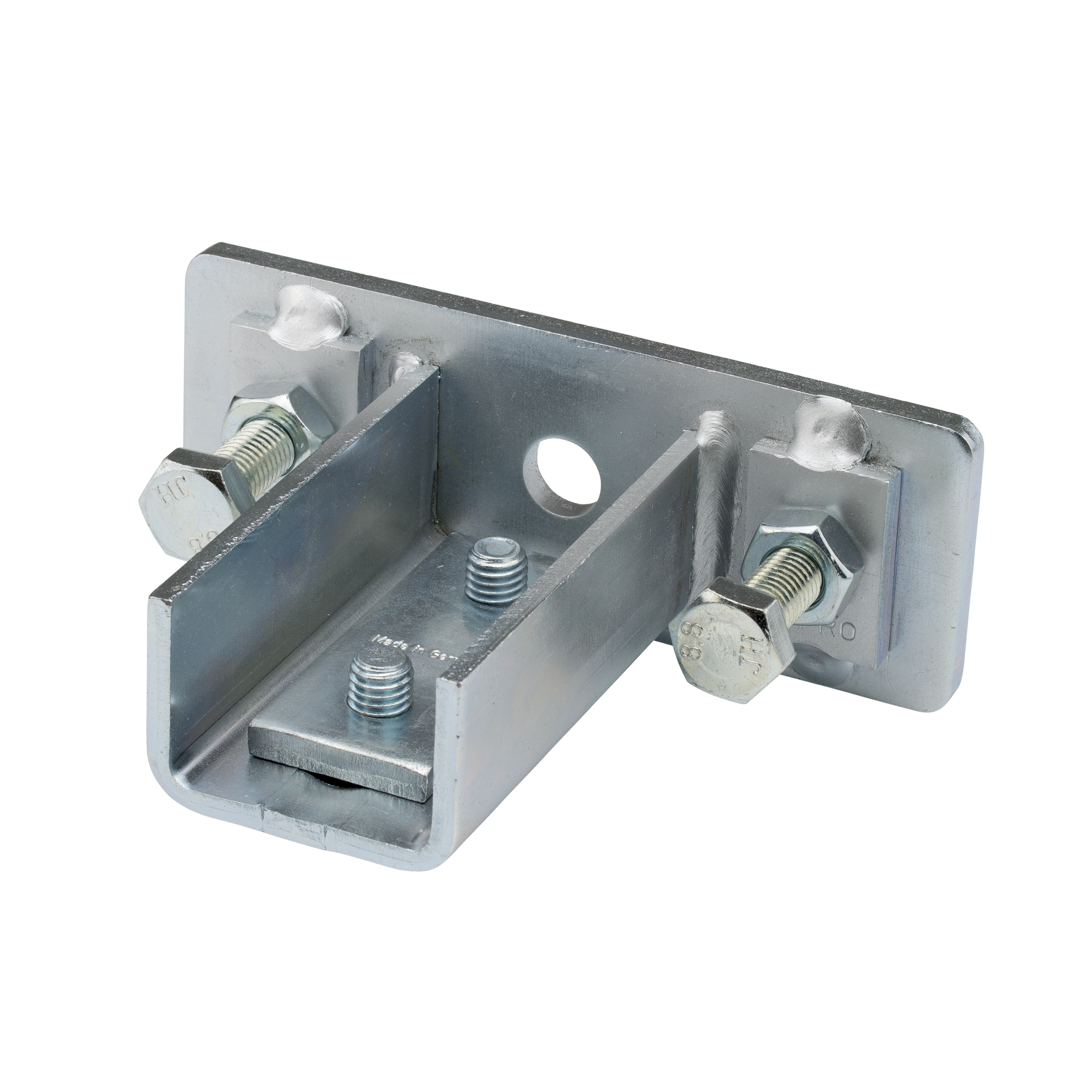

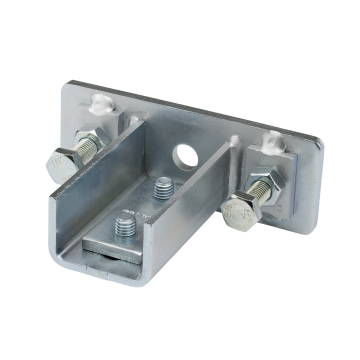

MPC-Saddle support crosswise, type 3 for profiles 38/24-40/60, galvanised

Art.no.: 156808
Sales unit: 8 Pieces
Weight/item: 0.892 kg
Pieces

Field of application

  • Crosswise saddle support with clamping bolts for a safe and quick installation of the MPC-Support channels between the flange of structural steel sections

Advantages

  • Fastening on the structural steel element without drilling or welding work, saves time and costs
  • Secure installation of the MPC-Support channels in the channel slot through double rail nuts
  • Can be fastened quickly and easily via clamping screws
  • Universal implementation at different section widths
Basic data text:
MPC-Saddle support crosswise, type 3 for profiles 38/24-40/60, galvanised
Support channels:
for MPC-Profiles
Design:
cross
Product type:
Connecting parts
For profiles:
38/24-40/60
For girder flange expanses Tw:
≥ 260 mm
Material:
Steel
Surface:
galvanised
eCl@ss 11.1:
23-36-01-91
eCl@ss 7.1:
23-15-92-90
Dimension B:
50 mm
Dimension A:
136 mm
Dimension b:
42 mm
Dimension L:
90 mm
Dimension L1:
91.5 mm
Dimension s:
6 mm
Max. recommended load for cut length L ≤ 500 mm:
3,000 N
Max. recommended load for cut length L ≤ 700 mm:
2,000 N
Max. recommended load for cut length L ≤ 900 mm:
1,000 N
Tightening torque:
10 Nm
Cut length L of the channel section:
Girder flange expanse (inside), Twl - 17 mm
Customs tariff number:
73269060
