MPC-Support channels

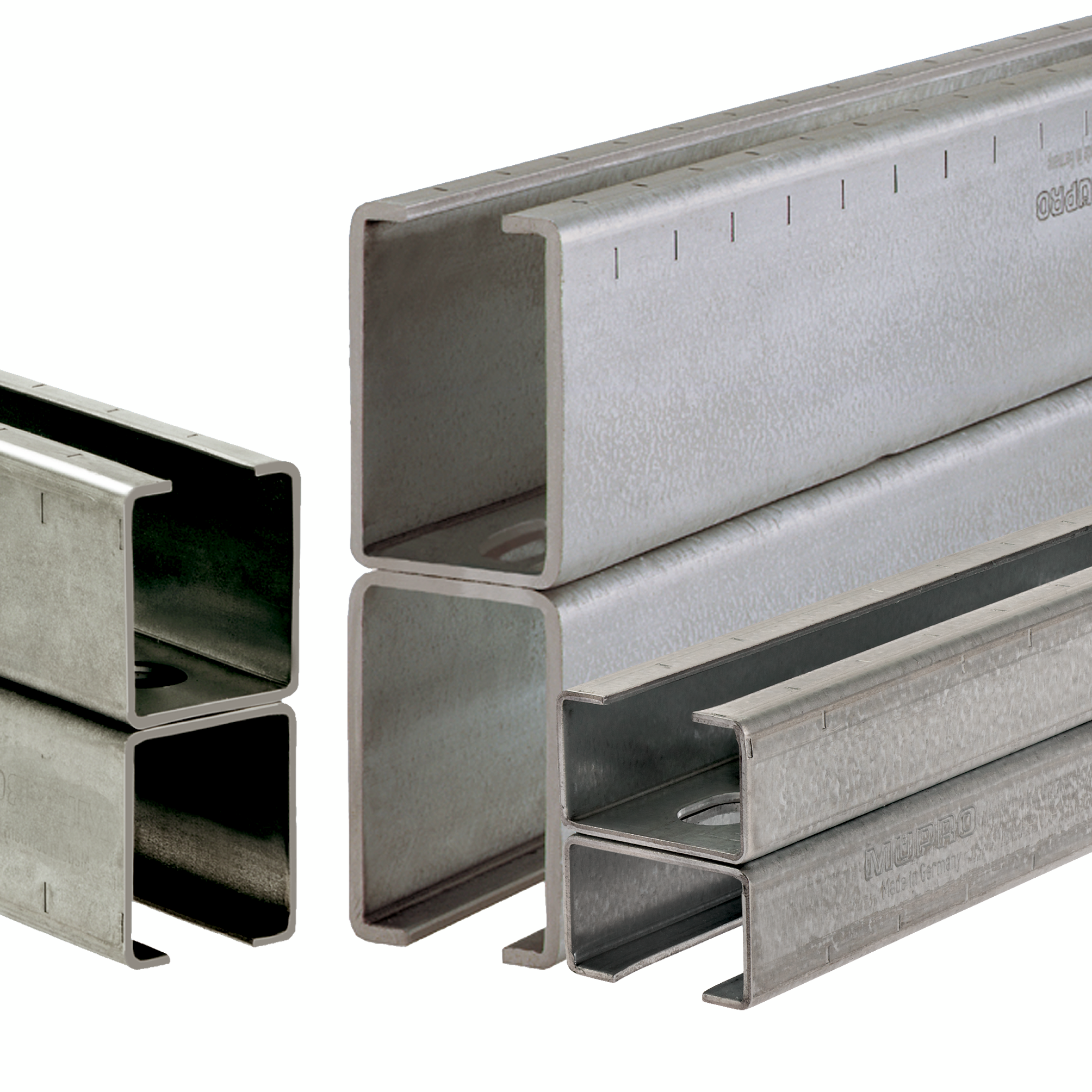

H-Profiles

Display variants as list

Profile:

38/48/1.75 H 38/80/2.0 H 40/120/3.0 H

Length:

2000 mm 4000 mm 6000 mm 6640 mm

Surface:

galvanised hot-dip galvanised

Field of application

Ideal for space-saving support of multisection pipeways between ceiling beams
Ideal for pipe installation as support structure as well as for air ducts in dry interiors
Variety of mounting options for pre-wall installations and shelves in combination with extensive range of system components

Advantages

Fast and efficient attachment of piping and pipe routes
Ideal combination of high bending stiffness and ease of installation
Channel slots on both sides allow simple and quick alignment of all suspended and floor-mounted pipe supports
Scale marks sideways and on the side with the slot simplify the alignment of the attachment elements during installation and facilitate the measuring and cutting to length of the section on site
Suitable vibration control elements for all support channels available
Clean-cut appearance by the use of MPC-protection caps

Product number	Profile	Length	Surface	Action
129870	38/80/2.0 H	2000 mm	galvanised	Pieces
129872	38/80/2.0 H	4000 mm	galvanised	Pieces
141179	38/48/1.75 H	6000 mm	galvanised	Pieces
129874	38/80/2.0 H	6640 mm	galvanised	Pieces
129875	40/120/3.0 H	6640 mm	galvanised	Pieces
130033	40/120/3.0 H	6640 mm	hot-dip galvanised	Pieces
