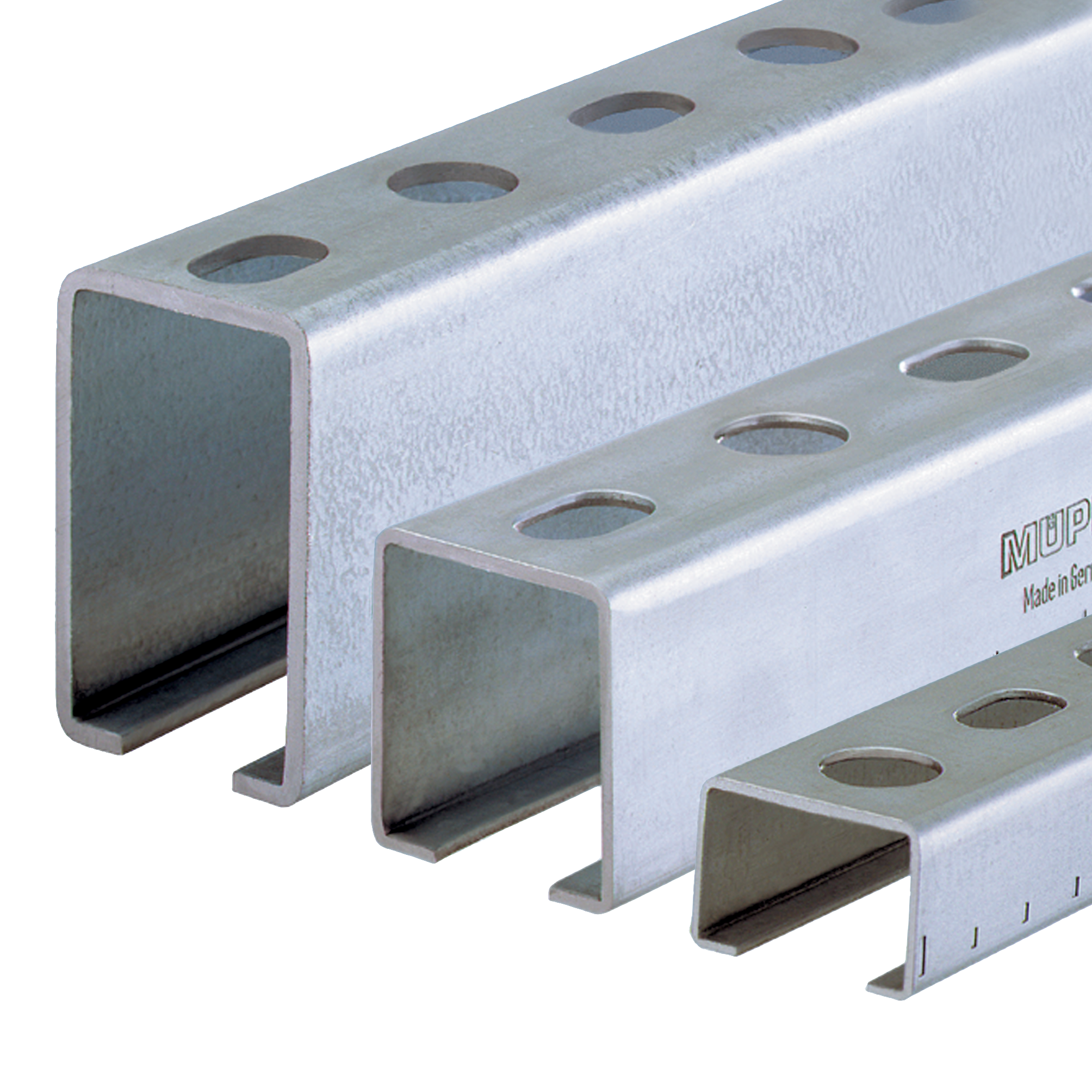

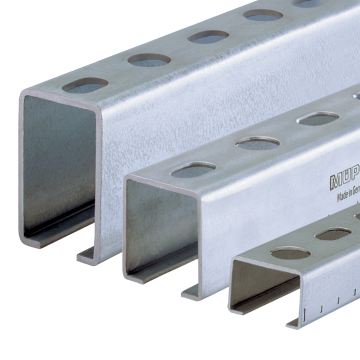

MPC-Support channels

Display variants as list

Profile:

27/18/1.0 L 27/18/1.25 28/30/1.75 38/24/1.75 38/40/2.0 39/52/2.5 40/60/3.0 40/80/3.0

Length:

1000 mm 2000 mm 3000 mm 3040 mm 4000 mm 6000 mm

Surface:

galvanised hot-dip galvanised V2A V4A

Field of application

Ideal for pipe installation as support structure as well as for air ducts in dry interiors
Variety of mounting options for pre-wall installations and shelves in combination with extensive range of system components

Advantages

Fast and efficient attachment of piping and pipe routes
Scale marks sideways and on the side with the slot simplify the alignment of the attachment elements during installation and facilitate the measuring and cutting to length of the section on site
For secure fixing that is adjustable laterally and vertically
High bending stiffness due to the cross-section design
For setting up structures with correctly measured static loads by means of diverse connection components
Suitable vibration control elements for all support channels available
Clean-cut appearance by the use of MPC-protection caps

Support channels:: for MPC-Profiles
Product type:: Support channels
Surface:: hot-dip galvanised | V4A | galvanised | V2A

MPC-Support channels, sendzimir galvanised

MPC-Support channels, stainless steel

MPC-Support channels, hot-dip galvanised

Product number	Profile	Length	Surface	Action
129883	27/18/1.25	1000 mm	galvanised	Pieces
129911	27/18/1.25	2000 mm	galvanised	Pieces
129876	27/18/1.0 L	2000 mm	galvanised	Pieces
105208	27/18/1.25	3000 mm	galvanised	Pieces
118692	28/30/1.75	3040 mm	galvanised	Pieces
118822	28/30/1.75	4000 mm	galvanised	Pieces
130003	27/18/1.25	6000 mm	galvanised	Pieces
118590	28/30/1.75	2000 mm	galvanised	Pieces
118994	28/30/1.75	6000 mm	galvanised	Pieces
139920	38/24/1.75	2000 mm	galvanised	Pieces
153256	38/24/1.75	3040 mm	galvanised	Pieces
139922	38/24/1.75	6000 mm	galvanised	Pieces
129917	38/40/2.0	2000 mm	galvanised	Pieces
129945	38/40/2.0	3040 mm	galvanised	Pieces
129964	38/40/2.0	4000 mm	galvanised	Pieces
130011	38/40/2.0	6000 mm	galvanised	Pieces
130015	39/52/2.5	6000 mm	galvanised	Pieces
129921	40/60/3.0	2000 mm	galvanised	Pieces
129946	40/60/3.0	3040 mm	galvanised	Pieces
129965	40/60/3.0	4000 mm	galvanised	Pieces
130020	40/60/3.0	6000 mm	galvanised	Pieces
130024	40/80/3.0	6000 mm	galvanised	Pieces
129907	27/18/1.25	2000 mm	V2A	Pieces
129999	27/18/1.25	6000 mm	V2A	Pieces
129908	27/18/1.25	2000 mm	V4A	Pieces
118582	28/30/1.75	2000 mm	V2A	Pieces
118976	28/30/1.75	6000 mm	V2A	Pieces
118586	28/30/1.75	2000 mm	V4A	Pieces
118979	28/30/1.75	6000 mm	V4A	Pieces
129914	38/40/2.0	2000 mm	V2A	Pieces
129962	38/40/2.0	4000 mm	V2A	Pieces
130006	38/40/2.0	6000 mm	V2A	Pieces
129915	38/40/2.0	2000 mm	V4A	Pieces
129963	38/40/2.0	4000 mm	V4A	Pieces
130007	38/40/2.0	6000 mm	V4A	Pieces
130017	40/60/3.0	6000 mm	V2A	Pieces
130018	40/60/3.0	6000 mm	V4A	Pieces
129909	27/18/1.25	2000 mm	hot-dip galvanised	Pieces
130004	27/18/1.25	6000 mm	hot-dip galvanised	Pieces
118990	28/30/1.75	6000 mm	hot-dip galvanised	Pieces
129916	38/40/2.0	2000 mm	hot-dip galvanised	Pieces
130008	38/40/2.0	6000 mm	hot-dip galvanised	Pieces
129920	40/60/3.0	2000 mm	hot-dip galvanised	Pieces
130019	40/60/3.0	6000 mm	hot-dip galvanised	Pieces
130022	40/80/3.0	6000 mm	hot-dip galvanised	Pieces
