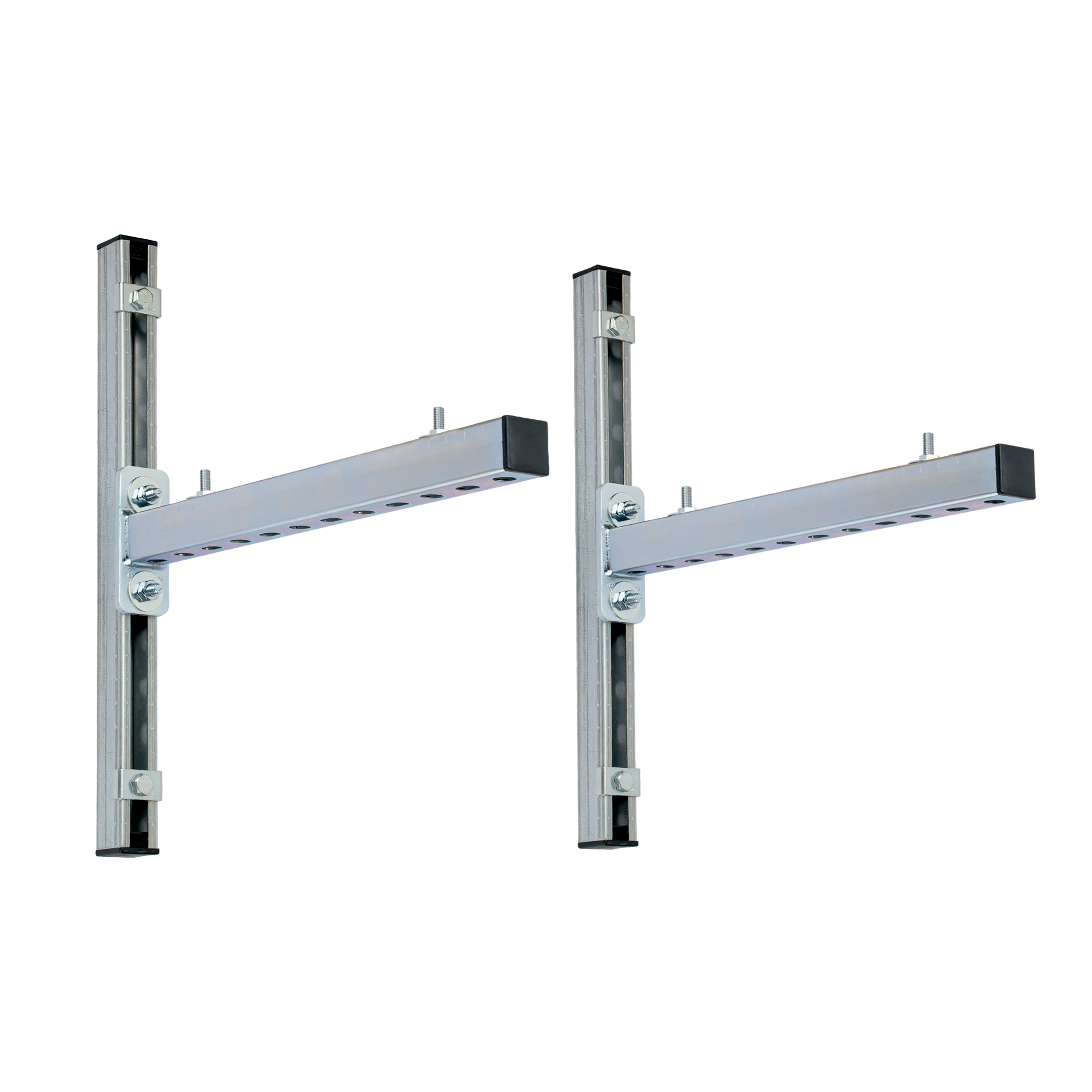

MPC-Wall hanger supports

MPC-Wall hanger supports

without vibration control, galvanised

Display variants as list
Select a variant for further information, images and documents.

Field of application

  • For wall mounting of air-conditioning units where no vibration damping is required
  • Galvanised version for use in dry interiors

Advantages

  • MPC-support channels cut-to length and with holes on the rear side including MPC-protection caps
  • Various bracket lengths available (depending on device type)
  • Simple height adjustment of the brackets due to sliding MPC-Hammer head bolts
  • Variable adjustment of the mounting spaces on the bracket due to MPC-Rail nuts
Support channel systems
for MPC-Profiles
Product type
Wall hanger brackets
Profile
38/40/2.0
Material
Steel
Surface
galvanised
Scope of supply

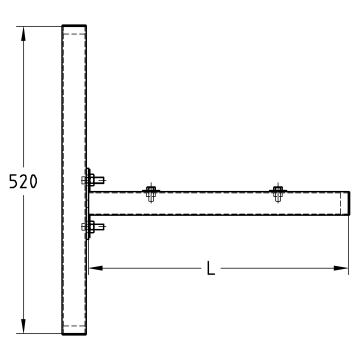

Complete kit consists of: 2 MPC-Support channels 38/40, length 520 mm, 2 MPC-Wall hanger brackets 38/40, 6 MPC-Protection caps for 38/40 profile, 4 MPC-Hammer-head bolts M10/30, 4 Washers 8.5 x 36 x 2 mm, 4 MPC-Rail nuts M8 for 38/40 profile, 4 Hexagon he
Further technical details can be found in the data sheet.
