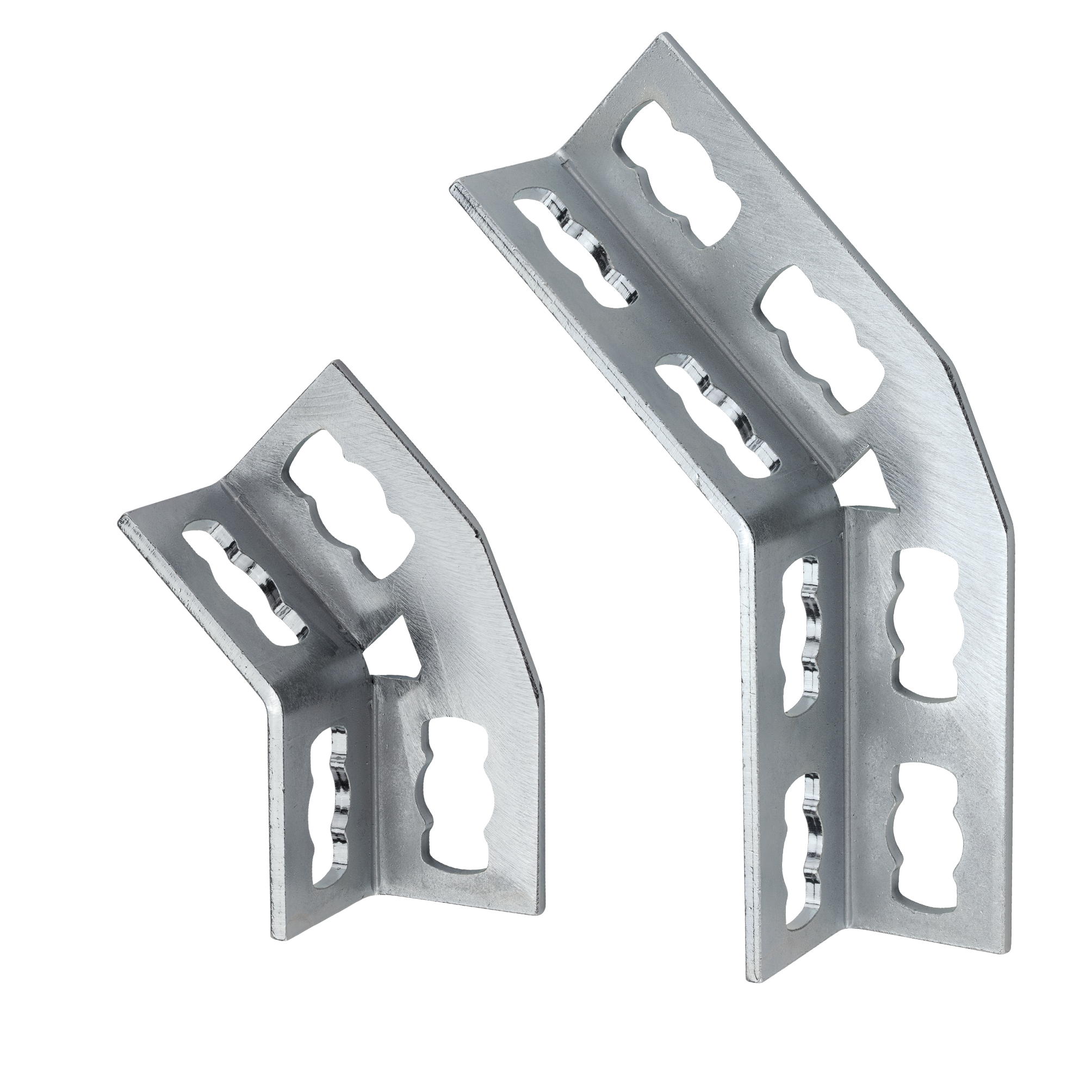

MPR-Angle connectors 135° type S+

MPR-Angle connectors 135° type S+

Display variants as list

Design:

2+2 4+4

Surface:

galvanised hot-dip galvanised

Field of application

Connecting element for on-the-wall installations, shelves and rail constructions, preferably by using the MPR-Support channel 41/41
Hot-dip galvanised - for indoor and outdoor use; galvanised - for indoor use

Advantages

Fast and simple installation of angled joints with the MPR-Connection lock type S+
Flexible use due to up to 4 connection locks depending on the design
Increased load transfer when using 2 connection locks per leg
Flexible connections in 2 directions with MPR-Support channels 41/41

Support channels:: for MPR-Profiles
Product type:: Quick-mounting system type S+

MPR-Angle connectors 135° type S+, hot-dip galvanised

MPR-Angle connectors 135° type S+, galvanised

	Product number	Design	Surface	Action
	165833	2+2	galvanised	Pieces
	165834	4+4	galvanised	Pieces
	165883	2+2	hot-dip galvanised	Pieces
	165884	4+4	hot-dip galvanised	Pieces
