MPR-Construction bracket type S+

MPR-Construction bracket type S+

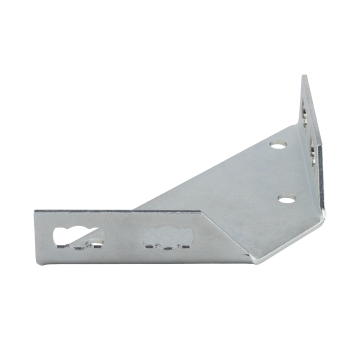

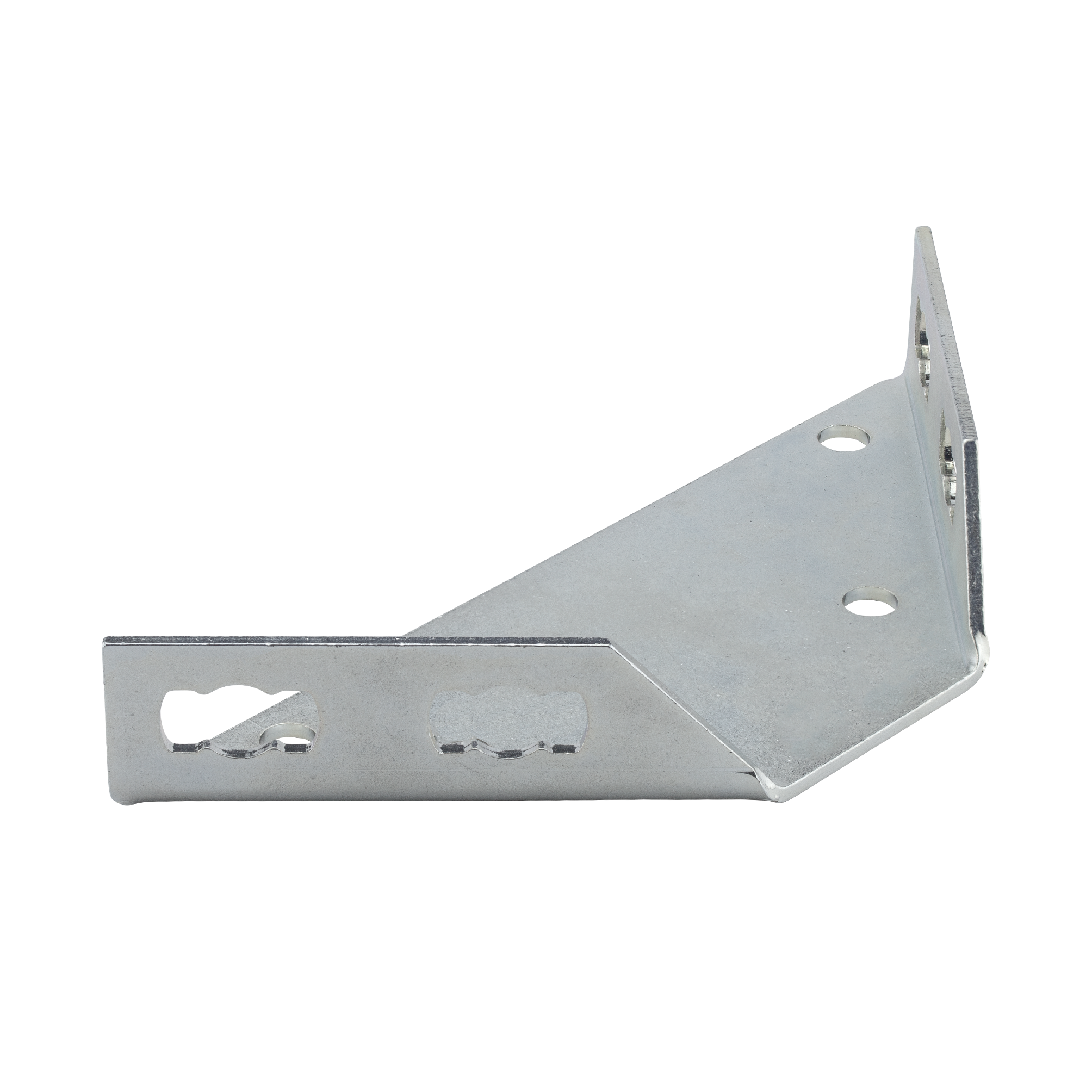

MPR-Construction bracket, type S+, hot-dip galvanised

Art.no.: 165914
Sales unit: 1 Pieces
Weight/item: 0.828 kg
Pieces

Field of application

  • Ideal connecting element for the construction of cross-beams, frames and shelving systems when used with MPR-Support channels
  • For indoor and outdoor use

Advantages

  • A wide variety of installation options in MPR-Support channels and with the connection lock type S+
  • Ensures stable corner joints
Basic data text
MPR-Construction bracket, type S+, hot-dip galvanised
Support channel systems
for MPR-Profiles
Product type
Quick-mounting system type S+
Material
Steel
Surface
hot-dip galvanised
Size
198 x 198 mm
eCl@ss 11.1
23-36-02-90
eCl@ss 7.1
23-15-92-90

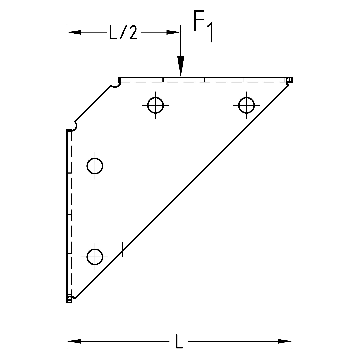

Permissible load F1
2,250 N

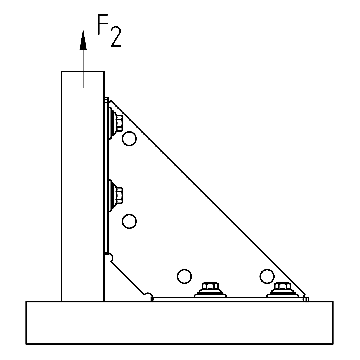

Admissible load F2 (material thickness of support channel 2.5 mm)
4,000 N
Customs tariff number
73089098
Weitere technische Details finden Sie im Datenblatt.
