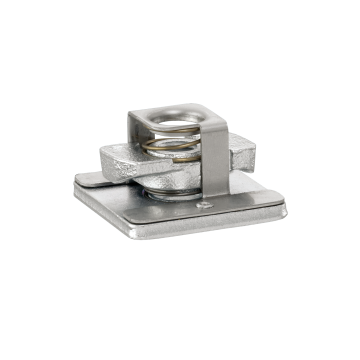

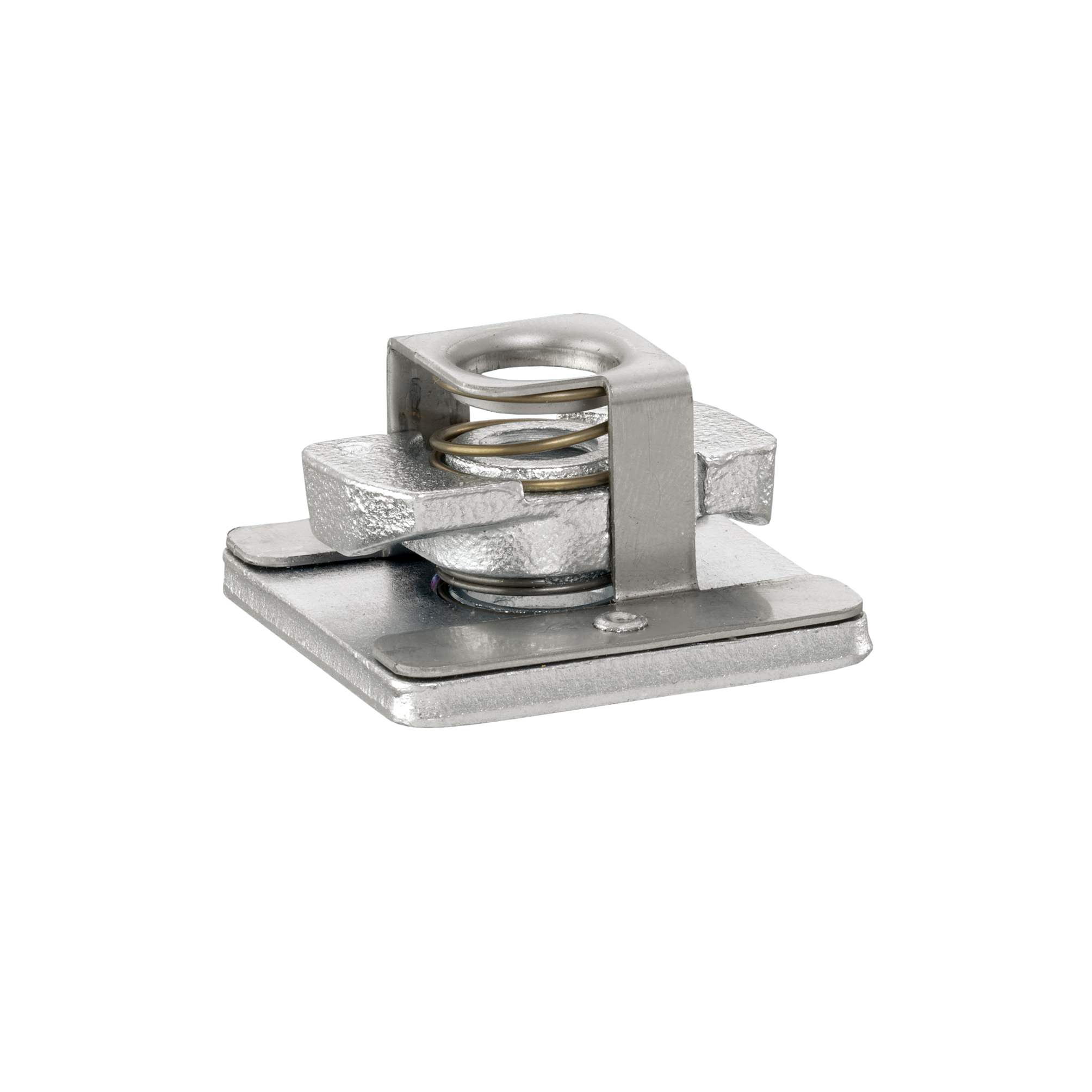

MPR-Quick fasteners

galvanised

Display variants as list

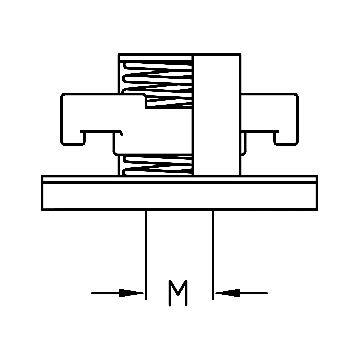

Connecting thread:

M8 M10 M12

Design:

For angle mounting standard

Field of application

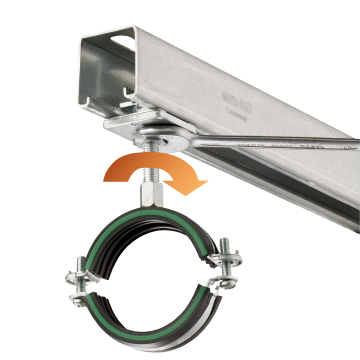

For secure and fast installation in the channel slot of MPR-Support channels for connecting pipe clamps and mounting elements
Angle-mounting for fast and efficient installation of brackets and mounting angles

Advantages

Versatile quick fastener for all common channel profiles with upturned edges in the channel slot

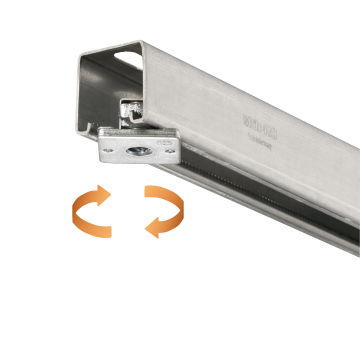

Simply turn into the slot - click and ready
For channels with a material thickness of 2 to 3 mm
Can be used for slot widths from 20 mm upwards

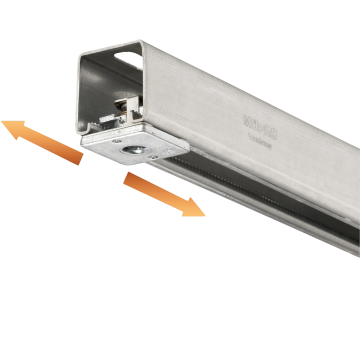

Safely retained after screwing in, alignable until screw is tightened
Secure hold even in vertical channel slots
Tooth profile on the fastener ensures form-locking connection with toothed channel sections
Suitable for MPR-Support channels 41/41

Product number	Connecting thread	Design	Action
120907	M8	standard	Pieces
120898	M10	standard	Pieces
120902	M12	standard	Pieces
120806	M8	For angle mounting	Pieces
120798	M10	For angle mounting	Pieces
