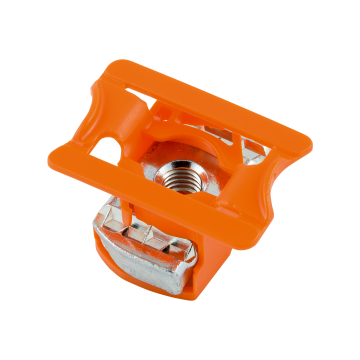

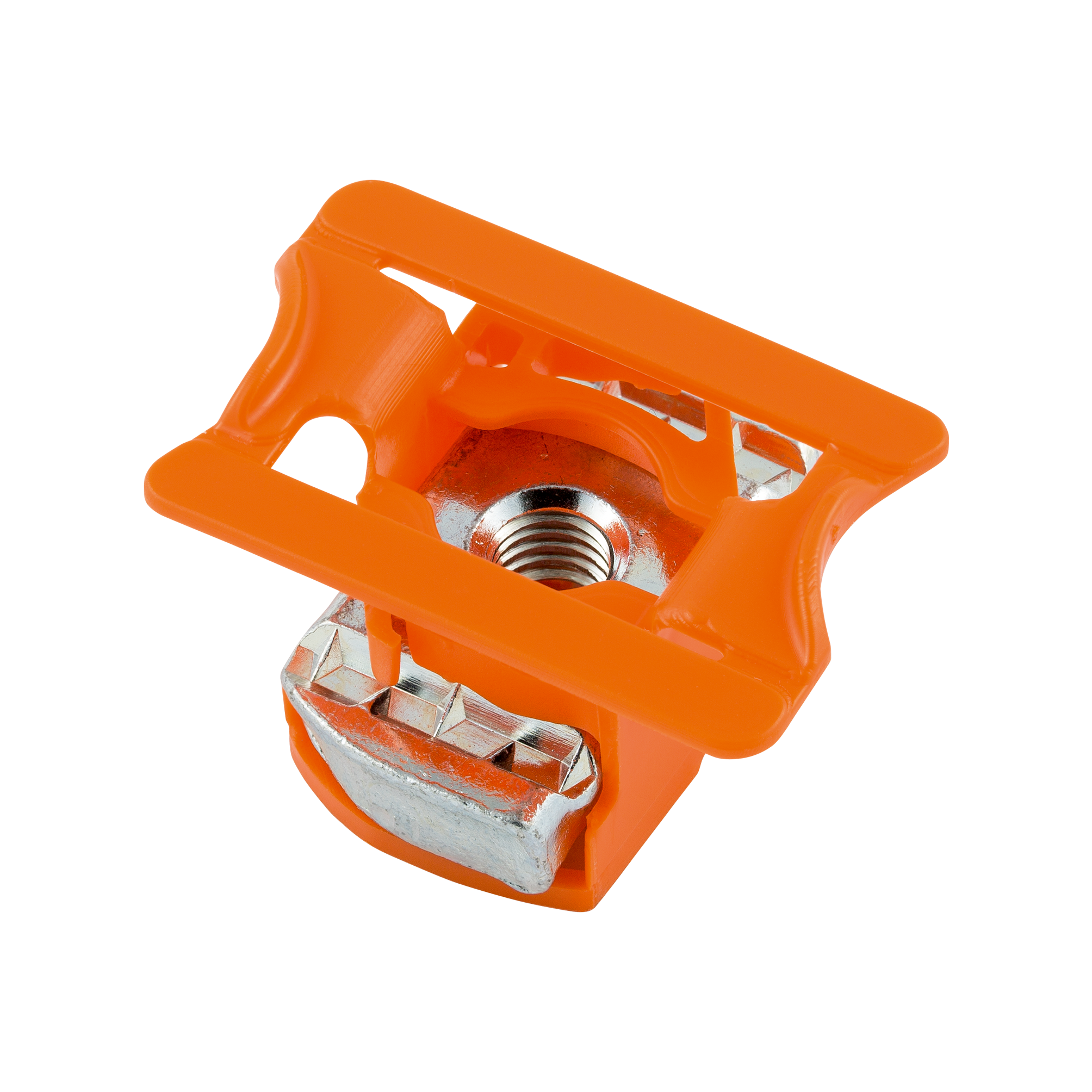

MPR-Slide nuts type S+

MPR-Slide nuts type S+

Display variants as list

Connecting thread:

M8 M10 M12

Surface:

galvanised hot-dip galvanised V4A

Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

For fast and safe fastening of flush mounting parts such as installation brackets in the rail slot of MPR-Support channels
Hot-dip galvanised and stainless steel - for indoor and outdoor use; galvanised - for indoor use

Advantages

Simply screw into the rail slot - done
Safely retained after screwing in, alignable until screw is tightened
No shifting even on vertical rail slots
Flush-mounted, tensionally locked connection of accessories to the MPR-Support channels

Support channels: for MPR-Profiles
Product type: Quick-mounting system type S+
Surface: galvanised | hot-dip galvanised | V4A

Weitere technische Details finden Sie im Datenblatt.

MPR-Slide nuts type S+, hot-dip galvanised

MPR-Slide nuts type S+, stainless steel

MPR-Slide nuts type S+, galvanised

	Product number	Connecting thread	Surface	Action
	165674	M8	galvanised	Pieces
	165673	M10	galvanised	Pieces
	165672	M12	galvanised	Pieces
	166313	M8	V4A	Pieces
	166314	M10	V4A	Pieces
	166310	M8	hot-dip galvanised	Pieces
	166311	M10	hot-dip galvanised	Pieces
	166312	M12	hot-dip galvanised	Pieces
