MPR-Support channels 41/62/2.5 | 6000 mm | hot-dip galvanised

MPR-Support channels

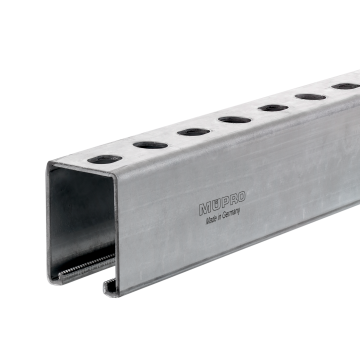

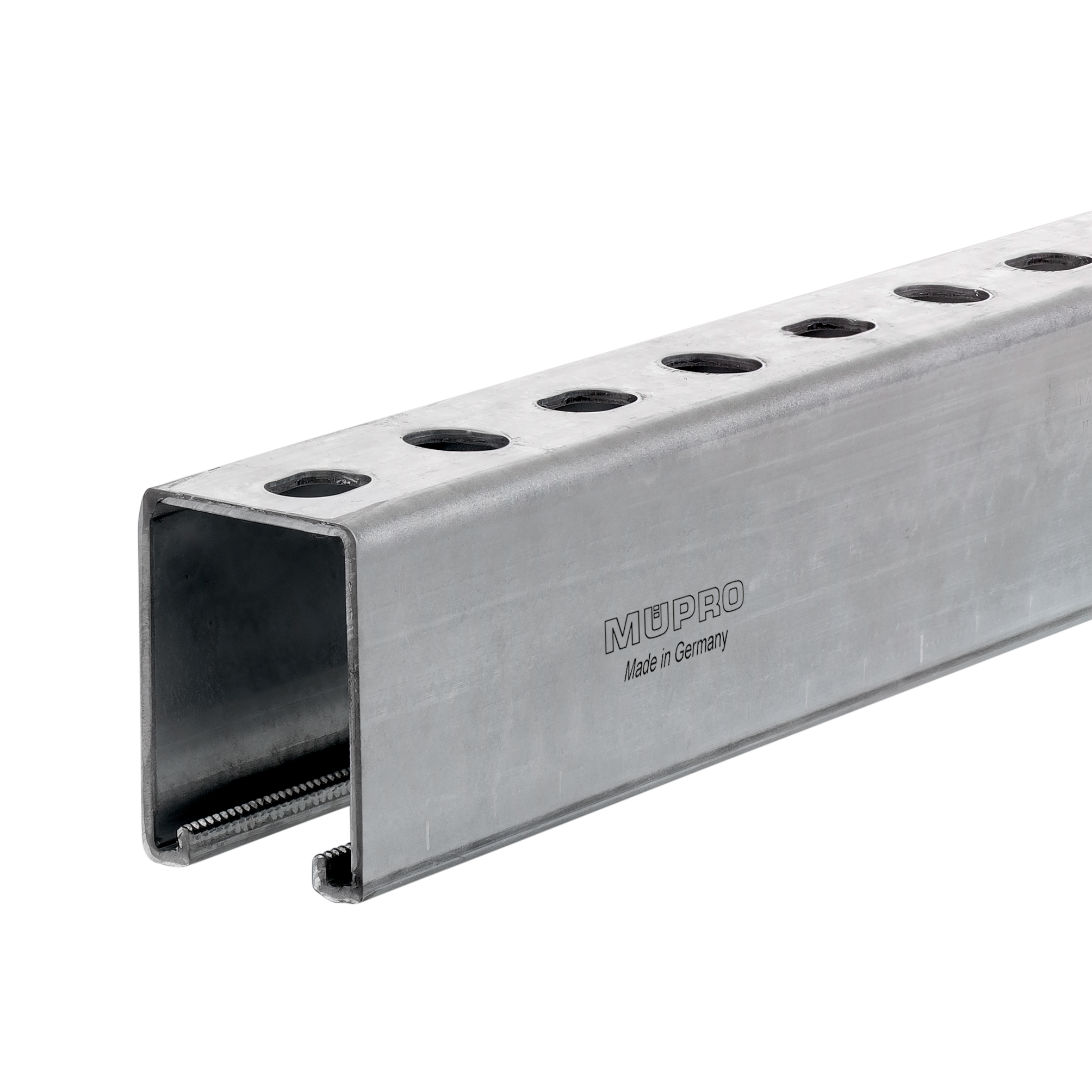

MPR-Support channel 41/62/2.5, length: 6,000 mm, hot-dip galvanised

Display variants as list
Reset selection
Art.no.: 154184

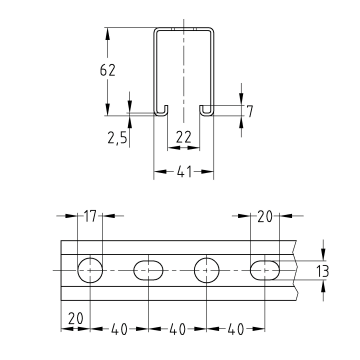

Profile: 41/62/2.5
Length: 6000 mm
Surface: hot-dip galvanised
Sales unit: 1 Pieces
Weight/item: 20.280 kg
Pieces

Field of application

  • Ideal for pipe installation as support structure as well as for air ducts in dry interiors
  • Variety of mounting options for pre-wall installations and shelves in combination with extensive range of system components

Advantages

  • Fast and efficient attachment of piping and pipe routes
  • High bending stiffness due to the cross-section design
  • Scale marks sideways and/or on the side with the slot simplify the alignment of the attachment elements during installation and facilitate the measuring and cutting to length of the section on site
  • For secure fixing that is adjustable laterally and vertically
  • For setting up structures with correctly measured static loads by means of diverse connection components
  • Meshing into the channel slot for positive-fit attachment of add-on parts
  • Clean-cut appearance by the use of MPR-protection caps
Basic data text
MPR-Support channel 41/62/2.5, length: 6,000 mm, hot-dip galvanised
Support channel systems
for MPR-Profiles
Product type
Support channels
Profile
41/62/2.5
Material
Steel
Surface
hot-dip galvanised
eCl@ss 7.1
23-36-01-90
Length
6,000 mm
eCl@ss 11.1
23-36-01-90
Customs tariff number
72166110
Further technical details can be found in the data sheet.
