MPR-VARIO joint type S+

MPR-VARIO joint type S+

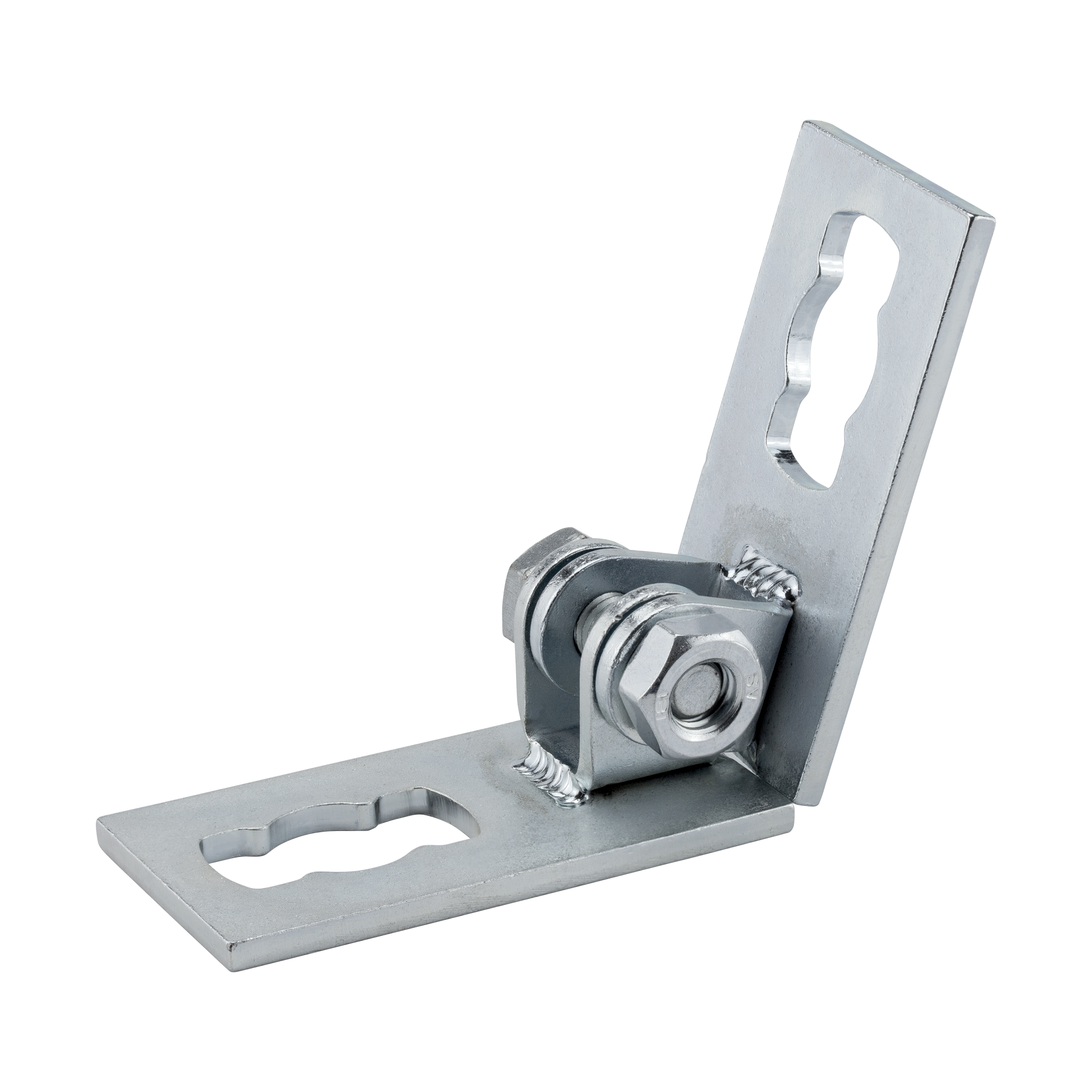

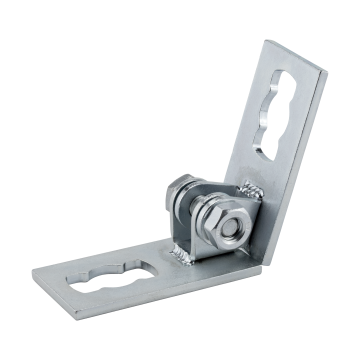

MPR-VARIO joint for channel support fitting, type S+ for profiles 41/21-41/124, galvanised

Art.no.: 165819
Weight/item: 0.253 kg
Pieces

Field of application

  • Flexible use for connection of MPR-Support channels, where different angle settings are required, such as for supports on brackets, etc.
  • For indoor use

Advantages

  • Pivot angle from 0° to 100° for fast and flexible adaptation to a wide variety of attachment situations - saves time and costs at the construction site
  • Cost savings can be realized in the area of stockkeeping, as a variety of support solutions can be realized with only one item
  • Stable design of the joint for optimal transmission of force
  • Fast and simple installation using connection locks type S+
Basic data text
MPR-VARIO joint for channel support fitting, type S+ for profiles 41/21-41/124, galvanised
Support channels
for MPR-Profiles
Product type
Quick-mounting system type S+
For profiles
41/21-41/124
Material
Steel
Surface
galvanised
DNV approval
Yes
eCl@ss 7.1
23-15-92-90
eCl@ss 11.1
23-36-02-90
Tightening torque
40 Nm

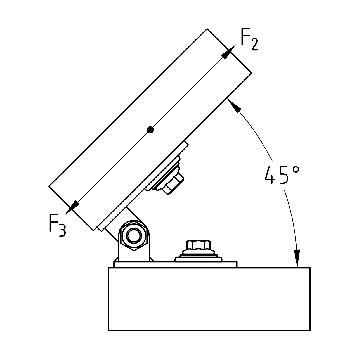

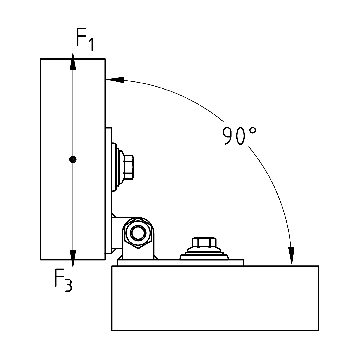

Permissible load F1
750 N
Permissible load F2
500 N
Permissible load F2
4,000 N
Customs tariff number
73269060
Weitere technische Details finden Sie im Datenblatt.
