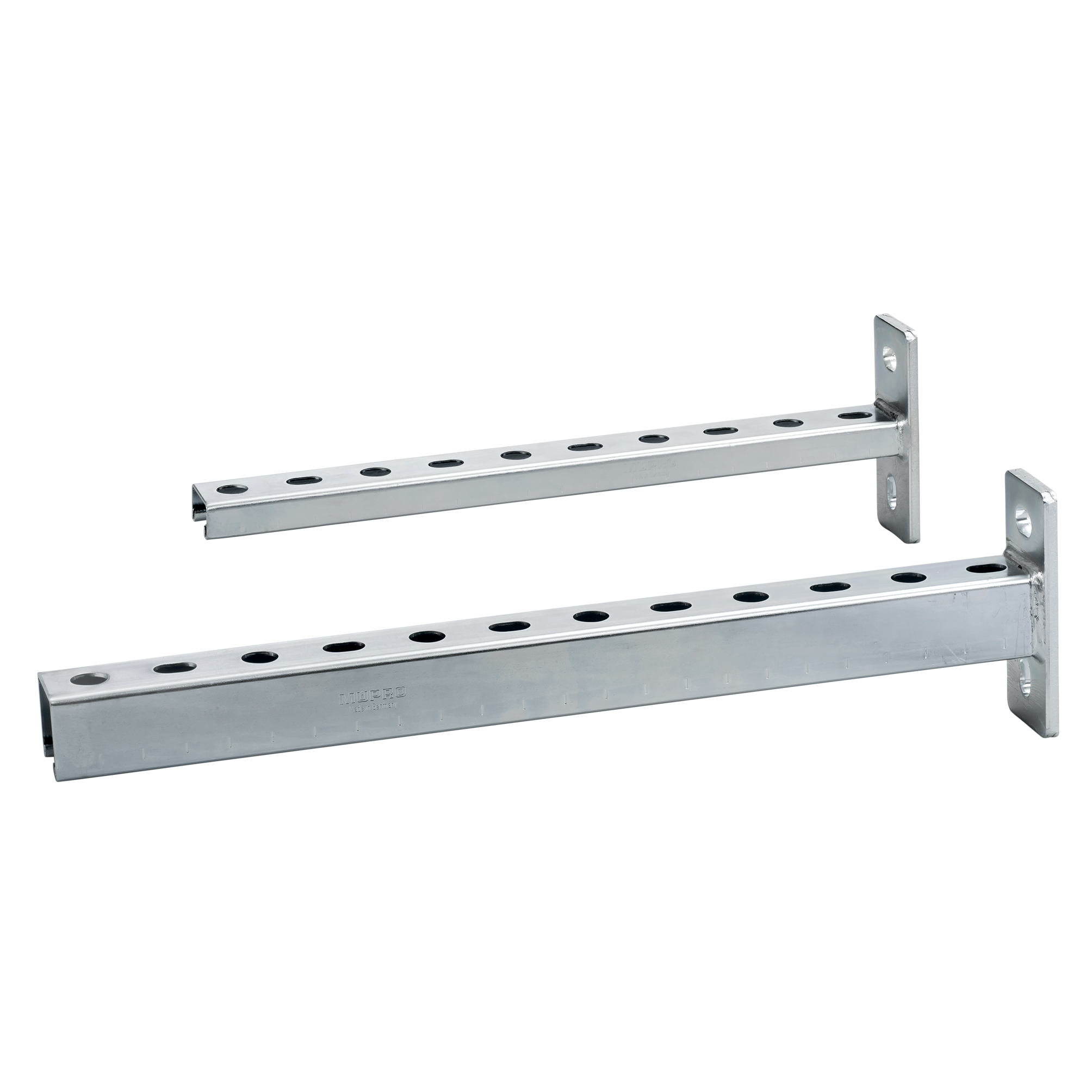

MPR-Wall hanger brackets

Display variants as list

Profile:

41/21/2.0 41/41/2.0 41/41/2.5 BV 41/62/2.5 BV 41/82/2.5 H

Length L [mm]:

150 160 240 300 320 400 450 480 560 600 640 720 800 1,000 1,040

Surface:

galvanised hot-dip galvanised V4A

Field of application

Ideal as cantilever support structure of multisection pipeways
Applicable as cantilever bracket for air ducts and cable trays
Applicable in combination with saddle support and channel support brackets as a cross-beam for pipe attachments in shafts and ducts
Solid wall bracket for valves and equipment
Selected sizes with VdS certificate for the installation of sprinkler systems

Advantages

The strong base plate ensures a high load carrying capacity
The vertical and horizontal holes in the base plate allow easy height adjustment of the bracket
Variety of lengths covers all construction requirements
Clean-cut appearance by the use of MPR-protection caps

Support channels:: for MPR-Profiles
Product type:: Wall hanger brackets
Surface:: galvanised | hot-dip galvanised | V4A

MPR-Wall hanger brackets, stainless steel

MPR-Wall hanger brackets, galvanised

MPR-Wall hanger brackets, hot-dip galvanised

Product number	Profile	Length L [mm]	Surface	Action
156763	41/21/2.0	160	galvanised	Pieces
156764	41/21/2.0	240	galvanised	Pieces
156765	41/21/2.0	320	galvanised	Pieces
156766	41/21/2.0	400	galvanised	Pieces
156767	41/41/2.0	160	galvanised	Pieces
156768	41/41/2.0	240	galvanised	Pieces
156769	41/41/2.0	320	galvanised	Pieces
156770	41/41/2.0	400	galvanised	Pieces
156771	41/41/2.0	480	galvanised	Pieces
156772	41/41/2.0	560	galvanised	Pieces
156773	41/41/2.0	640	galvanised	Pieces
156774	41/41/2.0	720	galvanised	Pieces
156775	41/41/2.0	800	galvanised	Pieces
156776	41/41/2.0	1,040	galvanised	Pieces
166150	41/41/2.5 BV	150	galvanised	Pieces
166151	41/41/2.5 BV	300	galvanised	Pieces
166152	41/41/2.5 BV	450	galvanised	Pieces
166153	41/62/2.5 BV	450	galvanised	Pieces
166154	41/62/2.5 BV	600	galvanised	Pieces
166155	41/62/2.5 BV	800	galvanised	Pieces
166156	41/62/2.5 BV	1,000	galvanised	Pieces
154435	41/41/2.0	160	V4A	Pieces
154436	41/41/2.0	240	V4A	Pieces
154437	41/41/2.0	320	V4A	Pieces
154438	41/41/2.0	400	V4A	Pieces
154439	41/41/2.0	480	V4A	Pieces
154440	41/41/2.0	560	V4A	Pieces
154441	41/41/2.0	640	V4A	Pieces
154211	41/21/2.0	160	hot-dip galvanised	Pieces
154212	41/21/2.0	240	hot-dip galvanised	Pieces
154213	41/21/2.0	320	hot-dip galvanised	Pieces
154214	41/21/2.0	400	hot-dip galvanised	Pieces
154215	41/41/2.0	160	hot-dip galvanised	Pieces
154216	41/41/2.0	240	hot-dip galvanised	Pieces
154217	41/41/2.0	320	hot-dip galvanised	Pieces
154218	41/41/2.0	400	hot-dip galvanised	Pieces
154219	41/41/2.0	480	hot-dip galvanised	Pieces
154220	41/41/2.0	560	hot-dip galvanised	Pieces
154221	41/41/2.0	640	hot-dip galvanised	Pieces
154222	41/41/2.0	720	hot-dip galvanised	Pieces
154223	41/41/2.0	800	hot-dip galvanised	Pieces
154224	41/41/2.0	1,040	hot-dip galvanised	Pieces
179174	41/82/2.5 H	560	hot-dip galvanised	Pieces
179175	41/82/2.5 H	800	hot-dip galvanised	Pieces
179176	41/82/2.5 H	1,040	hot-dip galvanised	Pieces
