119 / 135

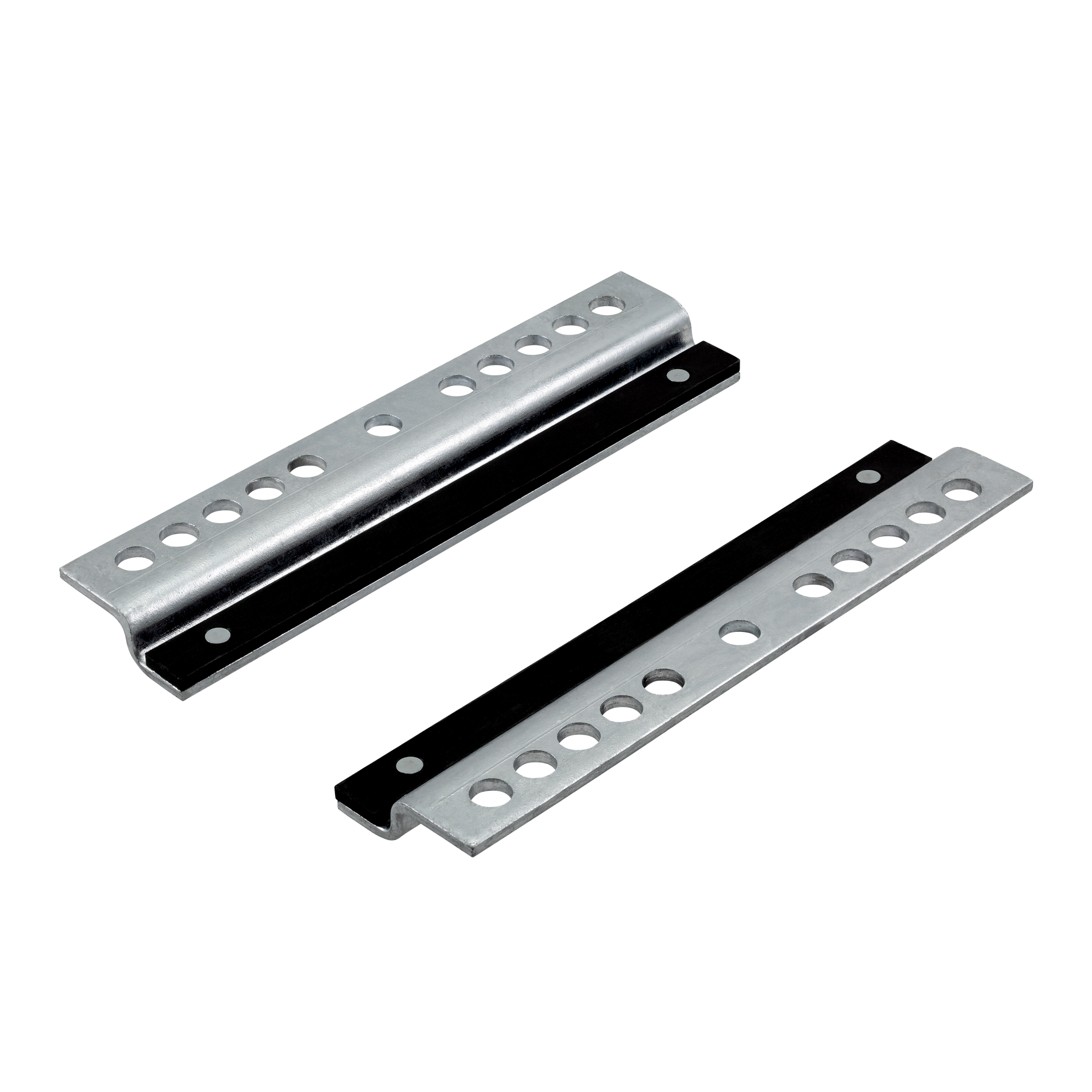

MPT-Guide type FGH Q50-2.5, Q80-2.0, Q100-2.5, Q100-3.5, Q150-2.5

MPT-Guide type FGH

Cramping sets with sliding plate PA, for MPT-profiles Q50 / Q80 / Q100 / Q150, hot-dip galvanised

Art.no.: 168856
Sales unit: 10 Set
Weight/item: 1.626 kg
Set

Field of application

  • For fastening suspended MÜPRO pipe slides below subconstructions of MPT-Support profiles
  • Suitable for guides with lift lock for installing suspended pipe slides
  • Hot-dip galvanised version for indoor and outdoor applications
  • Applicable for pipe slides with a base plate thickness up to 15 mm

Advantages

  • Guide angle set for simple installation of pipe slides on MPT-Profiles with or without slider to reduce reaction forces
Basic data text:
Cramping sets with sliding plate PA, for MPT-profiles Q50 / Q80 / Q100 / Q150, hot-dip galvanised
Support channels:
for MPT-Profiles
Type:
Type FGH, with slide plate
Product type:
Connecting parts
For thread:
M12
For profiles:
Q50-2.5, Q80-2.0, Q100-2.5, Q100-3.5, Q150-2.5
Material:
Steel
Surface:
hot-dip galvanised
eCl@ss 11.1:
23-35-01-05
eCl@ss 7.1:
23-35-01-90

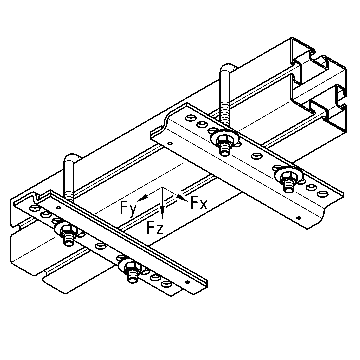

Loading Fx:
-
Loading Fy:
± 3 kN
Loading Fz:
+ 8 kN
Customs tariff number:
73269060
