MPT-Support profile Q100 with 3 slots

MPT-Support profile Q-100 2.5 mm, length: 6,000 mm, with 3 slots, hot-dip galvanised

Art.no.: 142547

Sales unit:	1 Pieces
Weight/item:	64.800 kg

Your price:

Pieces

Field of application

For support structures used in heavy-duty building technology and on industrial and plant building sites
Additional mounting slot increases connection possibilities, for example for 3D fixtures

Advantages

For construction of safe structures due to the high load-bearing capacity of the profile
Saves time and costs due to functional accessories that are matched to the support profile
High corrosion protection due to standardised hot-dip galvanising ensures flexible implementation outdoors and indoors
Clean-cut appearance by the use of MPT-protection caps

Basic data text: MPT-Support profile Q-100 2.5 mm, length: 6,000 mm, with 3 slots, hot-dip galvanised
Support channels: for MPT-Profiles
Product type: Support channels
Profile: Q100-2.5 3-slots
Material: Steel
Surface: hot-dip galvanised
eCl@ss 7.1: 23-36-01-90
eCl@ss 11.1: 23-36-01-90
Thickness s: 2.5 mm
Customs tariff number: 72166110

Weitere technische Details finden Sie im Datenblatt.

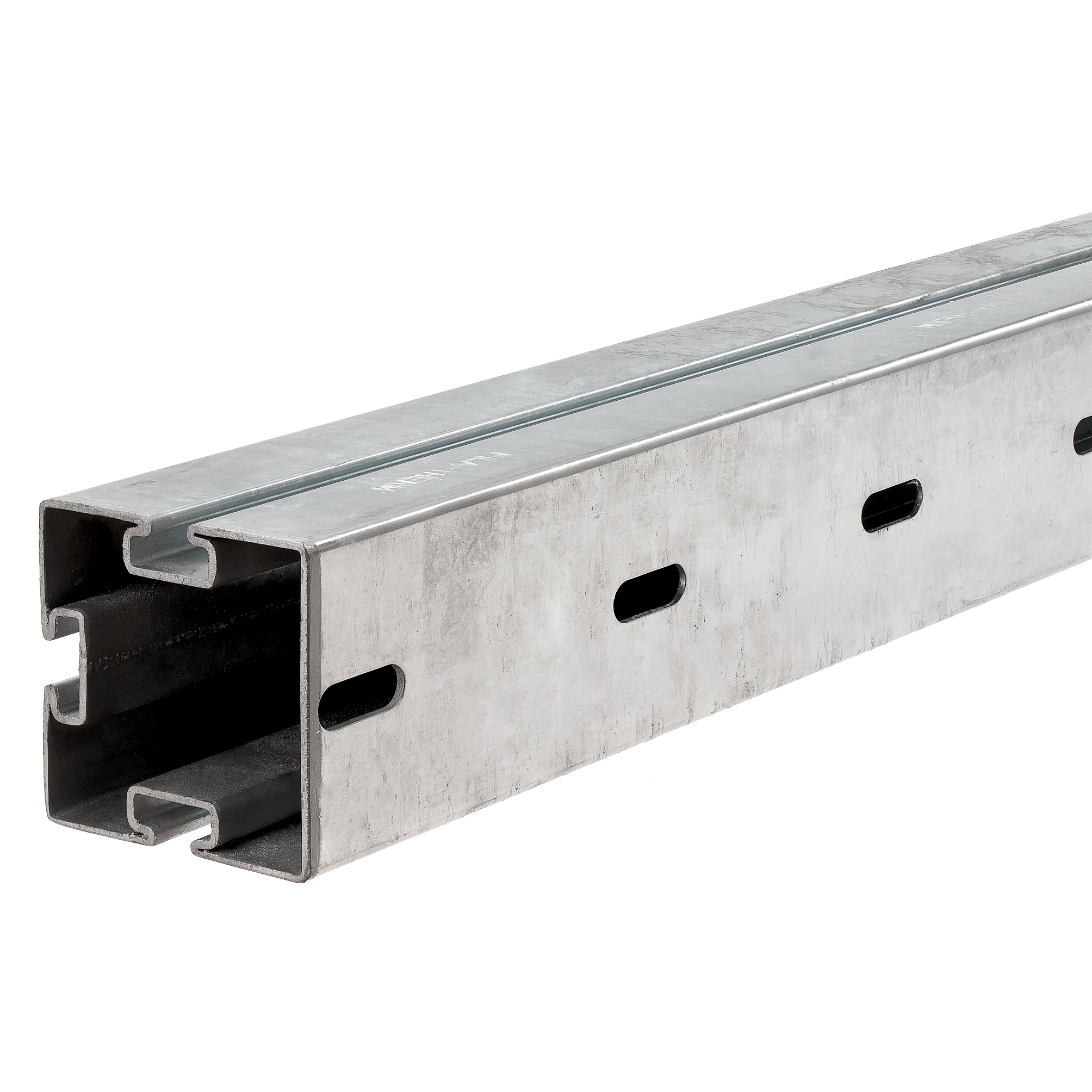

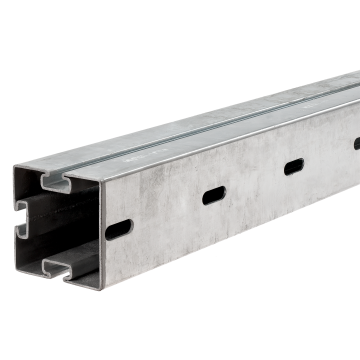

MPT-Support profile Q100 with 3 slots, hot-dip galvanised
