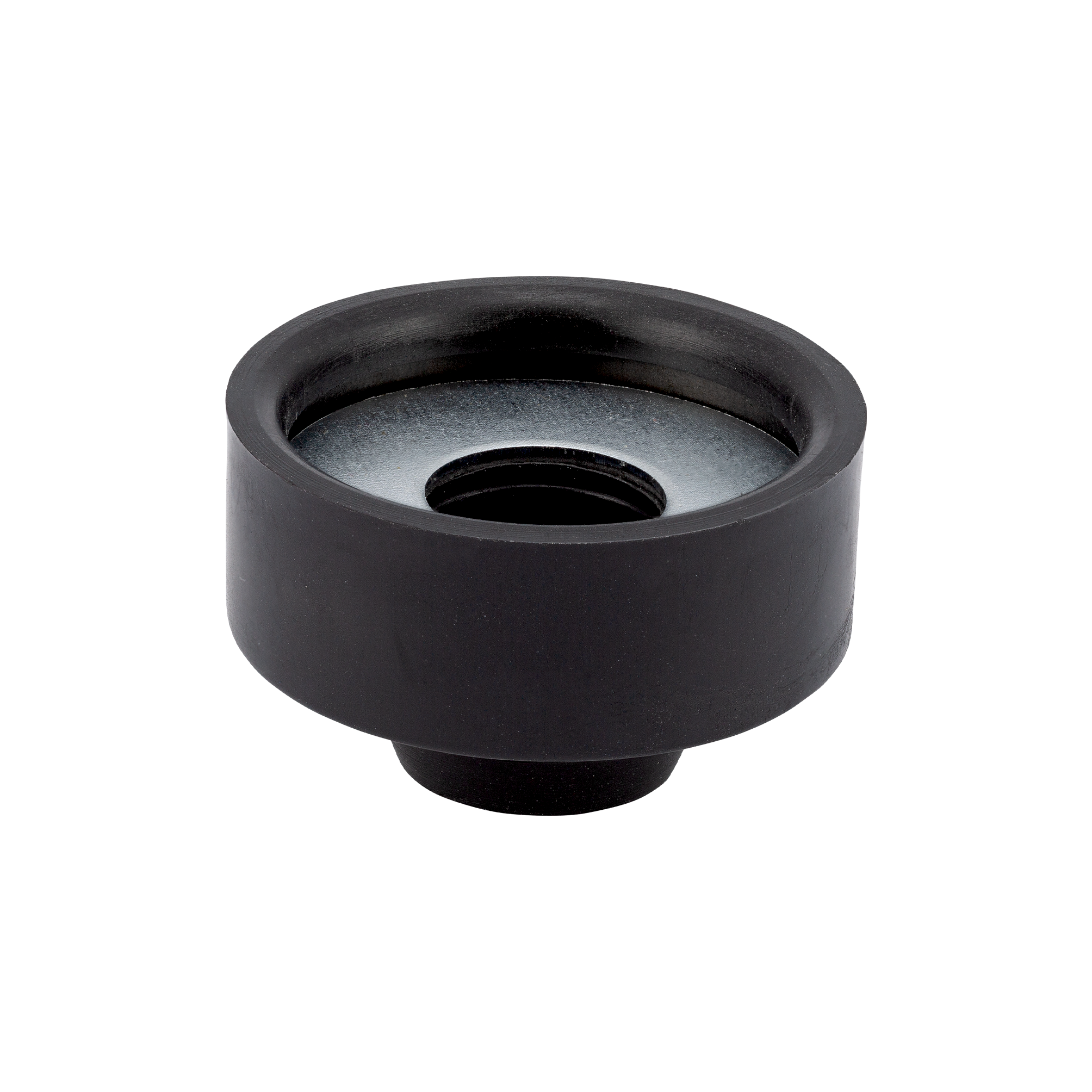

Spacer M8/M10, galvanised

Art.no.: 175723
Sales unit: 100 Pieces
Weight/item: 0.010 kg
Pieces

Field of application

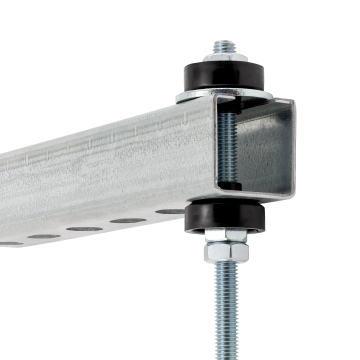

  • For decoupled attachment of air ducts in connection with support channels
  • Decoupling of frame constructions

Advantages

  • Easy and quick installation due to the pre-installed washer in the insulation part
  • Protective grommet to prevent contact between the screw or threaded rod and the mounted object
Basic data text
Spacer M8/M10, galvanised
Connecting thread
M8/M10
eCl@ss 7.1
25-02-04-12
eCl@ss 11.1
23-18-90-90
Temperature range
-30 °C to +60 °C
Customs tariff number
40169991
Weitere technische Details finden Sie im Datenblatt.
