MPC-Wall hanger supports

with vibration control, hot-dip galvanised

Display variants as list

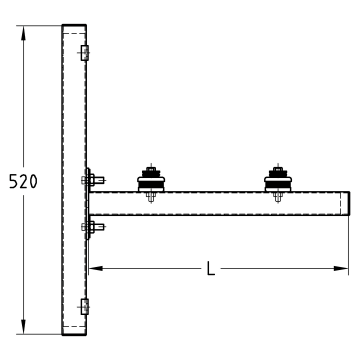

Length L [mm]:

480 560 640

Field of application

For the vibration dampened attachment of equipment such as ventilation and air conditioning devices, pumps, household water tanks, etc. on walls

Advantages

MPC-support channels cut-to length and with holes on the rear side including MPC-protection caps
Various bracket lengths available (depending on device type)
Simple height adjustment of the brackets due to sliding MPC-Hammer head bolts
Variable adjustment of the mounting spaces on the bracket due to MPC-Rail nuts
Average vibration reduction of 17 dB(A) due to DÄMMGULAST® Resilient pads

Support channels:: for MPC-Profiles
Product type:: Wall hanger brackets
Profile:: 38/40/2.0
Material:: Steel
Surface:: hot-dip galvanised
eCl@ss 11.1:: 23-15-25-90
Vibration control tested:: Yes
Scope of supply:: Complete kit consists of: 2 MPC-Support channels 38/40, length 520 mm, 2 MPC-Wall hanger brackets 38/40, 4 DÄMMGULAST® Resilient pads 43 x 11 mm, 6 MPC-Protection caps for profile 38/40, 4 MPC-Hammer head bolts M10/30, 4 DÄMMGULAST® Washers 8.5 x 28 mm, 4
