MPT-Base plate Q50-2.5, Q80-2.0, Q100-2.5, Q100-3.5, Q150-2.5

MPT-Base plate

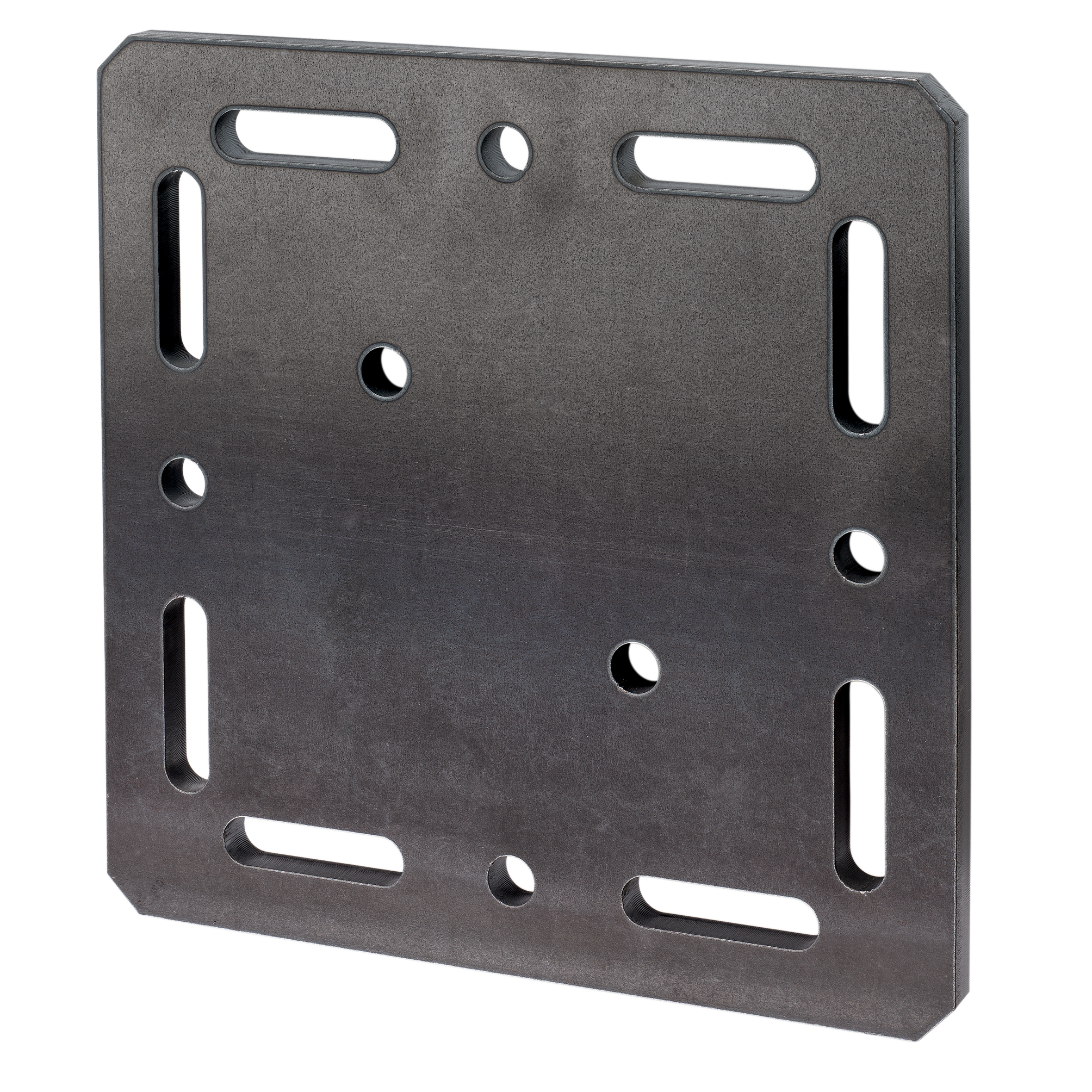

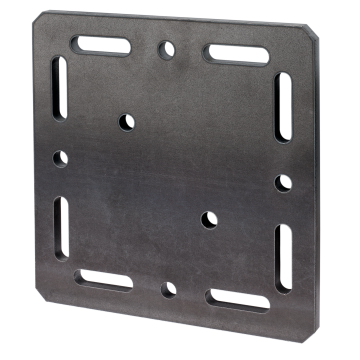

MPT-Base plate, 240 x 240 x 12 mm, for MPT-Support profiles Q50-Q150, untreated

Art.no.: 131840
Sales unit: 1 Pieces
Weight/item: 4.950 kg
Pieces

Field of application

  • Stable base and connection plate for welding onto MPT-Support profiles for producing individual consoles and component connections

Advantages

  • Raw version without surface treatment for optimal results when welded
  • Perforation that matches the MPTSupport system ensures system compatibility
  • Cost-effective manufacturing of consoles with individual projection lengths
Basic data text:
MPT-Base plate, 240 x 240 x 12 mm, for MPT-Support profiles Q50-Q150, untreated
Support channels:
for MPT-Profiles
Product type:
Connecting parts
For profiles:
Q50-2.5, Q80-2.0, Q100-2.5, Q100-3.5, Q150-2.5
Material:
Steel
Surface:
untreated
eCl@ss 11.1:
23-36-02-90
eCl@ss 7.1:
23-36-02-90

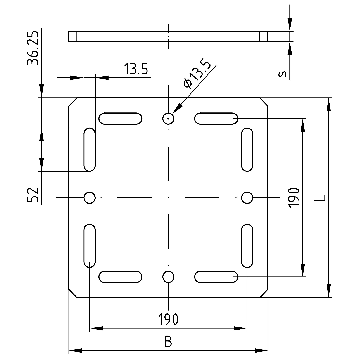

Dimension B:
240 mm
Thickness s:
12 mm
Customs tariff number:
73269060
