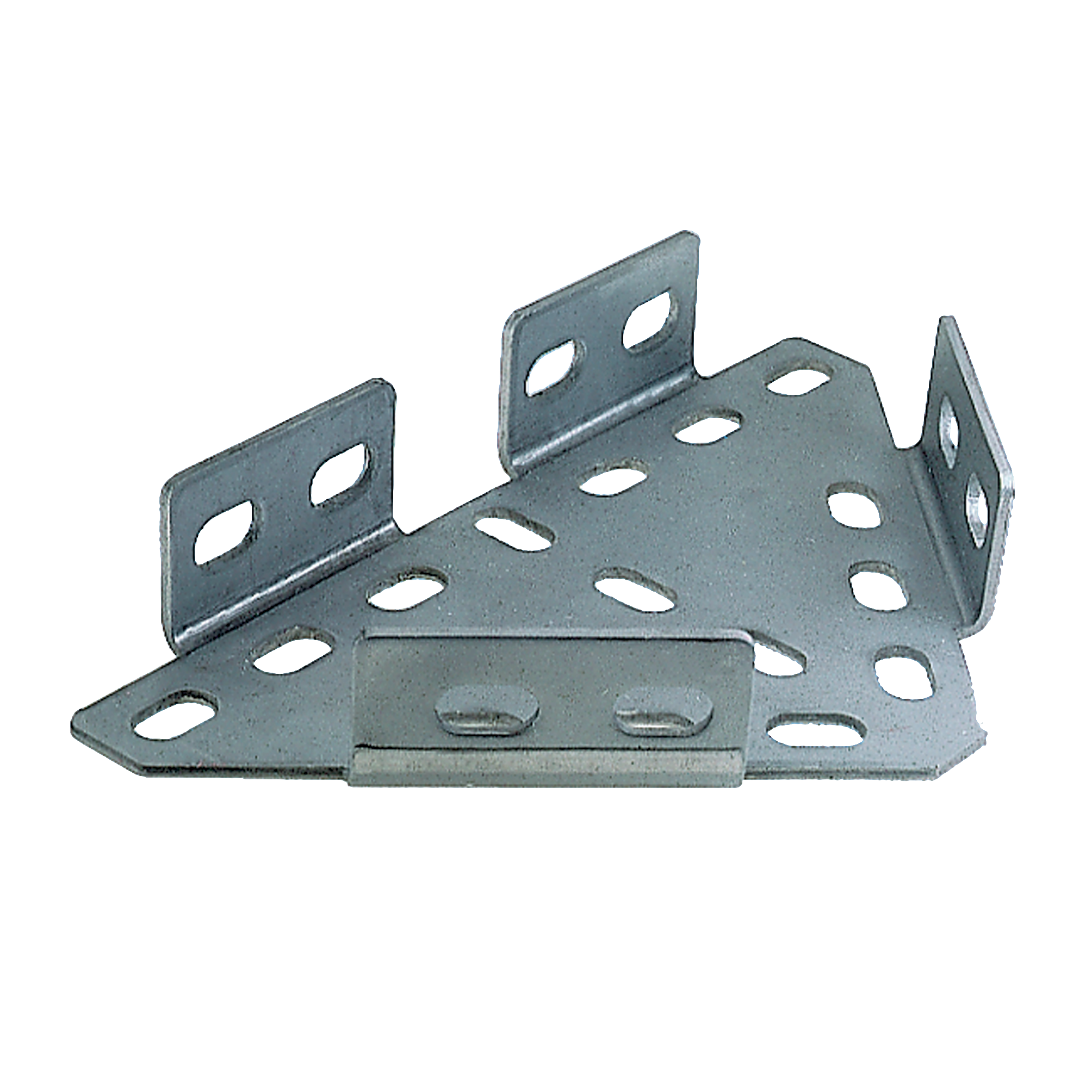

Construction brackets 280 x 164 x 4 mm | V2A

Construction brackets

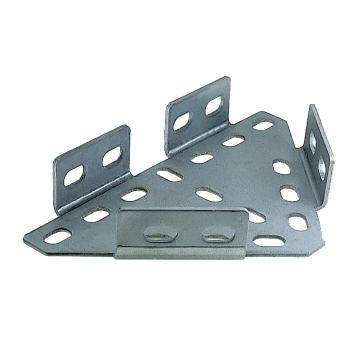

V2A MPC/MPR-Construction bracket type 2, 280 x 164 x 4 mm for profiles 38/40-40/60, 41/21-41/124

Art.no.: 113595
Sales unit: 1 Pieces
Weight/item: 1.200 kg
Pieces

Field of application

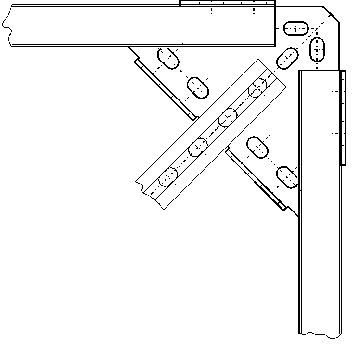

  • Ideal connecting element for the construction of cross-beams, frames and shelving systems

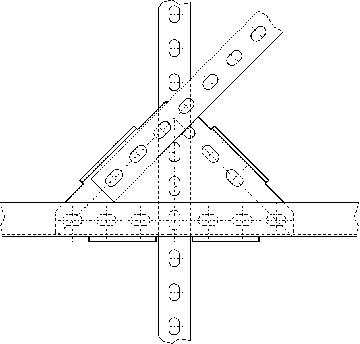

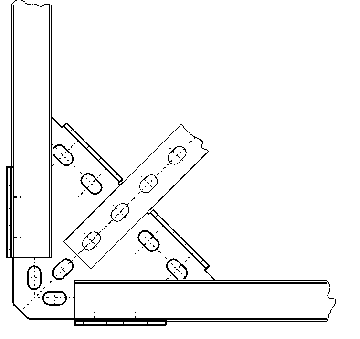

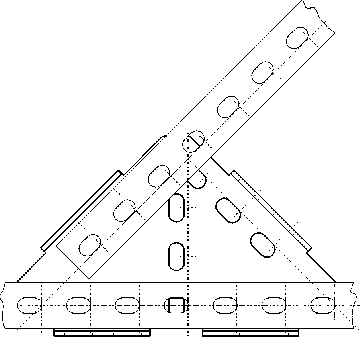

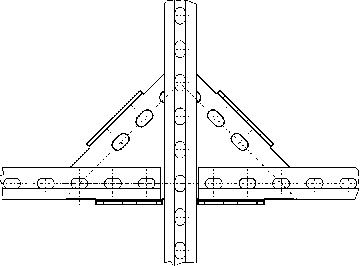

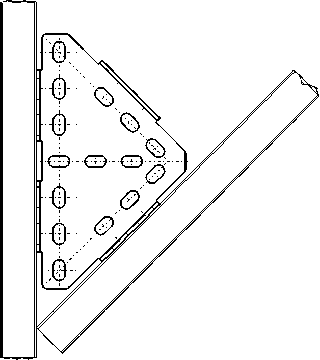

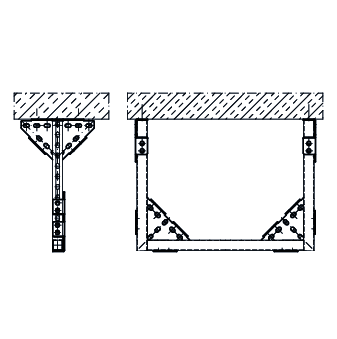

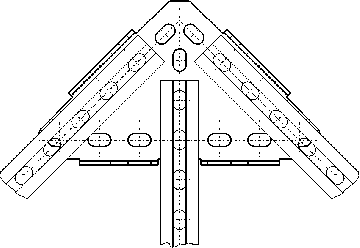

  • For direct mounting on ceilings, walls and floors or for installation with MPC- and MPR-Support channels used as: Angular support brackets, Angular load-bearing bracket, Basic prop, Angle bracket, Cross connection, Transverse support angle, Support angle, Connection element, Angular bracket

Advantages

  • Great variety of mounting possibilities when used with MPC- and MPR-Support channels
  • Provides solid joint and angle connections
  • Any arrangement of channel opening possible
Basic data text:
V2A MPC/MPR-Construction bracket type 2, 280 x 164 x 4 mm for profiles 38/40-40/60, 41/21-41/124
Support channels:
for MPC- and MPR-Profiles
Type:
2
Design:
280 x 164 x 4 mm
Product type:
Connecting parts
For profiles:
38/40, 40/60, 41/21-41/124
Material:
V2A
Surface:
V2A
eCl@ss 7.1:
23-36-02-90
eCl@ss 11.1:
23-36-02-90
Customs tariff number:
73089098
