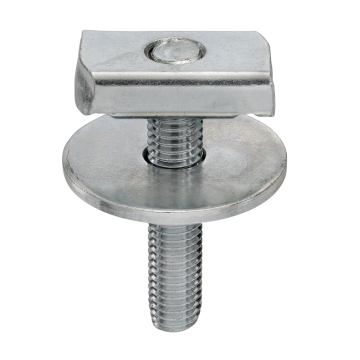

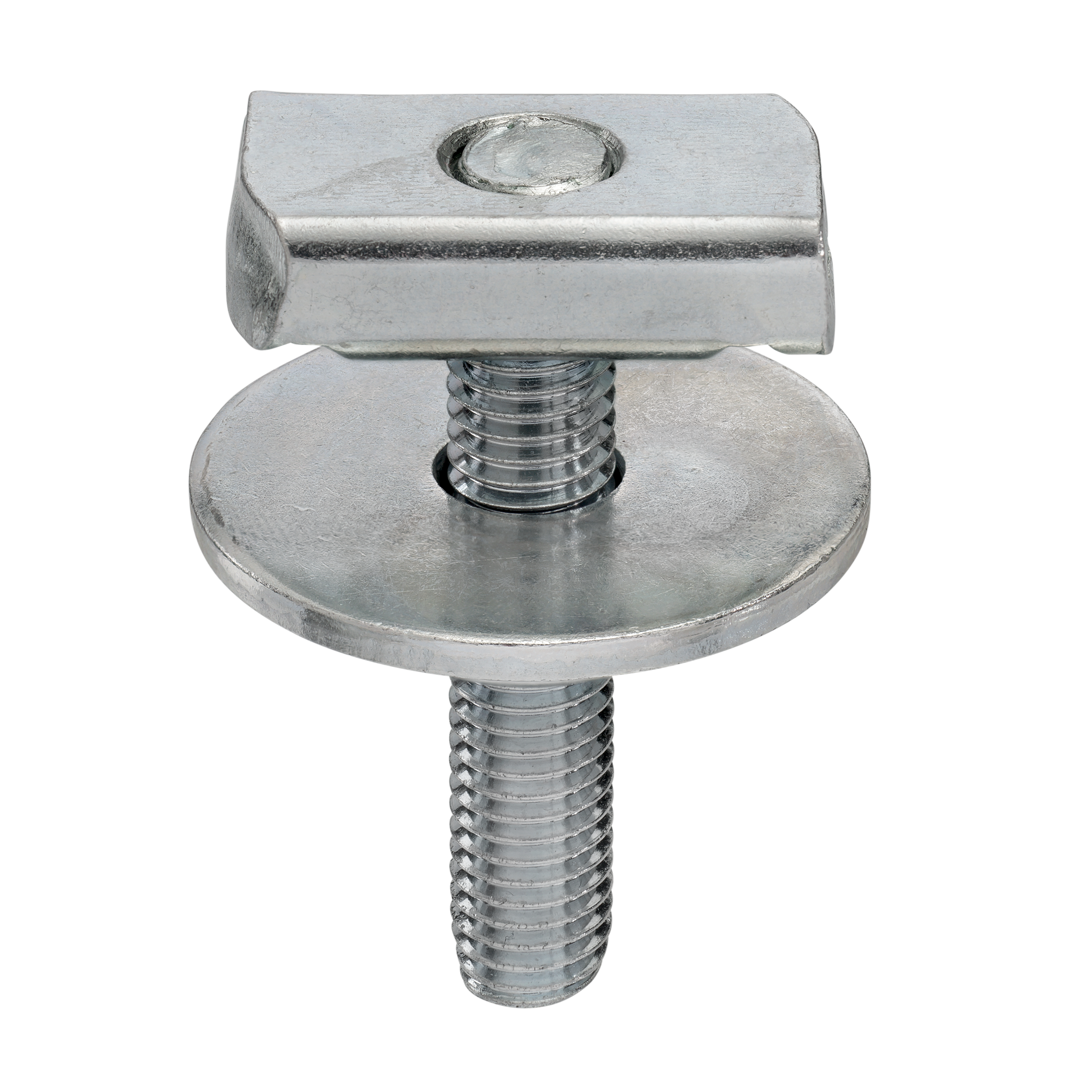

MPR-Hammer head fasteners

Display variants as list

Connecting thread:

M8 M10 M12 M16

Length:

35 mm 40 mm 50 mm 55 mm 60 mm 65 mm 80 mm 100 mm

Surface:

galvanised V4A zinc flake coated

Wählen Sie einzelne Varianten für weitere Informationen, Bilder und Dokumente.

Field of application

Advantages

Easy and fast assembly in the rail slot
Lateral adjustment at any time, allows perfect alignment of the pipeline after installation
Various lengths and thread diameters can be combined within the same channel
Interlocking threaded plate for secure positive connection in the rail slot of the MPR-Support channels

MPR-Hammer head fasteners

Product number	Connecting thread	Length	Surface	Action
151057	M8	35 mm	galvanised	Pieces
151058	M8	40 mm	galvanised	Pieces
151059	M8	50 mm	galvanised	Pieces
151064	M10	55 mm	galvanised	Pieces
151065	M10	60 mm	galvanised	Pieces
151060	M8	80 mm	galvanised	Pieces
151061	M8	100 mm	galvanised	Pieces
151062	M10	35 mm	galvanised	Pieces
151063	M10	40 mm	galvanised	Pieces
151066	M10	80 mm	galvanised	Pieces
151067	M10	100 mm	galvanised	Pieces
151069	M12	40 mm	galvanised	Pieces
151070	M12	55 mm	galvanised	Pieces
151075	M16	100 mm	galvanised	Pieces
154413	M8	35 mm	V4A	Pieces
154415	M8	50 mm	V4A	Pieces
154418	M10	35 mm	V4A	Pieces
154424	M12	40 mm	V4A	Pieces
154193	M8	35 mm	zinc flake coated	Pieces
154194	M8	40 mm	zinc flake coated	Pieces
154195	M8	50 mm	zinc flake coated	Pieces
154196	M8	80 mm	zinc flake coated	Pieces
154197	M8	100 mm	zinc flake coated	Pieces
154198	M10	35 mm	zinc flake coated	Pieces
154199	M10	40 mm	zinc flake coated	Pieces
154200	M10	55 mm	zinc flake coated	Pieces
154201	M10	60 mm	zinc flake coated	Pieces
154202	M10	80 mm	zinc flake coated	Pieces
154203	M10	100 mm	zinc flake coated	Pieces
154204	M12	40 mm	zinc flake coated	Pieces
154205	M12	55 mm	zinc flake coated	Pieces
154206	M12	60 mm	zinc flake coated	Pieces
154207	M12	80 mm	zinc flake coated	Pieces
154208	M12	100 mm	zinc flake coated	Pieces
154209	M16	65 mm	zinc flake coated	Pieces
154210	M16	100 mm	zinc flake coated	Pieces
