Duct fixing angles

Duct fixing angles

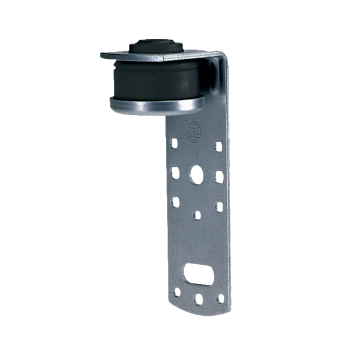

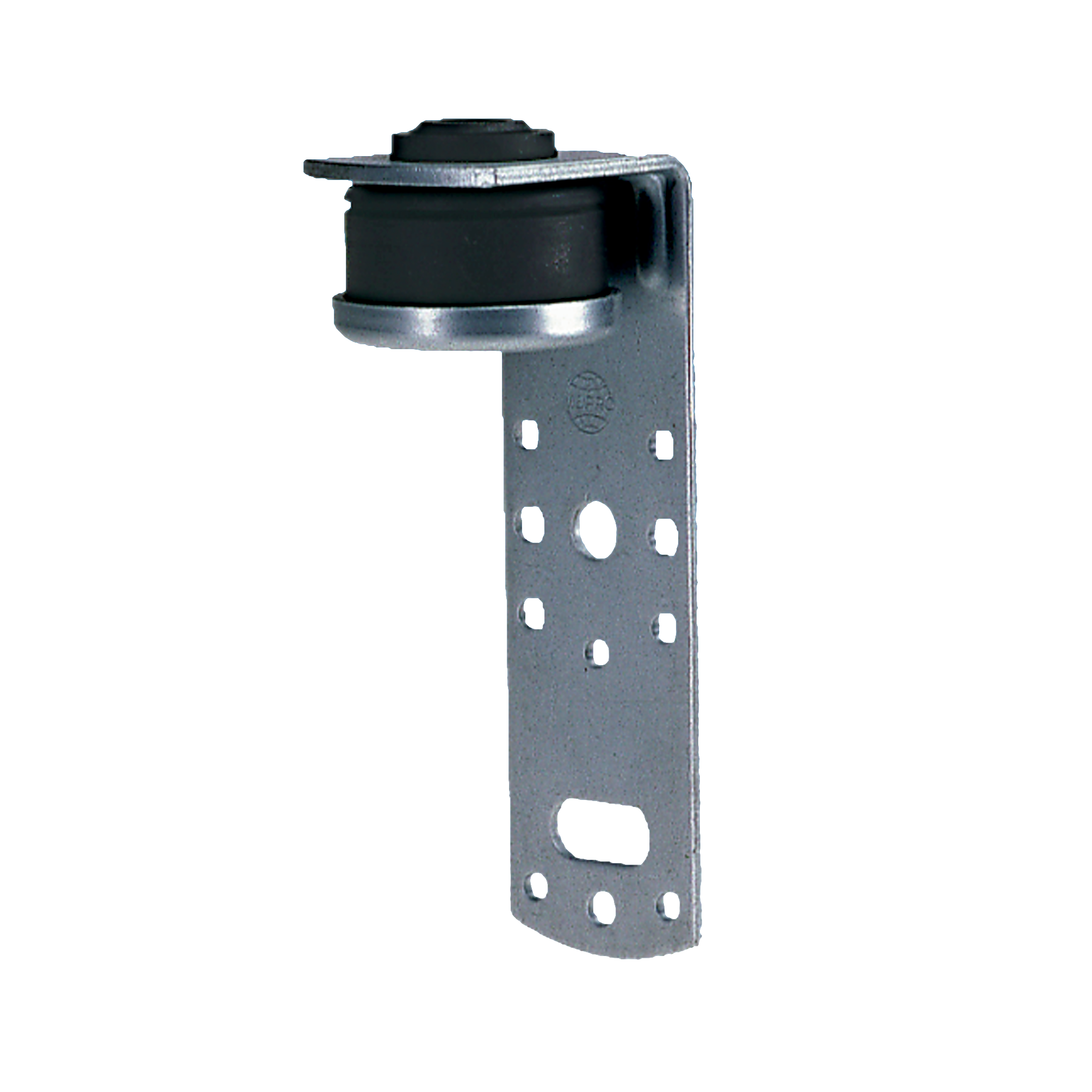

Duct fixing angle, type 2, hot-dip galvanised

Art.no.: 116642
Sales unit: 25 Pieces
Weight/item: 0.210 kg
Pieces

Field of application

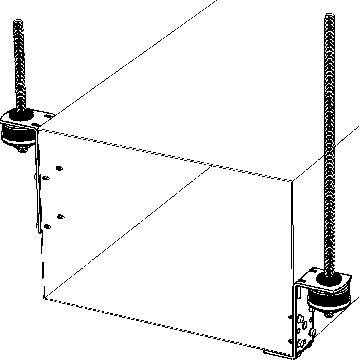

  • Easy to install suspension for air ducts

Advantages

  • Incorporated highly-elastic vibration-isolating element
  • Excellent alignment and height adjustment via the threaded rods
  • Design as angle and twin angle
  • Various attachment options to air duct with rivets, self-drilling screws or bolts up to M8 in the oblong hole
  • Direct attachment to air duct possible
  • Average vibration reduction of 17 dB(A)
Basic data text:
Duct fixing angle, type 2, hot-dip galvanised
Type:
Type II
Design:
with insulating part | Duct fixing angles
Product type:
Ventilation mounting suspensions
Material:
Steel
Surface:
hot-dip galvanised
eCl@ss 11.1:
22-41-15-90
eCl@ss 7.1:
22-41-15-90
Vibration control tested:
Yes
Max. recommended load:
800 N
Average vibration reduction:
17 dB(A)
Customs tariff number:
73269060
